Ubiquiti Amplifi Alien Mesh System, Wi-Fi 6, Touch Screen, AFi-ALN
Ubiquiti Amplifi Alien Mesh System, Wi-Fi 6, Touch Screen, AFi-ALN

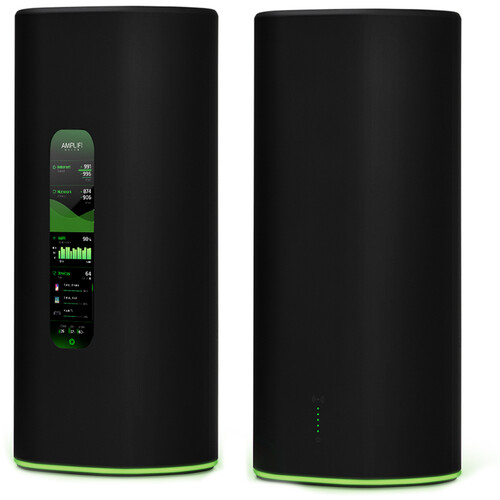

The Ubiquiti AFI-ALN is an Amplifi Alien Mesh System featuring Wi-Fi 6 technology. It includes one Alien mesh point and four gigabit Ethernet ports on the router. This system provides high-performance connectivity and features a touch screen display for easy management. It is backed by a 2-year Warranty.
For price and availability, click request quote
Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]
Short Description: The AmpliFi Alien Router and MeshPoint (AFi-ALN) provide a high-performance Wi-Fi 6 solution for extensive coverage and speed. Ideal for modern homes and offices, the system features advanced networking capabilities and easy setup.
Common Specs:
- Dimensions: Router: 110 x 110 x 250 mm; MeshPoint: 110 x 110 x 250 mm
- Weight: Router: 1.2 kg; MeshPoint: 1.1 kg
- Enclosure Material: Polycarbonate
- Processor: Quad-Core ARM® Cortex® A53s at 2.2 GHz
- Memory: 1GB DDR3L
- Networking Interface: Router: (1) GbE RJ45 WAN, (4) GbE RJ45 LAN; MeshPoint: (1) GbE RJ45 LAN
- Power Method: Universal AC input, 100-240V AC, 1A Max., 50/60 Hz
- Max. Power Consumption: Router: 35W; MeshPoint: 34W
- ESD/EMP Protection: Air/contact: ± 24kV
- Max. TX Power: 2.4 GHz: 23 dBm; 5 GHz: 19-20 dBm
- MIMO: 2.4 GHz: 4 x 4; 5 GHz: 4 x 4 (low band) / 8 x 8 (high band)
- Speeds: 2.4 GHz: 1150 Mbps; 5 GHz: 1700-4800 Mbps
- Antenna Gain: 2.4 GHz: 3 dBi; 5 GHz: 6 dBi
- Antenna: Internal dual-band metal stamp with 12 polarity
- Display: Router: 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color; MeshPoint: No display
- LED: Router/MeshPoint: Green ring
- Button: Factory reset
- Ambient Operating Temperature: -10 to 45° C
- Ambient Operating Humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- WiFi Standards: Up to WiFi 6
- WiFi Functions: MU-MIMO, OFDMA, TX-beamforming
- Wireless Security: WPA2
- VLAN: Yes
- Advanced QoS: Yes
- Guest Traffic Isolation: Yes
- Power Save: Yes
- Supported Data Rates: 802.11a/b/g/n/ac/ax
- Operating Frequency: 2.4 GHz, 5 GHz
