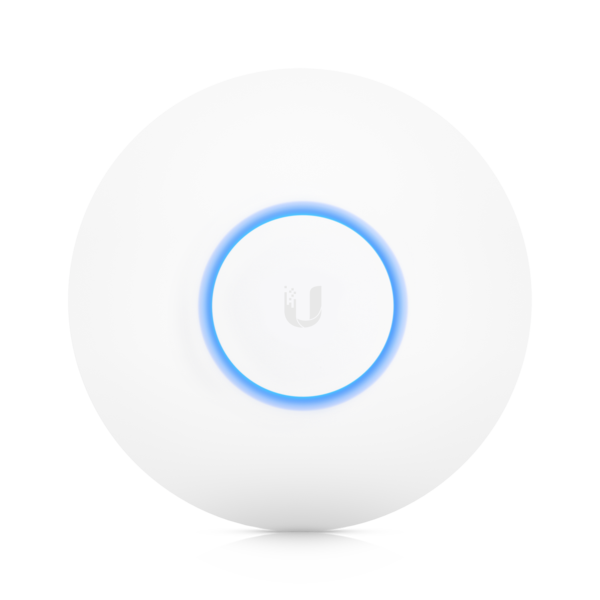

Ubiquiti UniFi AC Wave 2 Access Point, Indoor/Outdoor, 4x4 MIMO, 2.4GHz, 5GHz, 2533Mbps Total, 500+ Clients, UAP-AC-HD

Ubiquiti Ubiquiti UniFi AC Wave 2 Access Point, Indoor/Outdoor, 4x4 MIMO, 2.4GHz, 5GHz, 2533Mbps Total, 500+ Clients, UAP-AC-HD

Ubiquiti UniFi AC Wave 2 Access Point, Indoor/Outdoor, 4x4 MIMO, 2.4GHz, 5GHz, 2533Mbps Total, 500+ Clients, UAP-AC-HD

The Ubiquiti UAP-AC-HD is a high-density access point designed for indoor and outdoor use. It supports 802.11ac Wave 2 technology with 4x4 MIMO, offering speeds up to 800Mbps on 2.4GHz and 1733Mbps on 5GHz, for a total of 2533Mbps. With a client capacity of over 500, this access point ensures reliable performance and seamless connectivity. It is backed by a 2-year Warranty.

Product Code: UAP-AC-HD

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

Customers also bought

The UAP-AC-HD is a high-performance wireless access point designed for high-density environments. It offers dual-band MIMO technology and supports high data rates, making it ideal for business and enterprise applications.

Common Specifications

  • Dimensions: Ø220 x 48.1 mm
  • Weight: 700 g (without mount), 830 g (with mount)
  • Networking Interface: (2) GbE RJ45 ports
  • Power Method: PoE+
  • Max. Power Consumption: 17W
  • Max. TX Power: 25 dBm (2.4 GHz), 25 dBm (5 GHz)
  • MIMO: 4x4 (DL MU-MIMO)
  • Max. Data Rate: 800 Mbps (2.4 GHz), 1.7 Gbps (5 GHz)
  • Antenna Gain: 3 dBi (2.4 GHz), 4 dBi (5 GHz)
  • Mounting: Wall, ceiling
  • Operating Temperature: -10 to 70° C
  • Operating Humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC
  • WiFi Standards: 802.11 a/b/g/n/ac/ac-Wave2
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest Traffic Isolation: Supported
  • Power Save: Supported
  • Concurrent Clients: 500+
