Ubiquiti UniFi Dream Machine, All-in-one Network Solution, USG, UniFi OS Console, WiFi AP, Gigabit Switch, UDM
Ubiquiti UniFi Dream Machine, All-in-one Network Solution, USG, UniFi OS Console, WiFi AP, Gigabit Switch, UDM

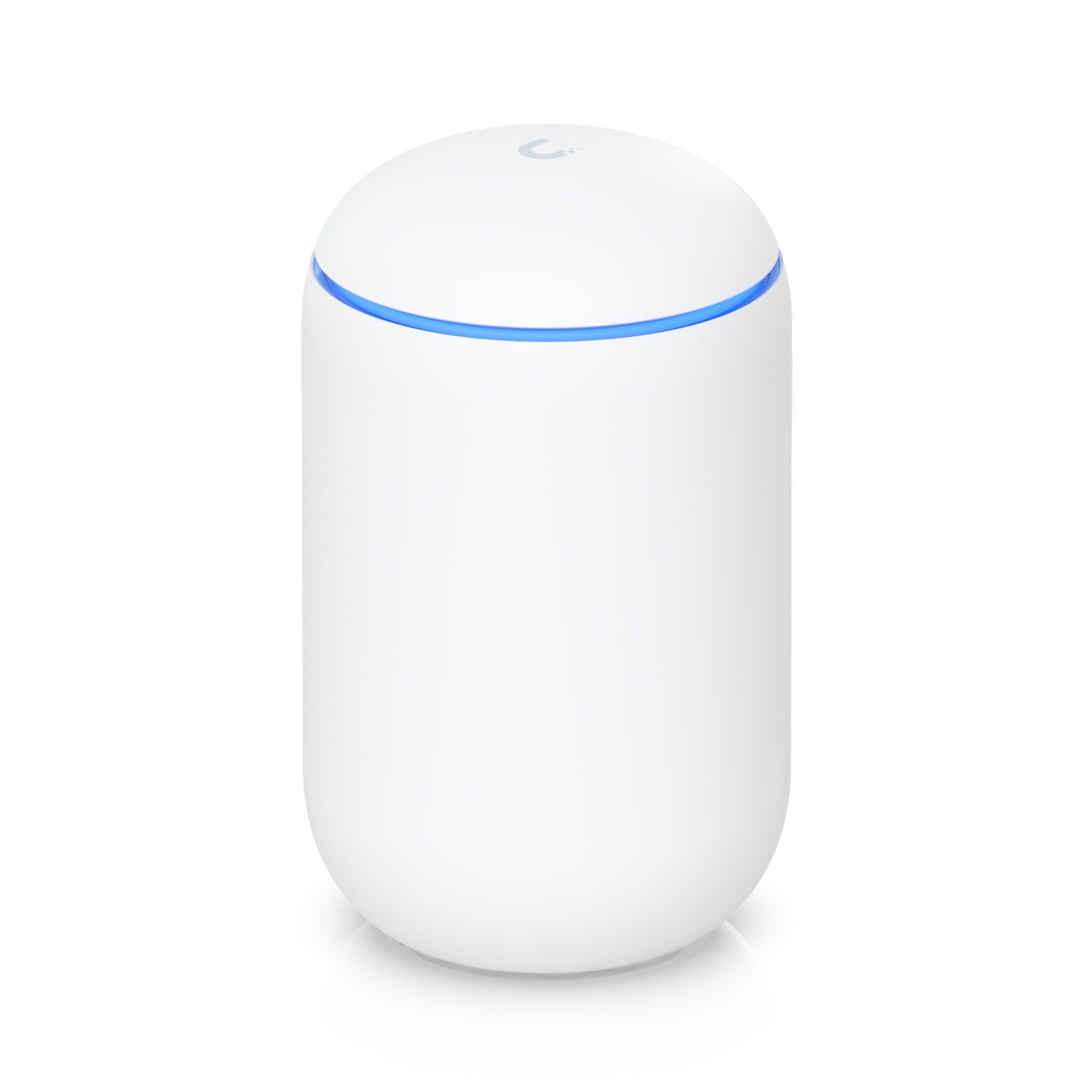

The Ubiquiti UniFi Dream Machine (UDM) is an all-in-one home/office network solution. It combines a USG, UniFi OS console, WiFi access point, and gigabit switch into a single device. This comprehensive solution ensures seamless network management and performance, backed by a 2-year Warranty.
For price and availability, click request quote
Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]
Short Description: The UniFi Dream Machine (UDM) combines a high-performance router, managed 4-port switch, and security gateway with advanced features like IDS/IPS, VPN, and advanced routing. Ideal for home and small office networks, it provides comprehensive network management and security in a compact form factor.
Common Specs:
- Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3")
- Weight: 1.1 kg (2.3 lb)
- Enclosure Material: Polycarbonate
- Processor: Quad-core Arm® Cortex® A57 at 1.7 GHz
- System Memory: 2 GB DDR RAM
- Networking Interface: LAN: (4) GbE RJ45 ports; WAN: (1) GbE RJ45 port
- Power Method: Universal AC input, 100—240V AC, 0.6A Max., 50/60 Hz
- Power Supply: AC/DC, internal, 50W
- Max. Power Consumption: 26W
- Max. TX Power: 2.4 GHz: 23 dBm; 5 GHz: 26 dBm
- MIMO: 2.4 GHz: 2 x 2; 5 GHz: 4 x 4
- Throughput Rate: 2.4 GHz: 300 Mbps; 5 GHz: 1.7 Gbps
- Antenna Gain: 2.4 GHz: 3 dBi; 5 GHz: 4.5 dBi
- Antenna: Internal, dual-band, quad-polarity
- Button: Factory Reset
- LEDs: White/Blue
- Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
- Ambient Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
