Ubiquiti UniFi XG BaseStation, 10 Gbps, Beam-Forming, IP67, UWB-XG

Ubiquiti Ubiquiti UniFi XG BaseStation, 10 Gbps, Beam-Forming, IP67, UWB-XG

Ubiquiti UniFi XG BaseStation, 10 Gbps, Beam-Forming, IP67, UWB-XG

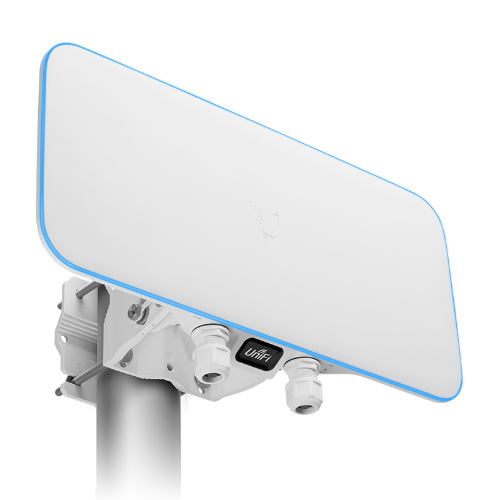

The Ubiquiti UWB-XG is a high-capacity BaseStation designed for up to 1,500 clients. It offers 10 Gbps speed and features beam-forming IP67 Wi-Fi technology. This BaseStation ensures reliable and high-performance connectivity, making it ideal for large-scale deployments. It is backed by a 2-year Warranty.

Product Code: UWB-XG

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

Customers also bought

The UWB-XG is a high-performance, tri-band wireless access point designed for dense environments. It supports 4x4 MIMO configuration and offers advanced features like beamforming and guest traffic isolation, making it suitable for both indoor and outdoor installations.

Common Specifications

  • Dimensions: 471.1 x 257.5 x 94.3 mm
  • Weight: 3.2 kg
  • Networking Interface: (1) GbE RJ45 port, (1) 1/10 GbE ICM Ethernet port
  • Power Method: PoE++
  • Max. Power Consumption: 31W
  • Max. TX Power: 25 dBm
  • MIMO: 4x4 (DL MU-MIMO)
  • Max. Data Rate: 1.7 Gbps
  • Antenna Gain: Small cell: 15 dBi, Large cell: 10 dBi
  • Mounting: VESA-compatible mount, pole/wall
  • Operating Temperature: -40 to 70° C
  • Operating Humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC
  • WiFi Standards: 802.11 a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest Traffic Isolation: Supported
  • Power Save: Supported
  • Beamforming: Supported
  • Concurrent Clients: 1500+
