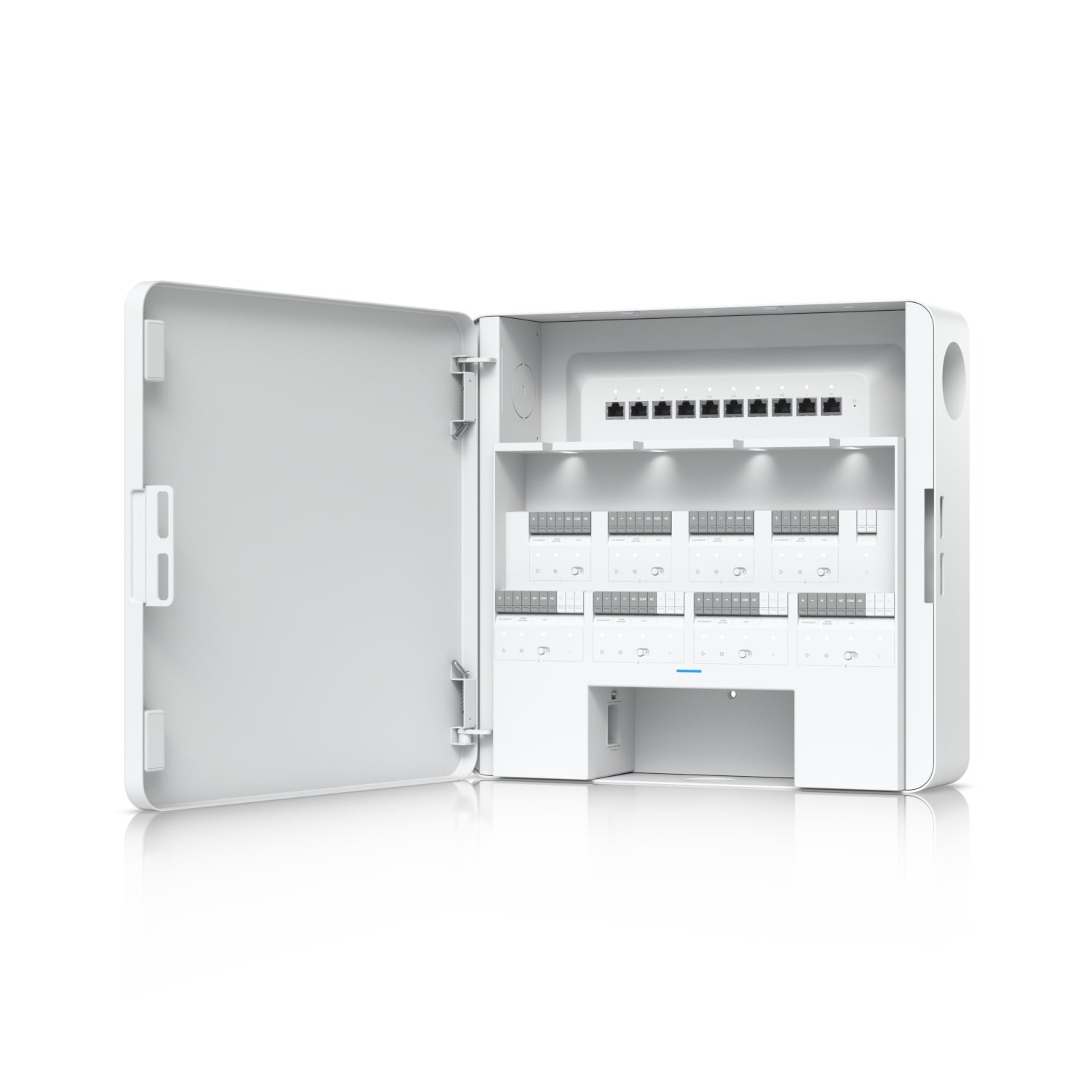

Ubiquiti Enterprise Access Hub, 8-Door Control, EAH-8

Ubiquiti Ubiquiti Enterprise Access Hub, 8-Door Control, EAH-8

Ubiquiti Enterprise Access Hub, 8-Door Control, EAH-8

The Ubiquiti Enterprise Access Hub (EAH-8) provides entry and exit control for up to eight doors. Featuring battery backup support and eight lock terminals (12V or dry), this hub is designed for comprehensive access management in enterprise environments. Backed by a 2-year warranty for reliable security operations.

Product Code: EAH-8

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

Customers also bought
GENTL-T06IN1

GENTL-T06IN1

Genixit Precision Tweezers Set, 6pcs, Anti-Static, ESD

$8.91 Incl. GST
GENTL-E62IN1

GENTL-E62IN1

Genixit 62-in-1 Precision Electric Screwdriver Set, Multi Function Cordless Repair Tool Kit

$69.30 Incl. GST
GENTL-130IN1

GENTL-130IN1

Genixit 130-in-1 Precision Screwdriver Set, Multifunction Repair Tool Kit

$43.56 Incl. GST
GENTL-010IN1

GENTL-010IN1

Genixit 10-in-1 Prying and Opening Tools Repair Kit

$8.91 Incl. GST

Description

The EAH-8 is an 8-port Ethernet switch designed for UniFi Access systems. It provides seamless connectivity and power delivery for various access control devices, ensuring reliable and secure network performance.

Specifications

Mechanical

  • Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")
  • Weight:
    • Device: 9.1 kg (20 lb)
    • Mount: 624 g (1.4 lb)
  • Enclosure material: SGCC housing with PC cover
  • Mounting material: SGCC wall mount plate

Hardware

  • Networking interface: (10) 10/100/1000 Base-T
  • Power method: Universal input, 100–240V AC, Max. 4.4A, 50/60Hz; 32–48V DC Lead Acid Battery, Max. 7.5A @32V
  • Power supply: AC/DC, internal
  • Max. power consumption: 240W
  • PoE interface: (8) PoE (Pins 1, 2+; 3, 6-)
  • Voltage range PoE mode: 44–57V DC
  • Total available PoE: 60W
  • Max. PoE wattage per port: 15.4W
  • Button: (1) Factory-reset
  • Digital input:
    • (8) Inputs for request-to-exit devices
    • (8) Inputs for door position sensors
    • (1) Emergency
  • Dry output relay:
    • (8) Lock terminals (12V or Dry)
    • (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
  • Powered output relay:
    • Lock: 12V DC, 1A/ Dry
    • Aux: Dry only

Operating Environment

  • Indoor use only
  • Ambient operating temperature: 0 to 40° C (32 to 104° F)
  • Ambient operating humidity: 5 to 95% noncondensing

Software Information

UL 294 Level

  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE Cabling Requirements

  • Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
  • The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grade

  • Grade assignment: I

Certifications

  • CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document Information

  • Document number: EAH-8
  • Version: Ver 01

LEDs

  • PoE in:
    • Steady white: Pending adoption
    • Steady blue: Adopted
    • Alternating white/blue: Firmware updating
  • PoE out: Blinking white: Active signal
  • Input terminals: Steady white: Active signal
  • Output relays: Steady white: Relay triggered

Software

  • Management application: UniFi Access: Version 1.22.17 and later
