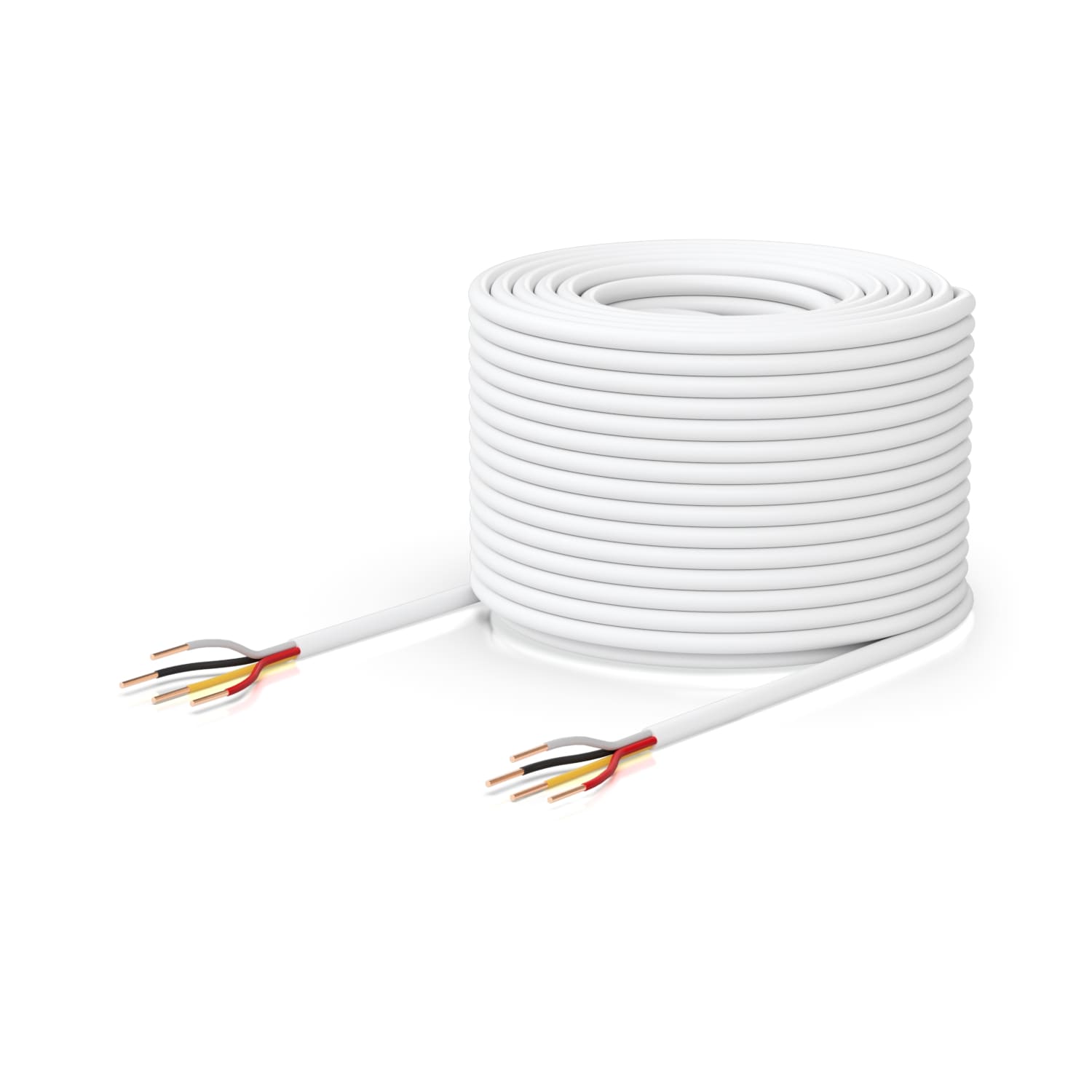

Ubiquiti Door Lock Relay Cable, 500-foot Spool, UACC-Cable-DoorLockRelay-2P

Ubiquiti Ubiquiti Door Lock Relay Cable, 500-foot Spool, UACC-Cable-DoorLockRelay-2P

Ubiquiti Door Lock Relay Cable, 500-foot Spool, UACC-Cable-DoorLockRelay-2P

The Ubiquiti Door Lock Relay Cable (UACC-CABLE-DOORLOCKRELAY-2P) is a 500-foot spool of two-pair, low-voltage cable designed for secure door lock relay installations. With 36V DC solid bare copper wiring, this cable ensures reliable and durable connections. Supported by a 2-year warranty for dependable performance.

Product Code: UACC-CABLE-DOORLOCKRELAY-2P

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

Customers also bought
GENTL-T06IN1

GENTL-T06IN1

Genixit Precision Tweezers Set, 6pcs, Anti-Static, ESD

$8.91 Incl. GST
GENTL-E62IN1

GENTL-E62IN1

Genixit 62-in-1 Precision Electric Screwdriver Set, Multi Function Cordless Repair Tool Kit

$69.30 Incl. GST
GENTL-130IN1

GENTL-130IN1

Genixit 130-in-1 Precision Screwdriver Set, Multifunction Repair Tool Kit

$43.56 Incl. GST
GENTL-010IN1

GENTL-010IN1

Genixit 10-in-1 Prying and Opening Tools Repair Kit

$8.91 Incl. GST

Description:

The UniFi Cable Door Lock Relay (UACC-CABLE-DOORLOCKRELAY) is a versatile relay designed to control electronic door locks. It integrates seamlessly with UniFi Access systems, providing reliable access control and enhanced security management for commercial and residential applications.

Specifications:

Mechanical:

  • Weight:
    • UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb)
    • UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
  • Cable Length: 152.4 m (500 ft)
  • Jacket OD:
    • UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18")
    • UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
  • Jacket Material: Thermoplastic elastomer (TPE)
  • Jacket Color: White
  • Conductor Wire Gauge:
    • UACC-Cable-DoorLockRelay-2P: 18/22 AWG
    • UACC-Cable-DoorLockRelay-1P: 18 AWG
  • Insulation Material: Semi-rigid polyvinyl chloride (SR-PVC)
  • Insulation Color:
    • UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG)
    • UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
  • Number of Conductors:
    • UACC-Cable-DoorLockRelay-2P: 4
    • UACC-Cable-DoorLockRelay-1P: 2
  • Conductor Material: Solid bare copper
  • Max. Pull Tension:
    • UACC-Cable-DoorLockRelay-2P: 24.2 kgf
    • UACC-Cable-DoorLockRelay-1P: 16.4 kgf
  • Min. Bend Radius:
    • UACC-Cable-DoorLockRelay-2P: 56 mm (2.2")
    • UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
  • Conductor DCR:
    • UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
    • UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
  • Voltage: 36V DC
  • Flame Rating: VW-1
  • Current Rating:
    • 18AWG: 2A for 500 ft length
    • 22AWG: 1A for 500 ft length
  • Storage Temperature: -45 to 65° C (-40 to 149° F)
  • Ambient Operating Temperature: -45 to 65° C (-40 to 149° F)
