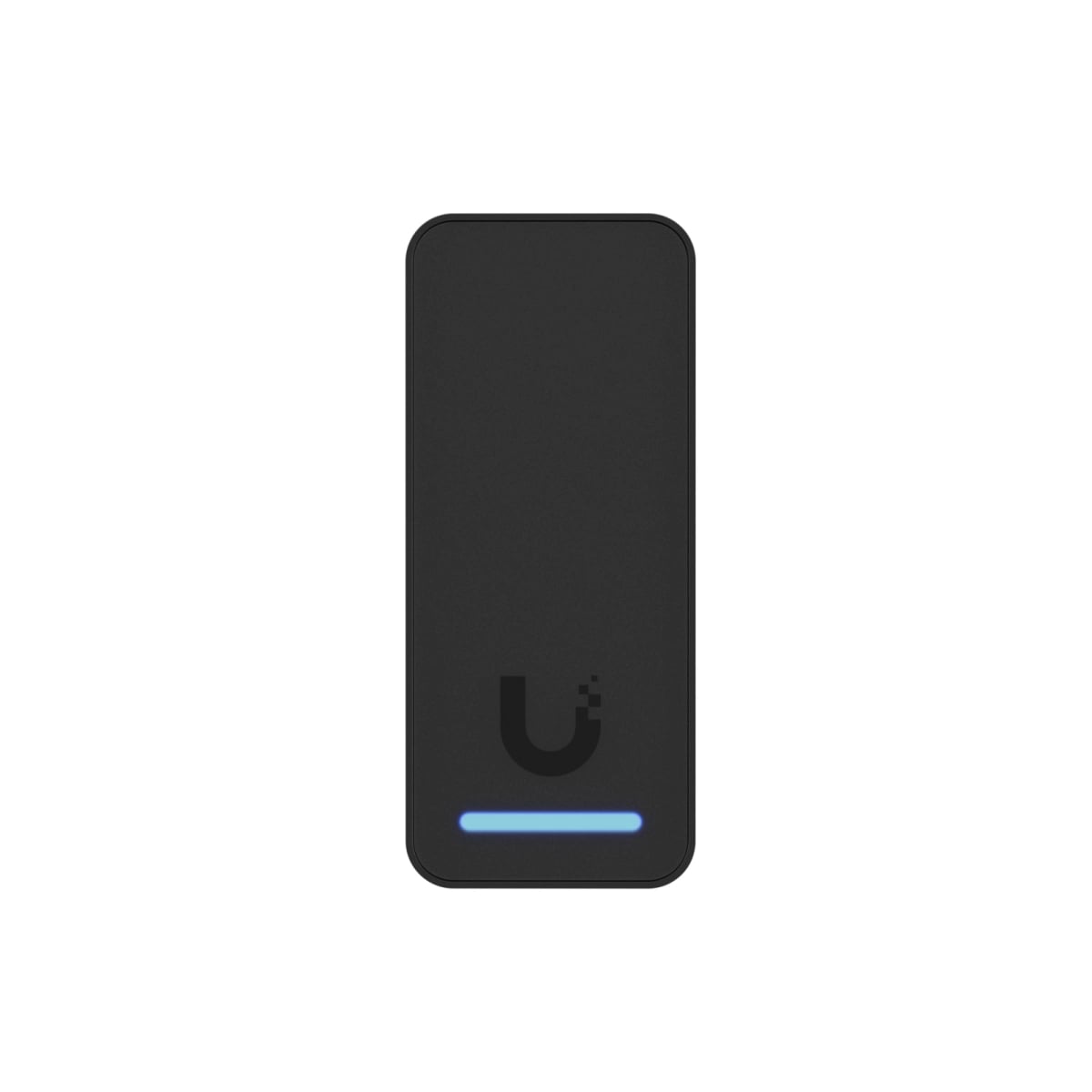

Ubiquiti UniFi Access Reader G2, Black, UA-G2-Black
Ubiquiti UniFi Access Reader G2, Black, UA-G2-Black
The Ubiquiti UniFi Access Reader G2 (UA-G2-BLACK) offers secure entry and exit messages with additional handwave unlock functionality. Featuring IP55 weather resistance, this reader is designed for reliable access control in various environments. Comes with a 2-year warranty for peace of mind.
Product Code: UA-G2-BLACK
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Description:
The UA-G2 is a second-generation UniFi Access reader that provides secure entry to buildings through NFC, PIN, and biometric authentication methods. It is designed for seamless integration with the UniFi Access ecosystem.
Specifications:
Mechanical
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight: 82 g (2.9 oz)
- Enclosure material: Polycarbonate, glass
- Mounting: In wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- Power method: PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 5W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs:
- Steady white: Pending adoption
- Steady blue: Adopted
- Alternating white/blue: Firmware updating
- Strobing red: Emergency lockdown
- Steady green: Emergency evacuation
- (2) Rapid flashing blue: NFC credential authenticated
- (2) Rapid flashing red: NFC credential authentication failed
- Breathing blue: Ready to register NFC cards
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating environment: Outdoor use
Ambient operating temperature: -30 to 45° C (-22 to 113° F)
Ambient operating humidity: 5 to 90% noncondensing
Software information: The software version of a product can be checked at https://unifi.ui.com
UL 294 level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
UL 294 statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: UA-G2/UA-G2-Black, V02
Software
- Management application: UniFi Access: Version 1.5.9 and later
