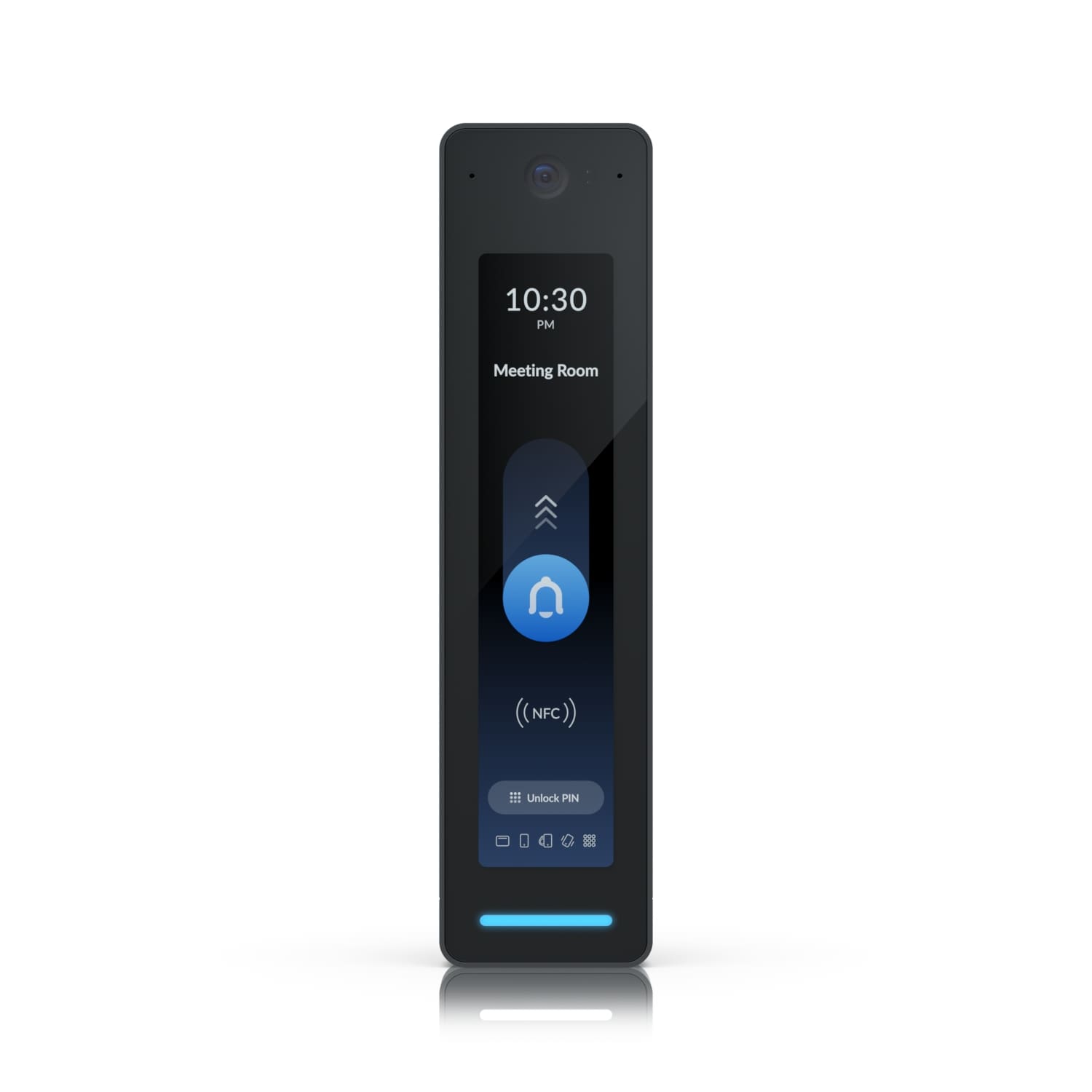

Ubiquiti UniFi Access Reader G2 Professional (BLACK), UA-G2-Pro-Black
Ubiquiti UniFi Access Reader G2 Professional (BLACK), UA-G2-Pro-Black
The Ubiquiti UniFi Access Reader G2 Professional (BLACK) (UA-G2-PRO-BLACK) offers advanced access control with a 2-way intercom, NFC or UniFi Identity unlock, and IP55 weather resistance. Featuring a pin unlock option, this reader provides enhanced security and is backed by a 2-year warranty.
Product Code: UA-G2-PRO-BLACK
For price and availability, click request quote
Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]
Description:
The UA-G2-Pro is an advanced access control reader designed for UniFi Access systems. It supports multiple authentication methods, including NFC, PIN, and biometrics, providing robust security for entry points.
Specifications:
Mechanical
- Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- Weight: 136 g (4.8 oz)
- Enclosure material: Polycarbonate, glass
- Mount material: Aluminum alloy
- Mounting: Wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) GbE RJ45 port
- Connectivity: BLE 4.2, NFC
- Power method: PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 6W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensor: Proximity sensor
- Camera: 4000 x 3000, 12 MP, 30 FPS
- View angle: H: 96.67°, V: 123.15°, D: 153.11°
- Microphone: Yes
- Speaker: (1) 4 ohm, 1.5W
- LEDs: R/G/B/W
- Flash
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating Environment
- Outdoor use
- Ambient operating temperature:
- Device: -30 to 45° C (-22 to 113° F)
- Display: -10 to 45° C (14 to 113° F)
- *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
- Ambient operating humidity: 5 to 90% noncondensing
Software Information
UL 294 Level
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE Cabling Requirements
- Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
- The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade
Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Information
- Document number: UA-G2-Pro/UA-G2-Pro-Black
- Version: V02
LED
- System:
- Steady blue: Adopted/device is ready
- Steady white: Pending adoption
- Blinking white/blue: Upgrading firmware
- Strobing red: Emergency lockdown
Software
- Management application: UniFi Access: Version 1.5.9 and later
