Ubiquiti Intercom, In/Outdoor, Bluetooth, NFC, UA-Intercom
Ubiquiti Intercom, In/Outdoor, Bluetooth, NFC, UA-Intercom

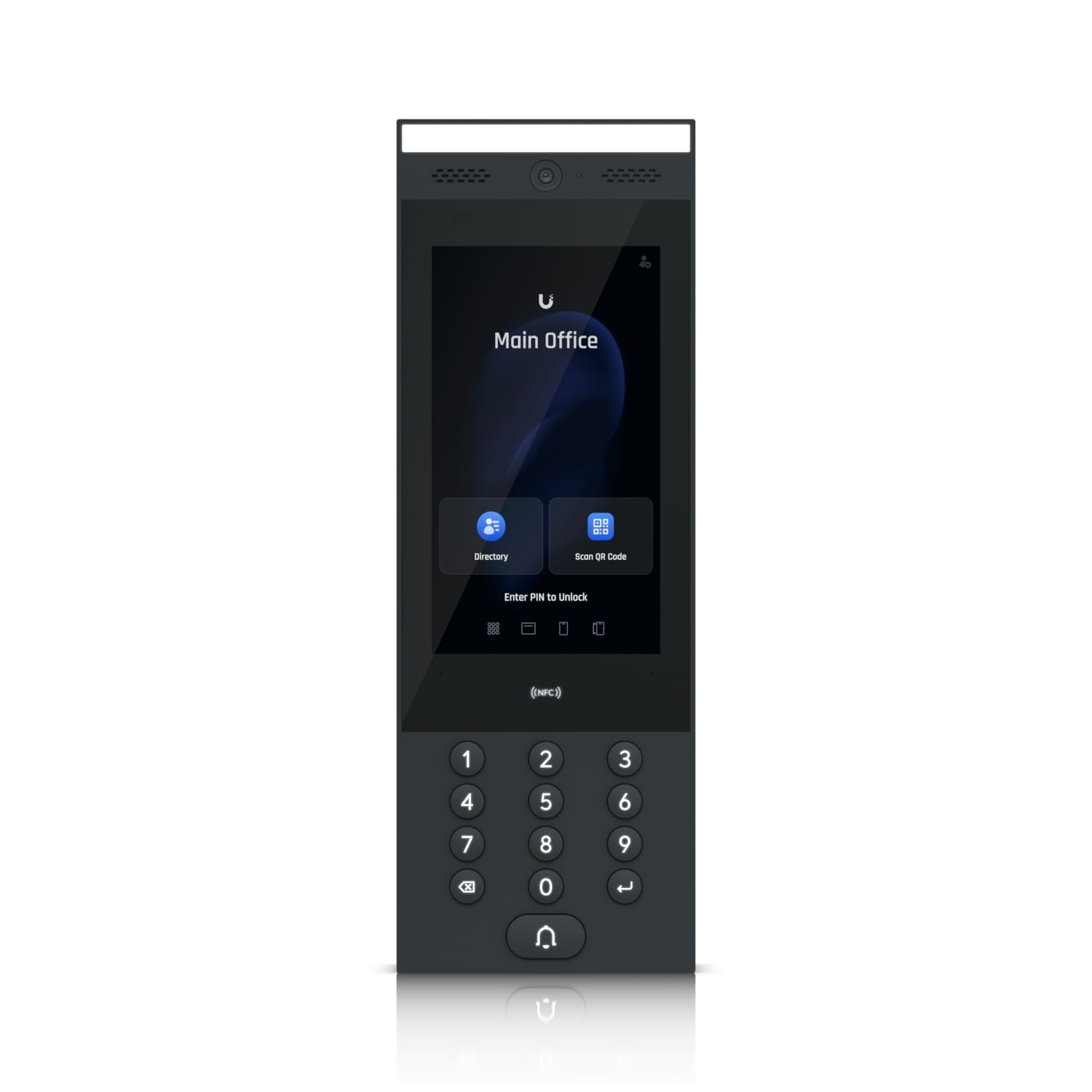

The Ubiquiti Intercom (UA-INTERCOM) is an indoor/outdoor terminal designed for managing residential and commercial building entry requests. With IP65 weather resistance and Bluetooth 4.2/NFC connectivity, this intercom offers reliable and secure access control. Supported by a 2-year warranty for dependable performance.
Product Code: UA-INTERCOM
For price and availability, click request quote
Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]
Description:
The UA-Intercom is a UniFi Access device that offers two-way audio communication with secure entry management. It features a high-definition camera and integrates with the UniFi Access ecosystem for enhanced visitor management.
Specifications:
Mechanical
- Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
- Weight:
- Device: 965 g (2.1 lb)
- Bracket: 445 g (1 lb)
- Enclosure material: Aluminum alloy, UV-stabilized polycarbonate, glass
- Mount material: Powder-coated stainless steel
- Mounting:
- Wall mount, adapter to the gooseneck pedestal (Included)
- Surface angle mount, flush mount (Optional)
- Sunshield kit (Optional)
- Weatherproofing: IP65
Hardware
- Networking interface: (1) GbE RJ45 port
- Connectivity: Bluetooth 4.2, NFC
- Power method: PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 13W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor, ALS sensor
- Camera: 3264 x 2448, 8 MP, H: 79.4°, V: 97.5°, D: 118.2°
- Display: 177 mm (7") diagonal, Resolution: 1024 x 600 (16:9)
- Display luminance: Max. 1000 nits (typical)
- Touch screen technology: Capacitive multi-touch
- Microphone: Yes
- Speaker: (1) 4 ohm, 2W
- LEDs:
- (1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system functions normally)
- (1) LED floodlight
- (13) Keypad LED backlight
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire
Operating environment: Outdoor use
Ambient operating temperature:
- Device: -30 to 60° C (-22 to 140° F)
- Display: -25 to 60° C (-13 to 140° F)
*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66)
Ambient operating humidity: 5 to 90% noncondensing
Software information: The software version of a product can be checked at https://unifi.ui.com
UL 294 level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
UL 294 statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: UA-Intercom, V01
Software
- Management application: UniFi Access: Version 1.22.17 and later
