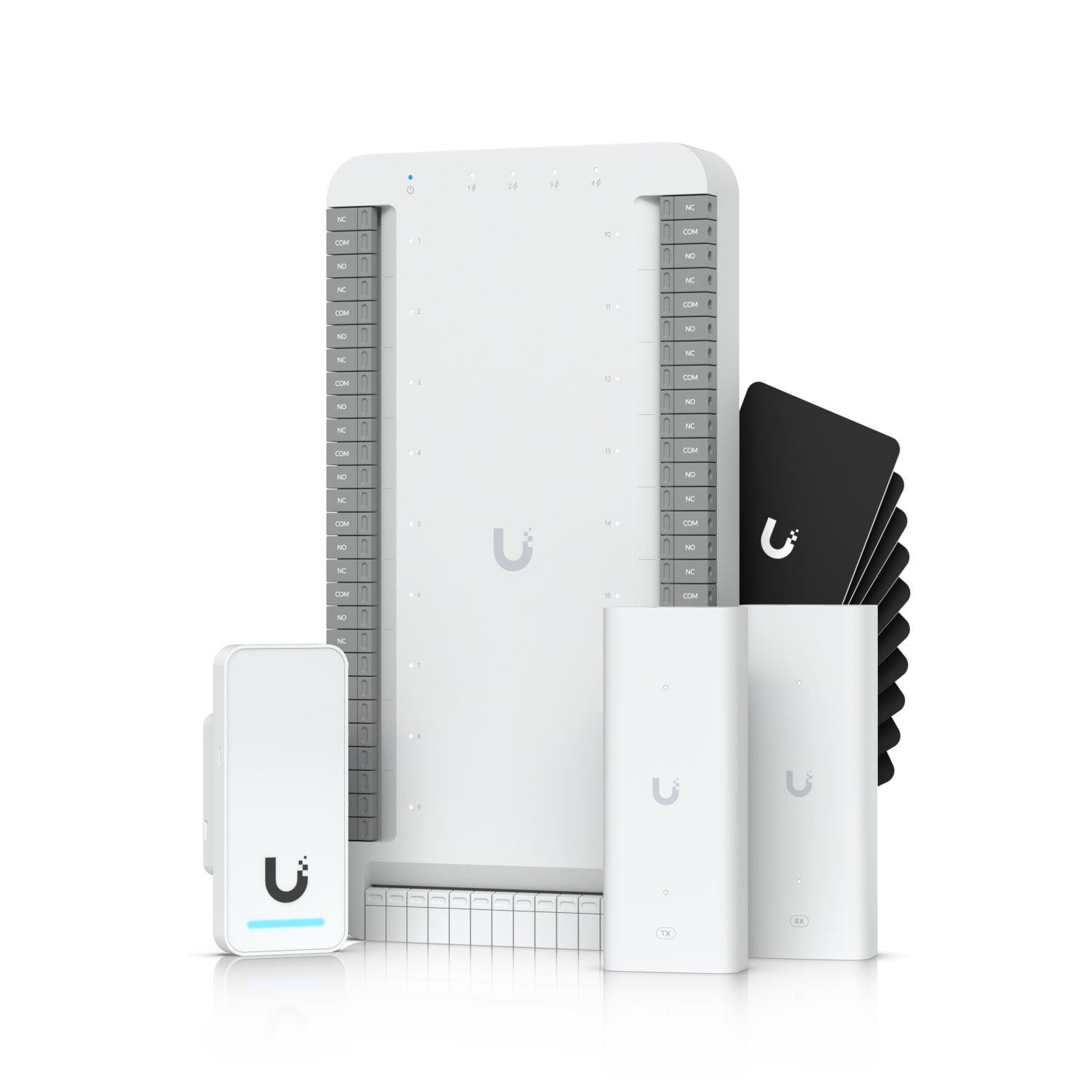

Ubiquiti Elevator Starter Kit, PoE++, UA-Sk-Elevator
Ubiquiti Elevator Starter Kit, PoE++, UA-Sk-Elevator
The Ubiquiti Elevator Starter Kit (UA-SK-ELEVATOR) is a comprehensive PoE++ system for managing elevator controls, including up/down/stop/full/door open and close functions. It supports up to 18 floors with an emergency key switch for safety. Comes with a 2-year warranty for secure and reliable operation.
Product Code: UA-SK-ELEVATOR
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Description:
The UA-SK-Elevator is an elevator access control system designed to integrate with UniFi Access. It offers secure and convenient access management for elevators, with support for multiple authentication methods including NFC cards and PIN codes.
Specifications:
UA-Hub-Elevator
Mechanical
- Dimensions: 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
- Weight: 537 g (1.2 lb)
- Enclosure material: Polycarbonate
- Mounting material: Polycarbonate
Hardware
- Networking interface: (4) 10/100/1000 Base-T
- Management interface: (1) 10/100/1000 Base-T
- Power method: PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Max. power consumption: 7W (Without PoE output)
- PoE input: (1) PoE++, 50V DC, 1.2A
- PoE output: PoE passthrough, (4) PoE, 50V DC, total 42W
- ESD/EMP protection: Air: ±8kV, contact: ±4kV
- Digital input:
- (5) Car position
- (6) Car status; Up/down/stop/full/door open/door close
- (1) Emergency
- Outputs: (18) Relays, Rating 30V DC/2A
- Buttons: (1) Factory-reset
- Terminal blocks
- Ambient operating temperature: -10 to 40° C (14 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
LEDs
- PoE in:
- Steady white: Pending adoption
- Steady blue: Adopted
- Alternating white/blue: Firmware updating
- Input terminals: Blinking white: Active signal
- Output relays: Blinking white: Relay triggered
UACC-Extender-2Wire-Tx/Rx
Mechanical
- Dimensions: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
- Weight:
- PoE in: 77 g (2.7 oz)
- PoE out: 79 g (2.8 oz)
- Enclosure material: Polycarbonate
- Mounting material: Polycarbonate
Hardware
- Networking interface: (1) 10/100 MbE
- Homeplug AV
- Management interface: (1) 10/100 MbE
- Power method: PoE++
- Max. power consumption: 3W (Without PoE output)
- PoE input: (1) PoE++, 50V DC, Max. 1.2A
- PoE output: (1) PoE+, 48V DC, 0.72A
- ESD/EMP protection: Air: ±8kV, contact: ±4kV
- LED: White
- Ambient operating temperature: -10 to 40° C (14 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
UA-G2
Mechanical
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight: 82 g (2.9 oz)
- Enclosure material: Polycarbonate, glass
- Mounting: In wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- Power method: PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 5W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs:
- Steady white: Pending adoption
- Steady blue: Adopted
- Alternating white/blue: Firmware updating
- Strobing red: Emergency lockdown
- Steady green: Emergency evacuation
- (2) Rapid flashing blue: NFC credential authenticated
- (2) Rapid flashing red: NFC credential authentication failed
- Breathing blue: Ready to register NFC cards
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating environment: Outdoor use
Ambient operating temperature: -30 to 45° C (-22 to 113° F)
Ambient operating humidity: 5 to 90% noncondensing
Software information: The software version of a product can be checked at https://unifi.ui.com
UL 294 level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
UL 294 statement:
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: UA-G2/UA-G2-Black, V02
UA-Card
Mechanical
- Dimensions: 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03")
- Weight: 5 g (0.18 oz)
- Format: ISO 7810 ID-1
- NFC frequency: 13.56 MHz
- NFC technology: ISO/IEC 14443 Type A, MIFARE DESFire
- UniFi Access Proprietary Security Protocol
