Ubiquiti WiFi 7 AP, 5-Pack, 6 GHz, PoE+, 2Yr Warr

Ubiquiti Ubiquiti WiFi 7 AP, 5-Pack, 6 GHz, PoE+, 2Yr Warr

Ubiquiti WiFi 7 AP, 5-Pack, 6 GHz, PoE+, 2Yr Warr

Ubiquiti UniFi WiFi 7 AP,5 Pack ,Ceiling-mount, AP 6 GHz Support, 2.5 GbE Uplink, 9.3 Gbps Over-the-air Speed,PoE+ Power,300+ Connect Device, 2Yr Warr

Product Code: U7-PRO-5

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$1,766.12 Incl. GST

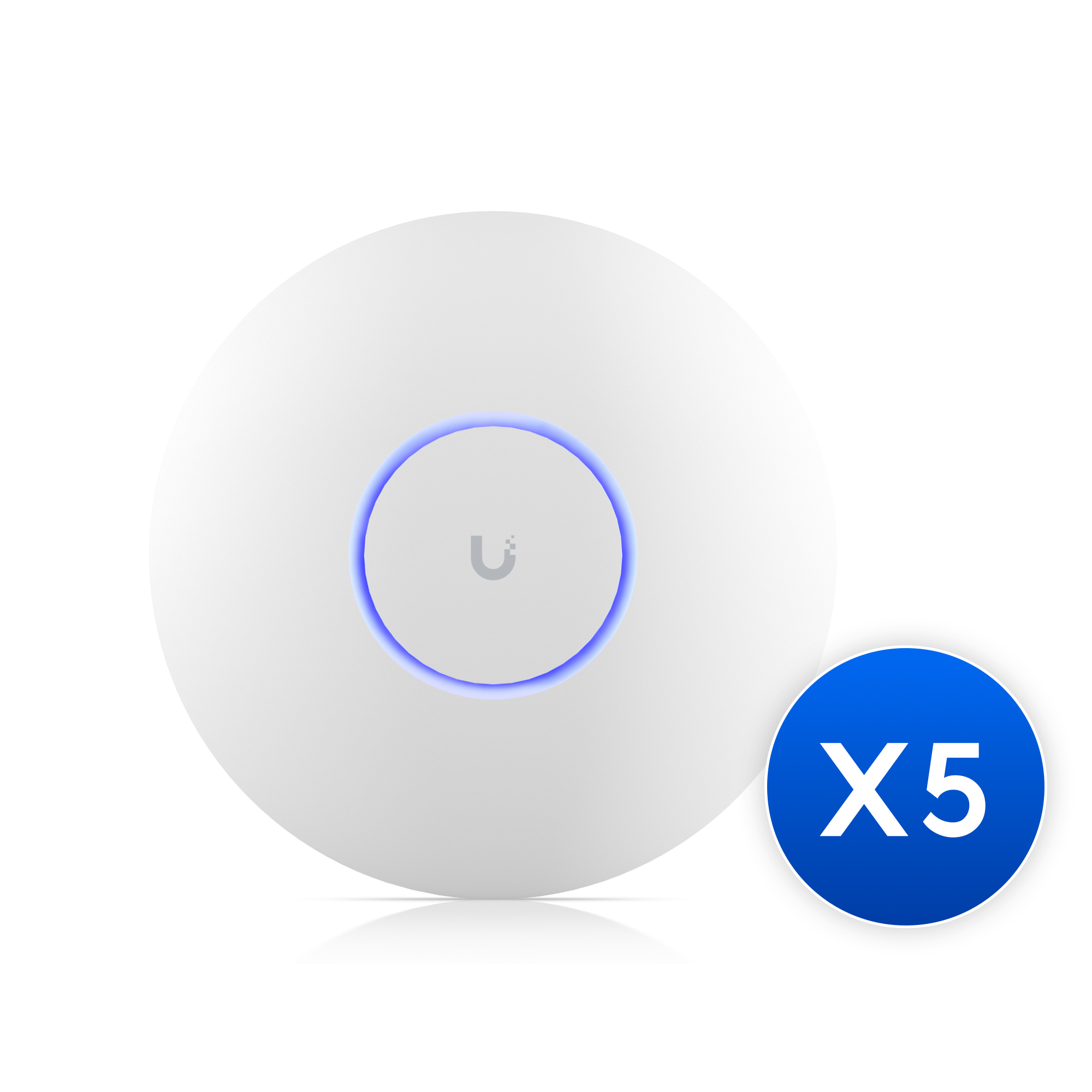

Overview of the UniFi 5 pack U7 Pro - U7-Pro-5

The UniFi U7 Pro is a ceiling-mounted Wi-Fi 7 access point designed to deliver high-performance, interference-free wireless connectivity in demanding, large-scale environments. Key features include:

  • Wi-Fi Standard:
    • Supports Wi-Fi 7 (802.11be), providing enhanced performance and efficiency.
  • Tri-Band Operation:
    • Operates on 2.4 GHz, 5 GHz, and 6 GHz bands, reducing interference and optimizing network performance.
  • Spatial Streams:
    • Features 6 spatial streams (2x2 MIMO on each band), enhancing data throughput and connection reliability.
  • Coverage and Capacity:
    • Covers up to 140 m² (1,500 ft²), supporting over 300 concurrent client connections, making it ideal for high-density environments.
  • Data Rates:
    • Maximum data rates per band:
      • 6 GHz: 5.7 Gbps (with 320 MHz bandwidth)
      • 5 GHz: 4.3 Gbps (with 240 MHz bandwidth)
      • 2.4 GHz: 688 Mbps (with 40 MHz bandwidth)
  • Antenna Gain:
    • Internal antennas with the following gains:
      • 6 GHz: 5.8 dBi
      • 5 GHz: 6 dBi
      • 2.4 GHz: 4 dBi
  • Power and Connectivity:
    • Equipped with a 2.5 GbE RJ45 port supporting PoE+ (Power over Ethernet), simplifying installation by combining power and data over a single cable.
  • Design and Installation:
    • Compact design with dimensions of Ø206 x 46 mm (Ø8.1 x 1.8"), suitable for ceiling or wall mounting.
  • Environmental Specifications:
    • Operating temperature range: -30 to 60° C (-22 to 140° F)
    • Operating humidity: 5 to 95% non-condensing
  • This access point is ideal for environments requiring high-speed, reliable wireless connectivity with support for a large number of concurrent devices.

Specifications for the UniFi 5 pack U7 Pro - U7-Pro-5

Overview

  • Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 2.5 GbE
  • Mounting Locations: Ceiling, wall
  • Mounting Plate: Pro mounting plate (Included)
  • Power Method: PoE+

Performance

  • MIMO:
    • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: 5.7 Gbps (BW320)
    • 5 GHz: 4.3 Gbps (BW240)
    • 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain:
    • 6 GHz: 5.8 dBi
    • 5 GHz: 6 dBi
    • 2.4 GHz: 4 dBi
  • Max. TX Power:
    • 6 GHz: 23 dBm
    • 5 GHz: 26 dBm
    • 2.4 GHz: 22 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates:
    • 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
    • 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features:

  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Advanced Radio Management: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal
  • Custom Branding Landing Page: Yes
  • Voucher Authentication: Yes
  • Payment-Based Authentication: Yes
  • External Portal Server Support: Yes
  • Password Authentication: Yes
  • Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes

Hardware

  • Max. Power Consumption: 21W
  • Supported Voltage Range: 44—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Weight: 680 g (1.5 lb)
  • Management
  • Ethernet
  • Enclosure Material: Polycarbonate, metal
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs: System - White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • Certifications: CE, FCC, IC
  • Operating Frequency
    • US/CA:
      • 2400 - 2472 MHz
      • U-NII-1: 5150 - 5250 MHz
      • U-NII-2A: 5250 - 5350 MHz
      • U-NII-2C: 5470 - 5725 MHz
      • U-NII-3: 5725 - 5850 MHz
      • U-NII-5 to U-NII-8: 5925 - 7125 MHz
    • Worldwide:
      • 2400 - 2483.5 MHz
      • 5150 - 5725 MHz
      • 5925 - 7125 MHz
  • Environmental Specifications
    • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
    • Ambient Operating Humidity: 5 to 95% noncondensing
