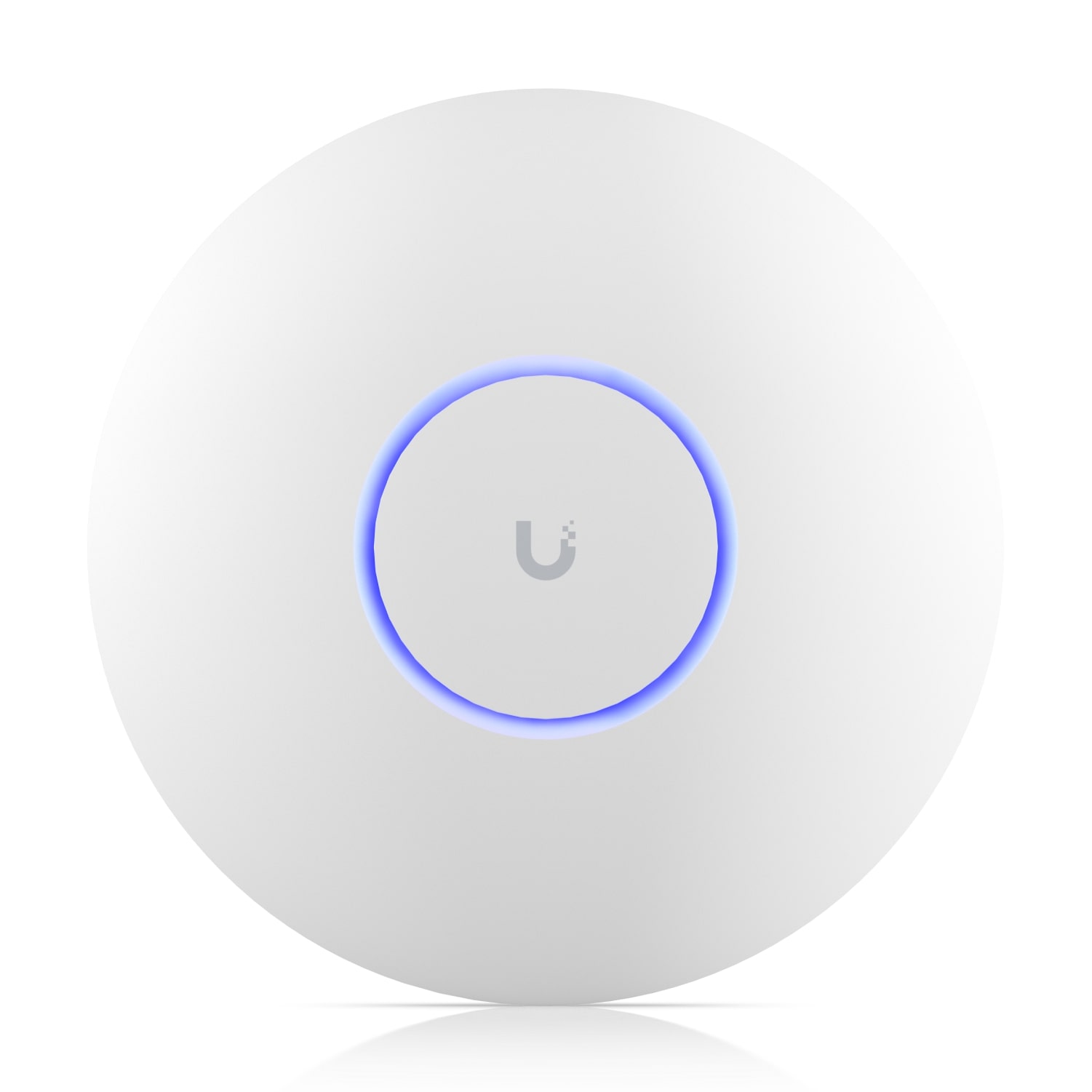

Ubiquiti U7-Pro-Max, WiFi 7 AP, 8 Streams, 2Yr Warr

Ubiquiti Ubiquiti U7-Pro-Max, WiFi 7 AP, 8 Streams, 2Yr Warr

Ubiquiti U7-Pro-Max, WiFi 7 AP, 8 Streams, 2Yr Warr

Ubiquiti U7-Pro-Max, Ceiling-mounted WiFi 7 AP, 8 Spatial Streams,6 GHz Support,2.5 GbE Uplink, 500+ Devices,For Large-scale Environments, 2Yr Warr

Product Code: U7-PRO-MAX

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$596.44 Incl. GST

Overview of UniFi U7 Pro Max - U7-Pro-Max

  • Wi-Fi 7: Supports the latest Wi-Fi 7 standard for ultra-fast speeds and low latency.
  • Tri-Band: Operates on 2.4 GHz, 5 GHz, and 6 GHz bands for improved performance.
  • High Speeds: Capable of speeds up to 11 Gbps (theoretical max).
  • Multiple Antennas: High-gain antennas for extended coverage and better signal strength.
  • Multi-Gig Ethernet: 2.5 Gbps Ethernet port for high-speed wired connections.
  • PoE Support: Supports PoE+ and PoE++ for easier installation without power adapters.
  • AI-Driven Optimizations: Helps with channel selection and client balancing.
  • Seamless Integration: Works with the UniFi Network platform for centralized management.
  • Security & Performance: Supports WPA3 encryption, VLANs, and enterprise-grade security features.
  • Future-Proof: Designed for high-density environments with next-gen Wi-Fi technologies.

Specifications for the UniFi U7 Pro Max - U7-Pro-Max

Overview

  • Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 8
  • Coverage Area: 160 m² (1,750 ft²)
  • Max. Client Count: 500+
  • Uplink: 2.5 GbE
  • Mounting Locations: Ceiling, wall
  • Mounting Plate: Pro mounting plate (Included)
  • Power Method: PoE+

Performance

  • MIMO:
    • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 5 GHz: 4 x 4 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: 5.7 Gbps (BW320)
    • 5 GHz: 8.6 Gbps (BW240)
    • 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain:
    • 6 GHz: 5.9 dBi
    • 5 GHz: 6 dBi
    • 2.4 GHz: 4 dBi
  • Max. TX Power:
    • 6 GHz: 23 dBm
    • 5 GHz: 29 dBm
    • 2.4 GHz: 23 dBm
  • Max. BSSIDs: 8 per Radio

Supported Data Rates

  • 802.11be (WiFi 7):
    • 5 GHz: 7.3 Mbps to 8.6 Gbps
    • 6 GHz: 7.3 Mbps to 5.7 Gbps
  • 802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
  • 802.11n: 6.5 Mbps to 300 Mbps

Features

  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Zero-Wait DFS: Yes
  • Advanced Radio Management: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal:
    • Custom Branding Landing Page: Yes
    • Voucher Authentication: Yes
    • Payment-Based Authentication: Yes
    • External Portal Server Support: Yes
    • Password Authentication: Yes
  • Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes

Hardware

  • Max. Power Consumption: 25W
  • Supported Voltage Range: 44—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Weight: 680 g (1.5 lb)

Management

  • Ethernet
  • Enclosure Material: Polycarbonate, aluminum
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs:
    • System: White/Blue

Channel Bandwidth

  • HT 20/40
  • VHT 20/40/80/160
  • HE 20/40/80/160
  • EHT 20/40/80/160/240/320 (MHz)

Certifications

  • CE, FCC, IC

Operating Frequency

  • US/CA:
    • 2400 - 2472 MHz
    • U-NII-1: 5150 - 5250 MHz
    • U-NII-2A: 5250 - 5350 MHz
    • U-NII-2C: 5470 - 5725 MHz
    • U-NII-3: 5725 - 5850 MHz
    • U-NII-5 to U-NII-8: 5925 - 7125 MHz
  • Worldwide:
    • 2400 - 2483.5 MHz
    • 5150 - 5725 MHz
    • 5925 - 7125 MHz

Environmental

  • Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
