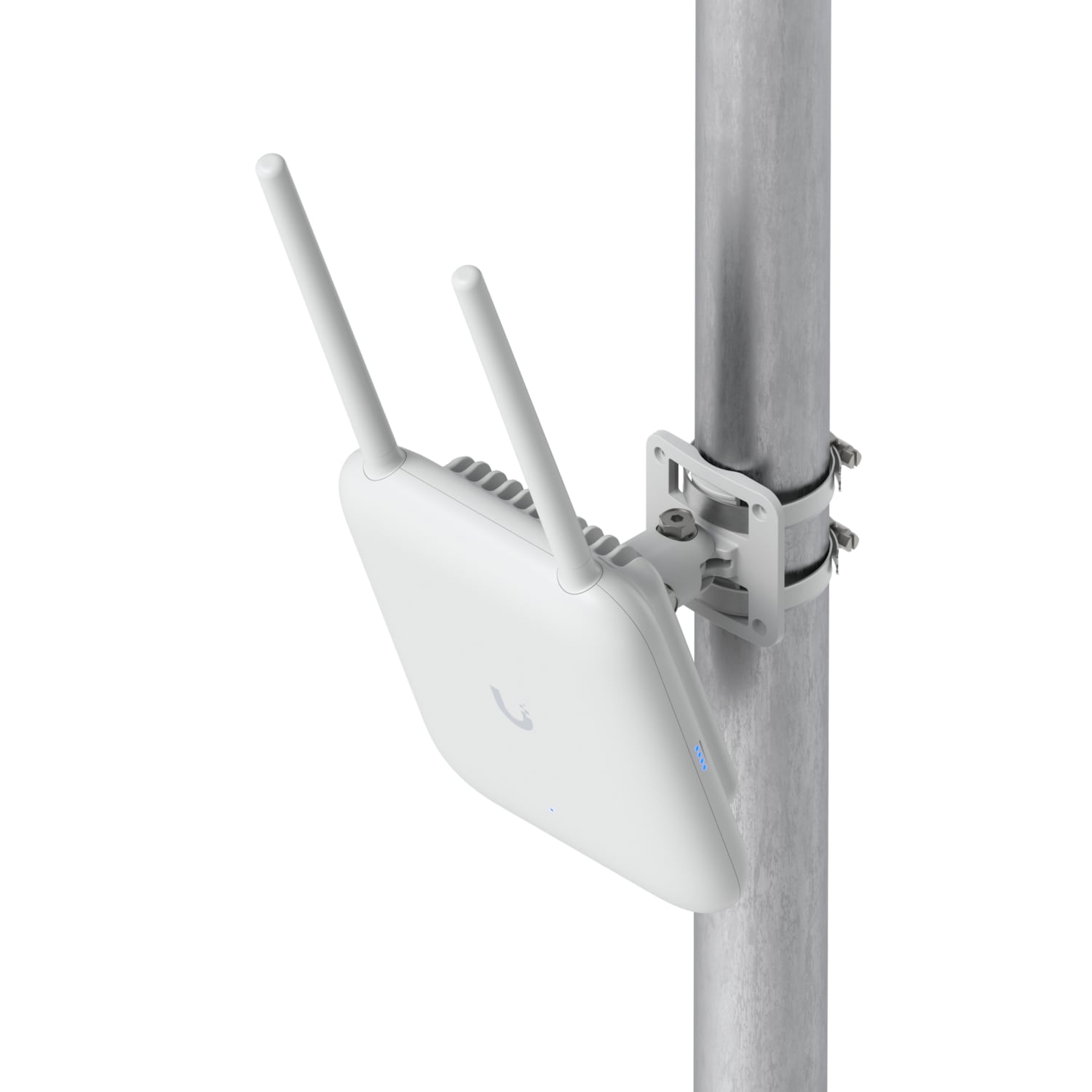

Ubiquiti U7 Pro Outdoor, IP67, 6 GHz, 2Yr Warr

Ubiquiti Ubiquiti U7 Pro Outdoor, IP67, 6 GHz, 2Yr Warr

Ubiquiti U7 Pro Outdoor, IP67, 6 GHz, 2Yr Warr

Ubiquiti U7 Pro Outdoor, IP67 WiFi 7 AP,6 Spatial Streams,Extended-range AFC 6 GHz, Integrated Directional Super Antenna,Articulation Mounting Bracket

Product Code: U7-PRO-OUTDOOR

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$605.00 Incl. GST

Overview of the UniFi U7 Pro Outdoor - U7-Pro-Outdoor

The Ubiquiti AI Port (UP-AI-Port) is an AI appliance designed to enhance both UniFi and third-party cameras by providing advanced AI detection, classification, and recognition capabilities. Key features include:

  • AI Enhancement: Integrates with existing camera systems to add intelligent detection and recognition functionalities.
  • Third-Party Compatibility: Supports integration with non-UniFi cameras, broadening the scope of surveillance systems.
  • UniFi Protect Integration: Seamlessly integrates with UniFi Protect for centralized management and monitoring.
  • Rack-Mountable Design: Optional rack mount accessory available, allowing installation of up to six AI Ports in a standard 1U rack space.

Specifications for the UniFi U7 Pro Outdoor - U7-Pro-Outdoor

Overview

  • Dimensions:
    • Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
    • With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 465 m² (5,000 ft²)
  • Max. Client Count: 300+
  • Uplink: 2.5 GbE
  • Mounting Locations: Wall, pole
  • Mounting Plate: Included mount
  • Weatherproofing:
    • IPX6
    • IP67 (With cable-gland door kit)
  • Power Method: PoE+

Performance

  • MIMO:
    • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: 5.7 Gbps (BW320)
    • 5 GHz: 4.3 Gbps (BW240)
    • 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain:
    • 6 GHz: Directional internal: 10 dBi
    • 5 GHz: Directional internal: 11 dBi, External omni: 8 dBi
    • 2.4 GHz: Directional internal: 8 dBi, External omni: 6 dBi
  • Max. TX Power:
    • 6 GHz: 26 dBm
    • 5 GHz: 26 dBm
    • 2.4 GHz: 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates
    • 802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps
    • 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps
    • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps
    • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps
    • 802.11n: 6.5 Mbps to 300 Mbps

Features

  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Advanced Radio Management: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal:
    • Custom Branding Landing Page: Yes
    • Voucher Authentication: Yes
    • Payment-Based Authentication: Yes
    • External Portal Server Support: Yes
    • Password Authentication: Yes
    • Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes

Hardware

  • Max. Power Consumption: 21W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Weight:
    • Device: 1.2 kg (2.6 lb)
    • With mount: 1.33 kg (2.9 lb)
  • Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
  • Pole Mount Diameter: 1–2.5" (25–63.5 mm)
  • Management
    • Ethernet: Yes
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: UV-stabilized polycarbonate
  • LEDs
    • System: (1) Power: White/Blue
    • Mesh Signal: (4) Blue
  • Certifications: FCC, IC
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Software

  • Application Requirements:
    • UniFi Network: Version 9.0.114 and later
    • UniFi OS:
      • iOS™ version 10.20.2 and later
      • Android™ version 10.21.7 and later
