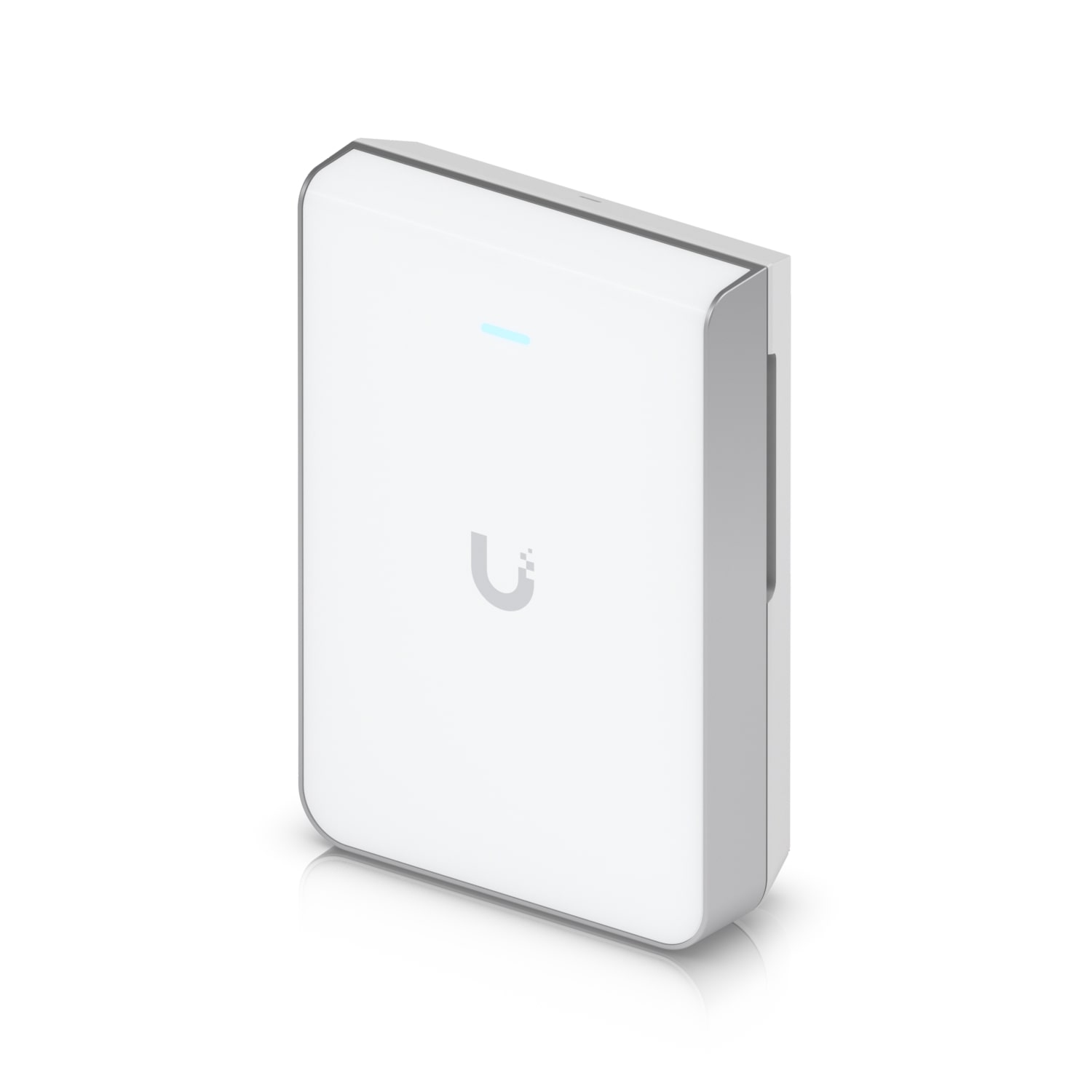

Ubiquiti U7 Pro Wall, 6 GHz, 6 Streams, PoE+, 2Yr Warr

Ubiquiti Ubiquiti U7 Pro Wall, 6 GHz, 6 Streams, PoE+, 2Yr Warr

Ubiquiti U7 Pro Wall, 6 GHz, 6 Streams, PoE+, 2Yr Warr

Ubiquiti U7 Pro Wall, 6 Spatial Strea,6 GHz Support Tailored,PoE+, Voltage 44—57V DC, Max Power 22W,2.5 GbE uplink,300+ Devices,140 m² cover, 2Yr Warr

Product Code: U7-PRO-WALL

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$382.56 Incl. GST

Overview of the UniFi U7 Pro Wall - U7-Pro-Wall

The Ubiquiti UniFi U7 Pro Wall is a wall-mounted WiFi 7 access point designed for seamless installation, especially suited for home builders. Key features include:

  • WiFi 7 Support: Operates on 2.4 GHz, 5 GHz, and 6 GHz bands, providing high-speed wireless connectivity.
  • High Performance: Delivers up to 5.7 Gbps on the 6 GHz band, 4.3 Gbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band.
  • Coverage and Capacity: Covers approximately 140 m² (1,500 ft²) and supports over 300 simultaneous client connections.
  • Power over Ethernet (PoE+): Simplifies installation by combining data and power over a single cable.
  • 2.5 GbE Uplink: Features a 2.5 Gigabit Ethernet RJ45 port for high-speed wired connections.
  • Versatile Mounting Options: Offers optional accessories like a paintable flush mount and table stand for flexible deployment.
  • Note: 6 GHz operation is supported in select countries, and Multi-Link Operation (MLO) capability will be available via a future software update.

Specifications for the UniFi U7 Pro Wall - U7-Pro-Wall

Overview

  • Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 2.5 GbE
  • Mounting Locations: Wall
  • Mounting Plate: Included mount
  • Power Method: PoE+

Performance:

  • MIMO:
    • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: 5.7 Gbps (BW320)
    • 5 GHz: 4.3 Gbps (BW240)
    • 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain:
    • 6 GHz: 6 dBi
    • 5 GHz: 5 dBi
    • 2.4 GHz: 4 dBi
  • Max. TX Power:
    • 6 GHz: 23 dBm
    • 5 GHz: 26 dBm
    • 2.4 GHz: 22 dBm
  • Max. BSSIDs: 8 per Radio

Supported Data Rates:

  • WiFi 7 (802.11be): 7.3 Mbps to 5.7 Gbps
  • WiFi 6/6E (802.11ax): 7.3 Mbps to 2.4 Gbps
  • WiFi 5 (802.11ac): 6.5 Mbps to 1.7 Gbps
  • WiFi 4 (802.11n): 6.5 Mbps to 300 Mbps

Features:

  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Advanced Radio Management: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal:
    • Custom Branding Landing Page: Yes
    • Voucher Authentication: Yes
    • Payment-Based Authentication: Yes
    • External Portal Server Support: Yes
    • Password Authentication: Yes
    • Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes

Hardware:

  • Max. Power Consumption: 22W
  • Supported Voltage Range: 44—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Weight: 580 g (1.3 lb)
  • Management: Ethernet
  • Material:
    • Enclosure: Polycarbonate, aluminum
    • Mount: Aluminum
  • LEDs: White/Blue (System)
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • Certifications: CE, FCC, IC
  • Operating Frequency:
    • US/CA:
      • 2400 - 2472 MHz
      • U-NII-1: 5150 - 5250 MHz
      • U-NII-2A: 5250 - 5350 MHz
      • U-NII-2C: 5470 - 5725 MHz
      • U-NII-3: 5725 - 5850 MHz
      • U-NII-5 to U-NII-8: 5925 - 7125 MHz
    • Worldwide:
      • 2400 - 2483.5 MHz
      • 5150 - 5725 MHz
      • 5925 - 7125 MHz
  • Environmental Conditions:
    • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
    • Ambient Operating Humidity: 5 to 95% noncondensing
