Ubiquiti Access Button, Push-to-Exit, 2Yr Warr

Ubiquiti Ubiquiti Access Button, Push-to-Exit, 2Yr Warr

Ubiquiti Access Button, Push-to-Exit, 2Yr Warr

Ubiquiti Access Button, Push-to-exit Button Designed For UniFi Access Hubs, Contacting Rate 30V DC, 2A, Indoor Only, Incl 2Yr Warr

Product Code: UA-BUTTON

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$84.34 Incl. GST

Overview of the UniFi Access Button (model UA-Button)

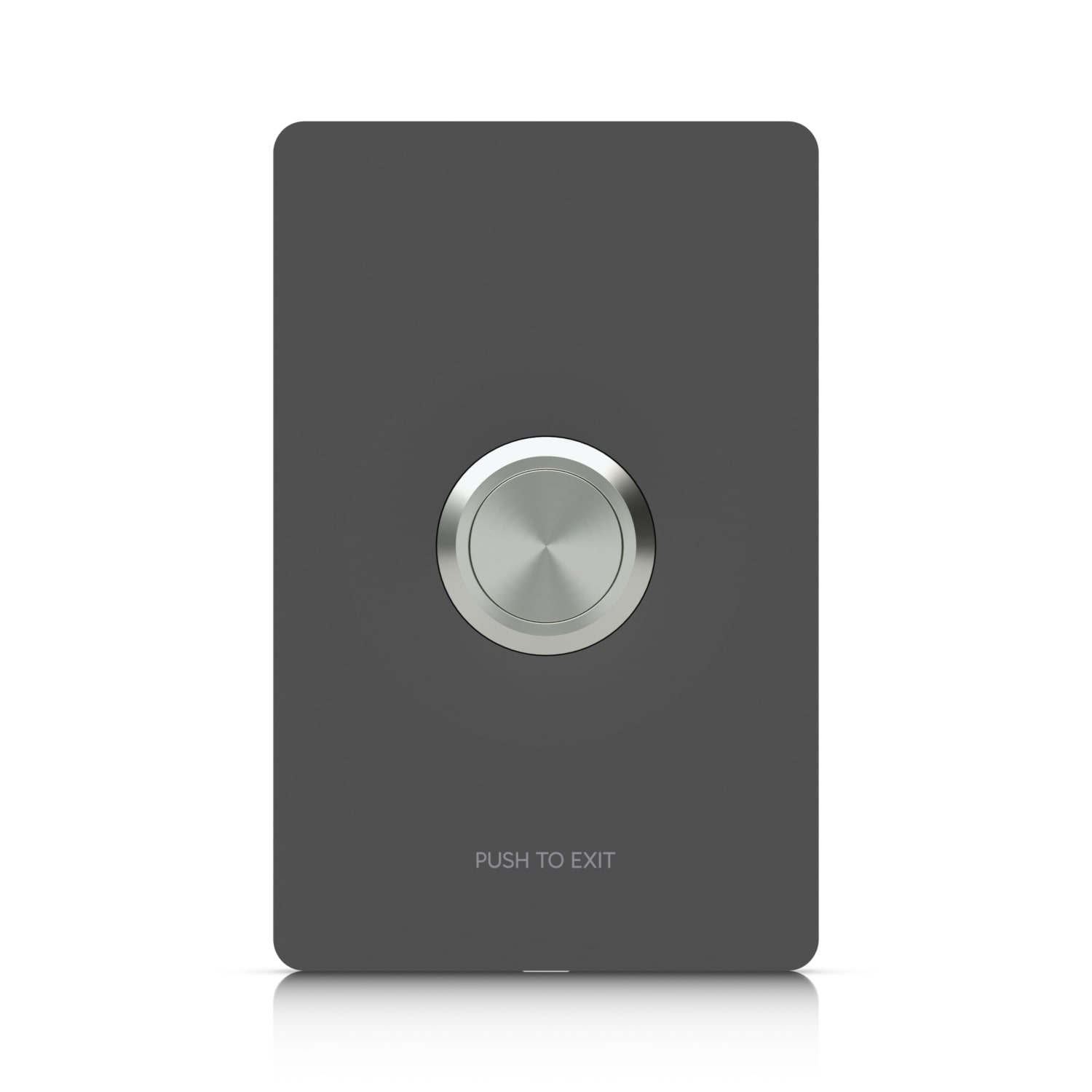

The Ubiquiti UniFi Access Button (model UA-Button) is a push-to-exit device designed to enhance access control systems by allowing authorized individuals to exit secured areas with a simple press. It is specifically designed for indoor use and integrates seamlessly with Ubiquiti's UniFi Access Hubs.

  • Sleek and Customizable Design
    • Includes interchangeable black and white faceplates for aesthetic flexibility.
    • Compact form factor with a professional appearance.
  • Reliable and Durable Performance
    • 1,000,000 click lifespan ensures long-term reliability.
    • Sturdy polycarbonate enclosure with a metal mounting plate.
  • Easy Installation and Compatibility
    • Designed specifically for UniFi Access Hubs for seamless setup.
    • Uses normally open (NO) contact type with a 30V DC at 2A rating.
  • Ideal for Indoor Environments
    • Operates between -10 to 40°C (14 to 104°F).
    • Supports humidity levels from 5% to 90% (non-condensing).
    • Not suitable for outdoor use due to environmental constraints.

The UA-Button enhances security while offering a sleek and user-friendly interface.

Specifications for the UniFi Access Button (model UA-Button)

Mechanical:

  • Dimensions: 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5")
  • Weight: 180 g (6.3 oz)
  • Enclosure Material: Polycarbonate
  • Mounting Material: Metal
  • Color: Black/White

Hardware:

  • Contact Type: (1) Normal open
  • Power Method: UniFi Access Hubs,UL 294 Power-limited Class 2 PSU,UL 60950-1/62368-1 LPS/PS2 PSU
  • Contact Rating: 30V DC, 2A
  • Mechanical Life: 1,000,000 clicks
  • Environment: Indoor only
  • Storage Temperature: -40 to 70° C (-40 to 158° F)
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 5 to 90% noncondensing

UL 294 Level:

  • Destructive Attack: Level I
  • Line Security: Level I
  • Endurance: Level I
  • Standby Power: Level I

UL 294 Statement:

  • Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
  • The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade:Grade Assignment:1

Certification:CE,UL 294,CAN/ULC-60839-11-1
