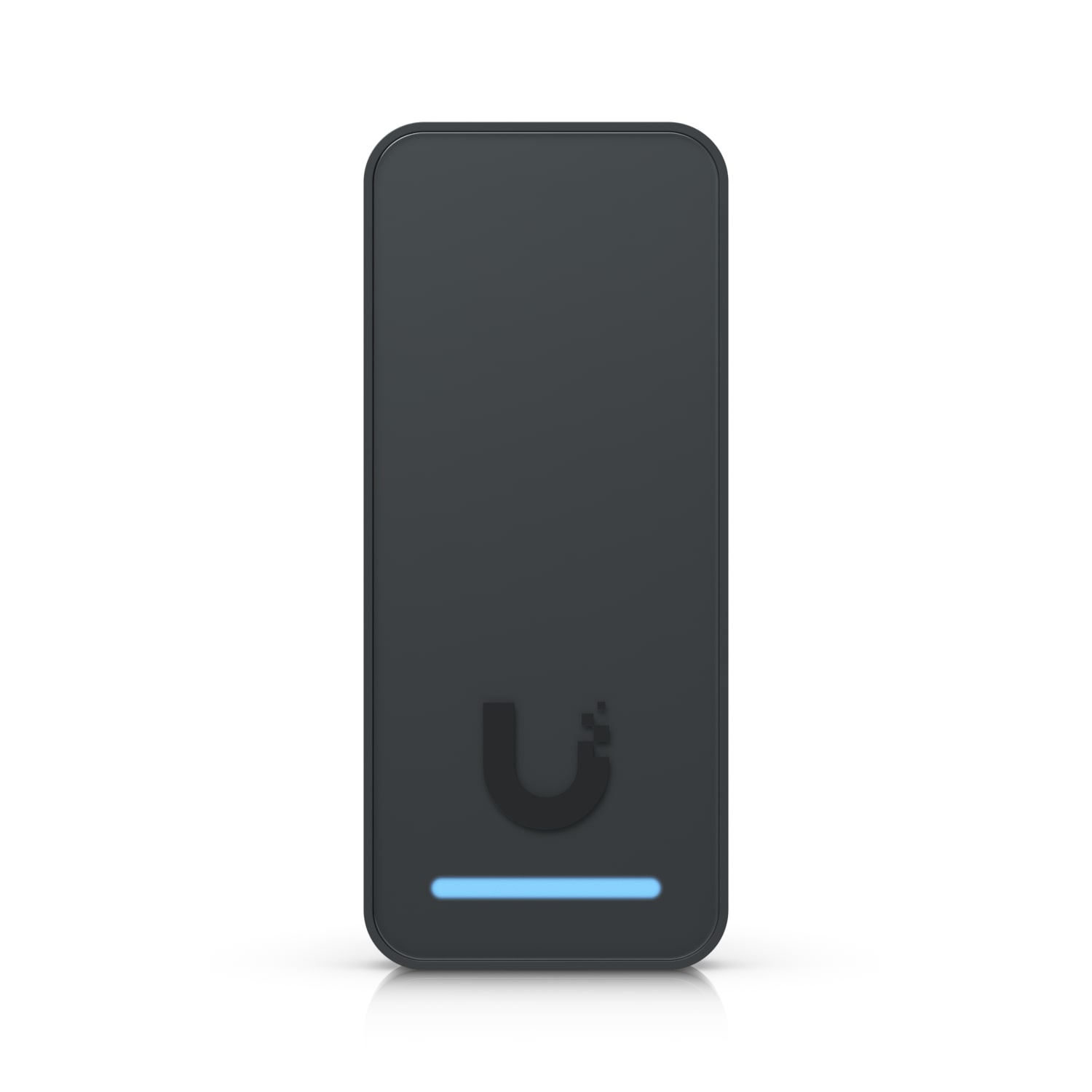

Ubiquiti G3 Reader, Black, Apple Touch Pass, 2Yr Warr

Ubiquiti Ubiquiti G3 Reader, Black, Apple Touch Pass, 2Yr Warr

Ubiquiti G3 Reader, Black, Apple Touch Pass, 2Yr Warr

Ubiquiti G3 Reader, Black, Compact Third-generation Access Reader With Apple Touch Pass Support, Power Via POE, Outdoor IP55, Incl 2Yr Warr

Product Code: UA-G3-B

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$299.44 Incl. GST

Overview of the UniFi G3 Reader - UA-G3-B

The UniFi Access Reader G3 Black (UA-G3-B) is a compact, third-generation access reader designed to enhance secure entry systems. Key features include:

  • Multiple Unlock Methods: Supports unlocking via NFC cards, the UniFi Identity mobile app, or Apple Touch Pass.
  • Request-to-Exit Functionality: Features hand-wave unlocking for seamless and contactless exits.
  • Interactive Messaging: Provides entry and exit greeting messages to users.
  • Weather Resistance: Built with an IP55-rated enclosure, ensuring reliable operation in various environmental conditions, with an operating temperature range of -30 to 45°C.
  • PoE Connectivity: Connects to the UniFi Access Hub via Power over Ethernet (PoE), simplifying installation and reducing cabling requirements.

Specifications for the UniFi G3 Reader - UA-G3-B

Mechanical

  • Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
  • Weight: 82 g (2.9 oz)
  • Enclosure Material: Polycarbonate, glass
  • Mounting Material: Aluminum alloy
  • Mounting: In wall, gang box
  • Weatherproofing: IP55

Hardware

  • Networking Interface: (1) 10/100 MbE RJ45 port
  • Connectivity: BLE 4.1, NFC
  • Power Method: PoE
  • Power Standards:
    • UL 294 Power-limited Class 2 PSU
    • UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 5W
  • ESD/EMP Protection: Air: ±15kV, Contact: ±8kV
  • Sensors: Proximity sensor
  • Speaker: (1) 8 ohm, 0.7W
  • LEDs: R/G/B/W
  • Button: (1) Factory-reset
  • NFC Specifications
    • NFC Frequency: 13.56 MHz
    • NFC Read Range: < 30 mm
    • NFC Technology:
      • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
      • MIFARE Classic / MIFARE DESFIRE
      • Sony FeliCa™ (ID only)
      • NFC Forum tags T1T, T2T, T3T, T4T, and T5T
      • ECP 2.0
  • Operating Environment
    • Usage: Outdoor use
    • Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
    • Ambient Operating Humidity: 5 to 90% non-condensing
  • Software Information
  • UL 294 Level
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade I
  • CertificationsCE,FCC,IC,UL 294,CAN/ULC-60839-11-1
  • Document Information
    • Document Number: UA-G3
    • Version: V01
  • Software
    • Management Application: UniFi Access: Version 3.0.15 and later
