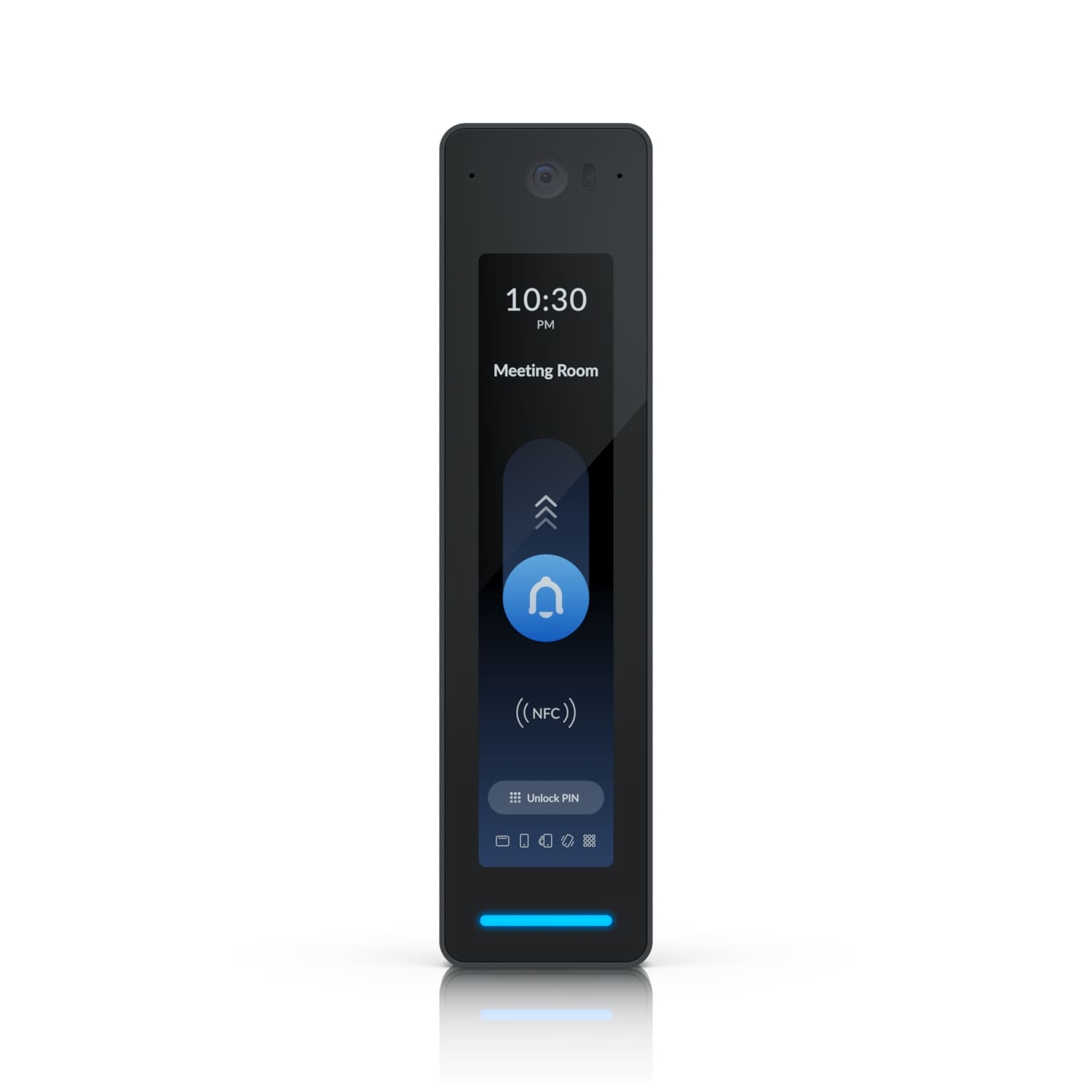

Ubiquiti G3 Reader Pro, Black, NFC, IP55, 2Yr Warr

Ubiquiti Ubiquiti G3 Reader Pro, Black, NFC, IP55, 2Yr Warr

Ubiquiti G3 Reader Pro, Black, NFC, IP55, 2Yr Warr

Ubiquiti G3 Reader Pro,Black, Third-generation, Indoor/Outdoor NFC Reader & Intercom With Apple Touch Pass Support, Outdoor IP55, 2Yrs Warr

Product Code: UA-G3-PRO-B

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$678.34 Incl. GST

Overview of the UniFi G3 Reader Pro - UA-G3-Pro-W

The Access G3 Reader Pro (UA-G3-Pro-B) is a third-generation, indoor/outdoor NFC reader and intercom system designed to enhance secure access control. Key features include:

  • Multiple Unlock Methods: Supports unlocking via NFC card, PIN, UniFi Identity mobile app, face recognition, and Apple Touch Pass.
  • Integrated Intercom: Features a doorbell with video capabilities and two-way communication, allowing users to see and speak with visitors.
  • ADA-Compliant Video: Ensures video functionality at ADA-compliant mounting heights, accommodating accessibility requirements.
  • Weather Resistance: Built with an IP55-rated enclosure, the device operates reliably in temperatures ranging from -10 to 45° C, making it suitable for various environmental conditions.
  • PoE Connectivity: Connects to the UniFi Access Hub using Power over Ethernet (PoE), simplifying installation and reducing cabling requirements.

Specifications for the UniFi G3 Reader Pro - UA-G3-Pro-W

Mechanical

  • Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
  • Weight: 136 g (4.8 oz)
  • Enclosure Material: Polycarbonate, glass
  • Mount Material: Aluminum alloy
  • Mounting:
    • Wall mount (Included)
    • Gangbox mount (Included)
    • Angle mount (Optional)
    • Junction box (Optional)
  • Weatherproofing: IP55

Hardware

  • Networking Interface: (1) GbE RJ45 port
  • Connectivity: BLE 4.2, NFC
  • Power Method: PoE
  • Power Standards:
    • UL 294 Power-limited Class 2 PSU
    • UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 6W
  • ESD/EMP Protection: Air: ±15kV, Contact: ±8kV
  • Sensor: Proximity sensor
  • Camera View Angle: H: 96.67°, V: 123.15°, D: 153.11°
  • Microphone: Yes
  • Speaker: (1) 4 ohm, 1.5W
  • LEDs: R/G/B/W/Amber
  • Button: (1) Factory-reset
  • NFC Specifications
    • NFC Frequency: 13.56 MHz
    • NFC Read Range: < 30 mm
    • NFC Technology:
      • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
      • MIFARE Classic / MIFARE DESFIRE
      • Sony FeliCa™ (ID only)
      • NFC Forum tags T1T, T2T, T3T, T4T, and T5T
      • ECP 2.0
  • Operating Environment
    • Usage: Outdoor use
    • Ambient Operating Temperature:
      • Device: -30 to 45° C (-22 to 113° F)
      • Display: -10 to 45° C (14 to 113° F)
    • *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional (Effective after firmware v1.3.28).
    • Ambient Operating Humidity: 5 to 90% non-condensing
  • Software Information
  • UL 294 Level
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade I
  • CertificationsCE,FCC,IC,UL 294,CAN/ULC-60839-11-1
  • Document Information
    • Document Number: UA-G3-Pro-W/UA-G3-Pro-B
    • Version: V01
  • Software
    • Management Application: UniFi Access: Version 3.0.15 and later
