Ubiquiti G3 Starter Kit, UniFi Access, 2Yr Warr

Ubiquiti Ubiquiti G3 Starter Kit, UniFi Access, 2Yr Warr

Ubiquiti G3 Starter Kit, UniFi Access, 2Yr Warr

Ubiquiti G3 Starter Kit, 2Yr Warr, For UniFi Access, Designed To Manage Single Door With One Reader,Spports Seamless Setup &Apple Touch Pass

Product Code: UA-G3-SK

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$532.88 Incl. GST

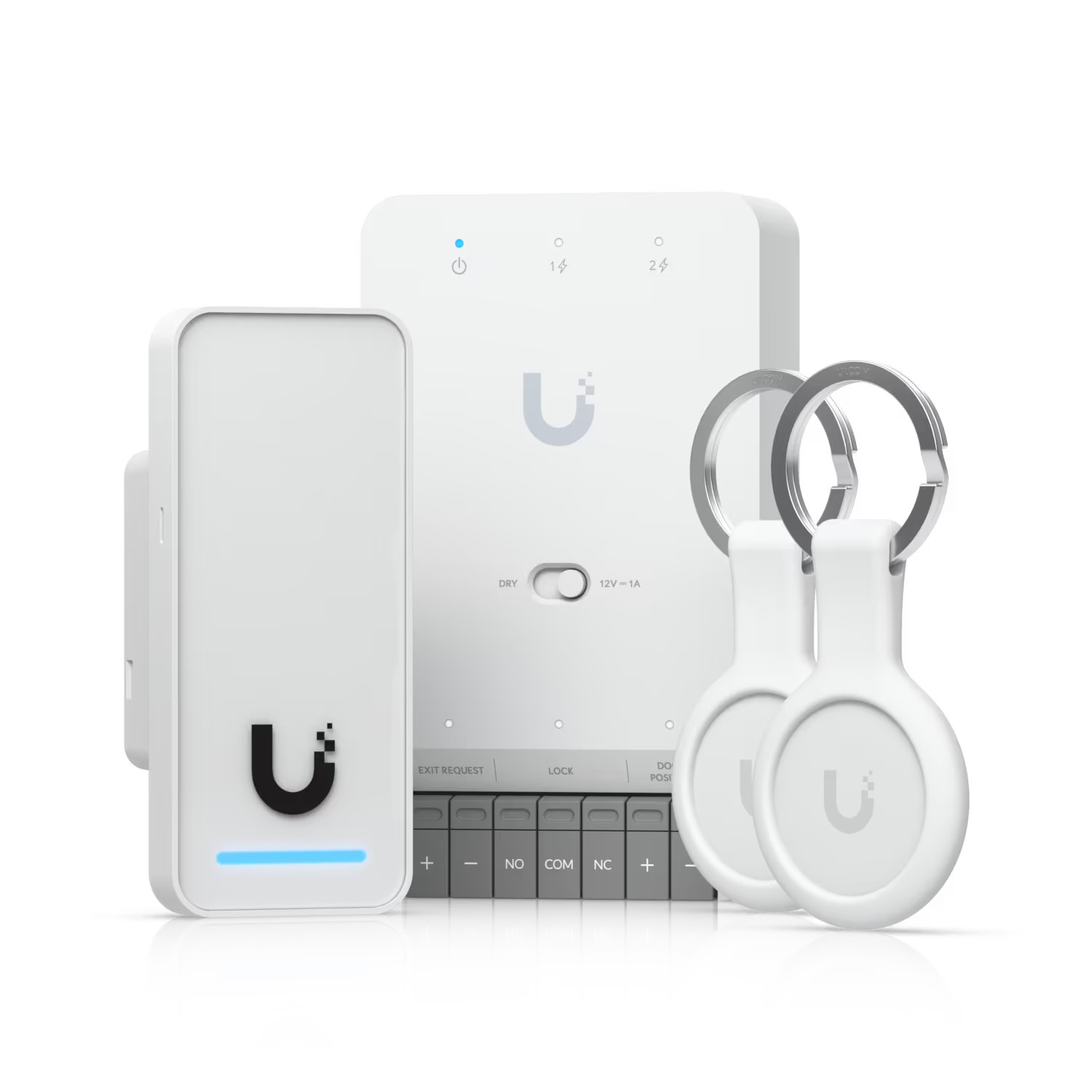

Overview of the UniFi G3 Starter Kit - UA-G3-SK

The UniFi Access G3 Starter Kit (UA-G3-SK) is an all-in-one solution designed to manage access control for a single door. Key features include:

  • Comprehensive Access Control: Manages a single door with one reader, providing a complete access control solution.
  • Seamless Setup: Offers easy installation and integration with UniFi Access systems.
  • Apple Touch Pass Support: Enables modern, secure access control compatible with Apple devices.

Specifications for the UniFi G3 Starter Kit - UA-G3-SK

UA-Hub-Door-Mini
Mechanical

  • Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
  • Weight: 190 g (6.7 oz)
  • Enclosure material: Polycarbonate, metal

Hardware

  • Networking interface: (3) GbE RJ45 ports
  • Power method: PoE++
  • Max. power consumption:
    • Without PoE output: 19W
    • With PoE output: 50W
  • PoE input: 50V DC, 1A
  • PoE output: (2) PoE ports, total 31W
  • LEDs: White/blue
  • Buttons: (1) Factory-reset, (1) Dry/Wet switch
  • Digital input: Request to exit/door position sensor
  • Output relay:
    • Dry: 30V DC, 1A
    • Wet: 12V DC, 1A
  • PoE cabling requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • Operating environment: Indoor use only
  • Ambient operating temperature: -10 to 40° C (14 to 104° F)
  • Ambient operating humidity: 5 to 90% noncondensing
  • Certifications: CE, FCC, IC

UA-G3
Mechanical

  • Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
  • Weight: 82 g (2.9 oz)
  • Enclosure material: Polycarbonate, glass
  • Mounting material: Aluminum alloy
  • Mounting: In-wall, gang box
  • Weatherproofing: IP55

Hardware

  • Networking interface: (1) 10/100 MbE RJ45 port
  • Connectivity: BLE 4.1, NFC
  • Power method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported voltage range: 48V DC
  • Max. power consumption: 5W
  • ESD/EMP protection: Air: ±15kV, Contact: ±8kV
  • Proximity sensor, Speaker (1) 8 ohm, 0.7W
  • LEDs: R/G/B/W
  • Button: (1) Factory-reset
  • NFC frequency: 13.56 MHz
  • NFC read range: < 30 mm
  • NFC technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only),NFC Forum tags T1T, T2T, T3T, T4T and T5T,ECP 2.0
  • Operating environment: Outdoor use
  • Ambient operating temperature: -30 to 45° C (-22 to 113° F)
  • Ambient operating humidity: 5 to 90% noncondensing
  • UL 294 Level
    • Destructive attack: Level I
    • Line security: Level I
    • Endurance: Level I
    • Standby power: Level I
  • UL 294 Statement
    • Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    • The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements
    • Cat 5e cabling is the minimum performance category recommended.
    • The performance category utilized should match the transmission speed required at the installation site.
    • The minimal conductor gauge permitted:
      • 26 AWG (0.13 mm²) for patch cords
      • 24 AWG (0.21 mm²) for horizontal or riser cable
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

UA-Pocket
Mechanical

  • Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
  • Weight: 16 g (0.56 oz)
  • Enclosure material: Polycarbonate, stainless steel, silicone rubber
  • Weatherproofing: IP54

Hardware

  • NFC frequency: 13.56 MHz
  • NFC technology: ISO/IEC 14443 Type A, MIFARE DESFire EV3 4K, UniFi Access Proprietary Security Protocol
  • UniFi Access Proprietary Security Protocol
  • Ambient operating temperature: -10 to 45° C (14 to 113° F)
  • Ambient operating humidity: 10 to 90% noncondensing
  • Certification: CE
