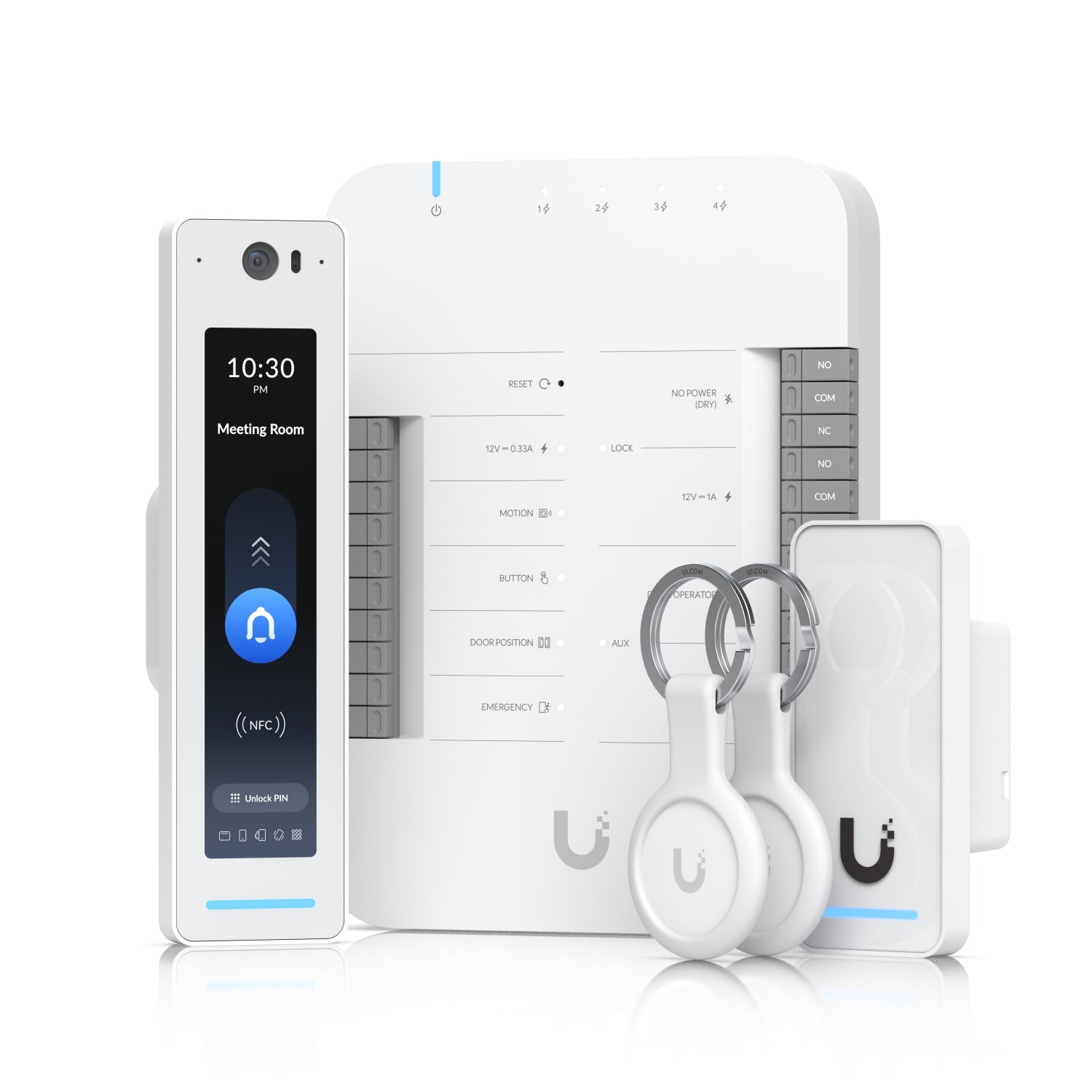

Ubiquiti G3 Starter Kit Pro, Dual Readers, 2Yr Warr

Ubiquiti Ubiquiti G3 Starter Kit Pro, Dual Readers, 2Yr Warr

Ubiquiti G3 Starter Kit Pro, Dual Readers, 2Yr Warr

Ubiquiti G3 Starter Kit Pro, Provides Complete Entry &Exit Control For Single Door With 2 Readers &Apple Touch Pass Support, 2Yr Warr

Product Code: UA-G3-SK-PRO

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$990.00 Incl. GST

Overview of the UniFi G3 Starter Kit Pro - UA-G3-SK-Pro

The G3 Starter Kit Pro (UA-G3-SK-Pro) is a comprehensive access control solution designed to manage entry and exit for a single door. Key features include:

  • Complete Door Control: Provides comprehensive entry and exit management for a single door with two readers.
  • Apple Touch Pass Support: Includes 10 free 1-year Apple Touch Passes for modern, secure access control.
  • UniFi Access Hub Integration: Seamlessly integrates with the UniFi Access Hub for centralized management.

Specification for the UniFi G3 Starter Kit Pro - UA-G3-SK-Pro

UA-Hub-Door
Mechanical

  • Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
  • Weight: 363 g (12.8 oz)
  • Enclosure Material: Polycarbonate
  • Mounting Material: Polycarbonate

Hardware

  • Networking Interface: (5) 10/100/1000 Base-T
  • Power Method: PoE++
  • UL 294: Power-limited Class 2 PSU
  • UL 60950-1/62368-1: LPS/PS2 PSU
  • Max. Power Consumption:
    • Without PoE output: 30W
    • With PoE output: 50W
  • PoE Input: 50V DC, 1A
  • PoE Output: (4) PoE, 50V DC, 15.4W each port, Max. 28W aggregated
  • LEDs: White/blue
  • Button: (1) Factory-reset
  • Digital Input: Request to exit/request to enter/remote release/door position sensor
  • Dry Output Relay:
    • Lock: 30V DC, 1A
    • Aux: 30V DC, 1A
  • Powered Output Relay:
    • Lock: 12V DC, 1A
    • Aux: 12V DC, 0.33A
    • 12V DC, 0.33A
  • Operating Environment: Indoor use only
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • UL 294 Level:
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
  • Regulatory Compliance: The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • CAN/ULC-60839-11-1 Grade: Grade assignment: 1
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Wiring Information

  • Wiring Gauge Requirements (AWG):
    • Total length to device / Output load current at 12V DC:
      Total length to deviceOutput load current at 12V DC
      100mA250mA500mA1A
      6.1 m (20 ft)22222218
      15.2 m (50 ft)22222218
      30.5 m (100 ft)22221818
  • Recommended Cable: UACC-Cable-DoorLockRelay (18 AWG)
  • PoE Cabling Requirements:
    • The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm²) for horizontal or riser cable.

UA-G3-Pro
Mechanical

  • Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
  • Weight: 136 g (4.8 oz)
  • Enclosure Material: Polycarbonate, glass
  • Mount Material: Aluminum alloy
  • Mounting Options:
    • Wall mount (Included)
    • Gangbox mount (Included)
    • Angle mount (Optional)
    • Junction box (Optional)
  • Weatherproofing: IP55

Hardware

  • Networking Interface: (1) GbE RJ45 port
  • Connectivity:
    • BLE 4.2
    • NFC
  • Power Method: PoE
  • UL 294: Power-limited Class 2 PSU
  • UL 60950-1/62368-1: LPS/PS2 PSU
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 6W
  • ESD/EMP Protection: Air: ±15kV, contact: ±8kV
  • Sensor: Proximity sensor
  • Camera View Angle:
    • H: 96.67°
    • V: 123.15°
    • D: 153.11°
  • Microphone: Yes
  • Speaker: (1) 4 ohm, 1.5W
  • LEDs: R/G/B/W/Amber
  • Button: (1) Factory-reset
  • NFC:
    • Frequency: 13.56 MHz
    • Read Range: < 30 mm
    • Technology:
      • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
      • MIFARE Classic / MIFARE DESFIRE
      • Sony FeliCa™ (ID only)
      • NFC Forum tags T1T, T2T, T3T, T4T, and T5T
      • ECP 2.0
  • Operating Environment: Outdoor use
  • Ambient Operating Temperature:
    • Device: -30 to 45° C (-22 to 113° F)
    • Display: -10 to 45° C (14 to 113° F)
    • *The display will turn off when the ambient temperature is outside the display operation range, but other functions will remain functional (Effective after firmware v1.3.28)
  • Ambient Operating Humidity: 5 to 90% noncondensing
  • Software Information: The software version of a product can be checked at https://unifi.ui.com
  • UL 294 Level:
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
  • Regulatory Compliance: The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements:
    • Cat 5e cabling is the minimum performance category recommended.
    • The performance category utilized should match the transmission speed required at the installation site.
    • The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be:
      • 26 AWG (0.13 mm²) for patch cords
      • 24 AWG (0.21 mm²) for horizontal or riser cable
  • CAN/ULC-60839-11-1 Grade: Grade assignment: I
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  • Document Number, Issue Date, and Revision Level: UA-G3-Pro-W/UA-G3-Pro-B, V01

Software

  • Management application:UniFi Access: Version 3.0.15 and later

UA-G3
Mechanical

  • Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
  • Weight: 82 g (2.9 oz)
  • Enclosure Material: Polycarbonate, glass
  • Mounting Material: Aluminum alloy
  • Mounting Options:
    • In wall
    • Gang box
  • Weatherproofing: IP55

Hardware

  • Networking Interface: (1) 10/100 MbE RJ45 port
  • Connectivity:
    • BLE 4.1
    • NFC
  • Power Method: PoE
  • UL 294: Power-limited Class 2 PSU
  • UL 60950-1/62368-1: LPS/PS2 PSU
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 5W
  • ESD/EMP Protection: Air: ±15kV, contact: ±8kV
  • Sensors: Proximity sensor
  • Speaker: (1) 8 ohm, 0.7W
  • LEDs: R/G/B/W
  • Button: (1) Factory-reset
  • NFC:
    • Frequency: 13.56 MHz
    • Read Range: < 30 mm
    • Technology:
      • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
      • MIFARE Classic / MIFARE DESFIRE
      • Sony FeliCa™ (ID only)
      • NFC Forum tags T1T, T2T, T3T, T4T, and T5T
      • ECP 2.0
  • Operating Environment: Outdoor use
  • Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
  • Ambient Operating Humidity: 5 to 90% noncondensing
  • Software Information: The software version of a product can be checked at https://unifi.ui.com
  • UL 294 Level:
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
  • Regulatory Compliance: The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements:
    • Cat 5e cabling is the minimum performance category recommended.
    • The performance category utilized should match the transmission speed required at the installation site.
    • The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be:
      • 26 AWG (0.13 mm²) for patch cords
      • 24 AWG (0.21 mm²) for horizontal or riser cable
  • CAN/ULC-60839-11-1 Grade: Grade assignment: I
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

UA-Pocket
Mechanical

  • Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.3")
  • Weight: 16 g (0.56 oz)
  • Enclosure Material: Polycarbonate, stainless steel, silicone rubber
  • Weatherproofing: IP54

Hardware

  • NFC Frequency: 13.56 MHz
  • NFC Technology:
    • ISO/IEC 14443 Type A
    • MIFARE DESFire EV3 4K
    • UniFi Access Proprietary Security Protocol
  • Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Certification: CE
