Ubiquiti G3 Reader, Apple Touch Pass, IP55, 2Yr Warr

Ubiquiti Ubiquiti G3 Reader, Apple Touch Pass, IP55, 2Yr Warr

Ubiquiti G3 Reader, Apple Touch Pass, IP55, 2Yr Warr

Ubiquiti G3 Reader, White, Compact Third-generation Access Reader With Apple Touch Pass Support, Power Via POE, Outdoor IP55, Incl 2Yr Warr

Product Code: UA-G3-W

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$299.44 Incl. GST

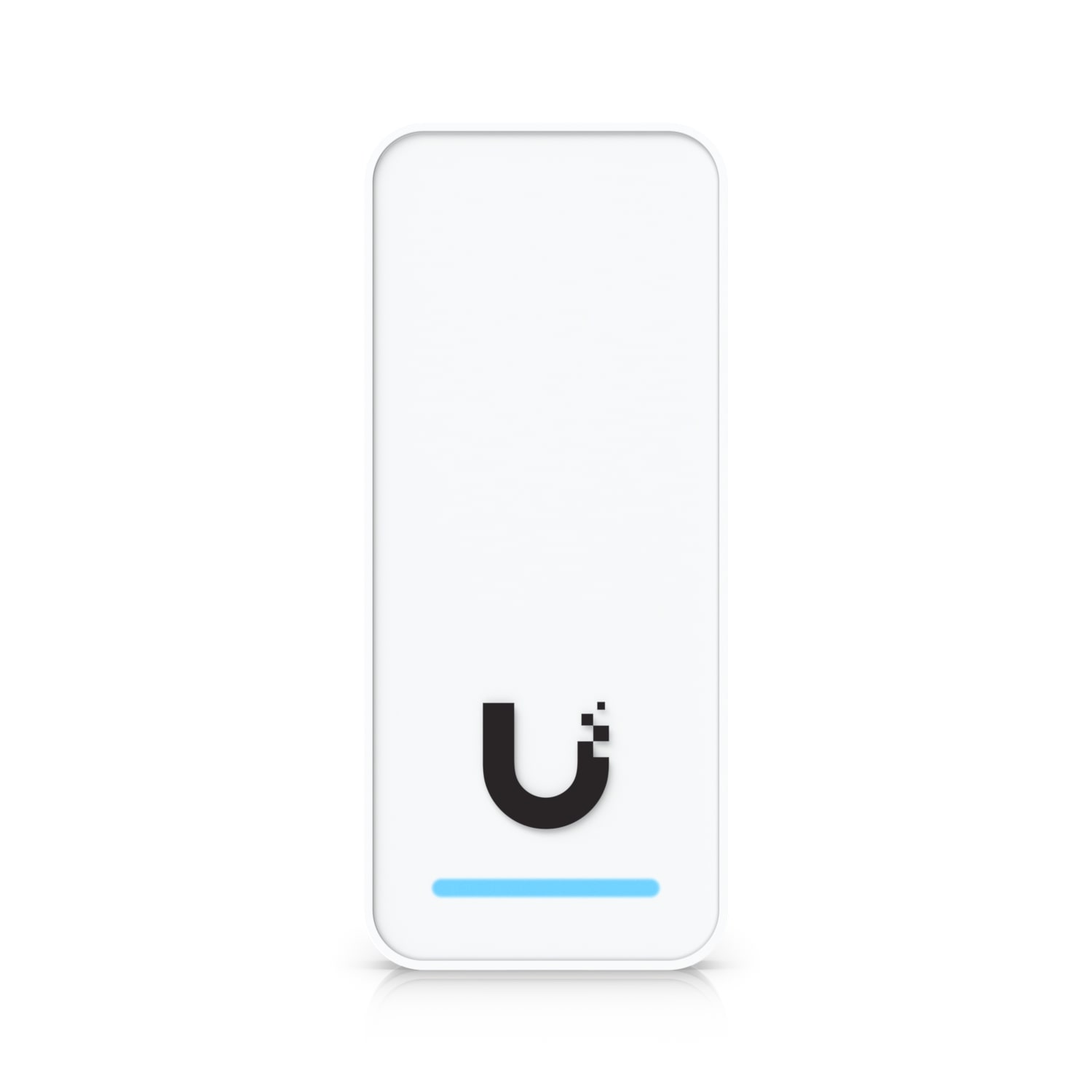

Overview of the Ubiquiti UniFi G3 Reader (model UA-G3-W)

The Ubiquiti UniFi G3 Reader (model UA-G3-W) is a compact, third-generation access control reader designed for secure and efficient entry management. It supports multiple authentication methods, including NFC cards, the UniFi Identity mobile app, and Apple Touch Pass, providing flexibility for various security needs.

  • Multiple Unlock Methods: Supports unlocking via NFC cards, the UniFi Identity mobile app, and Apple Touch Pass.
  • Request-to-Exit Functionality: Allows for hand-wave unlocking, serving as a request-to-exit device.
  • Interactive Messaging: Provides entry and exit greeting messages to users.
  • Durable Design: Features an IP55-rated weather-resistant casing, suitable for temperatures ranging from -30 to 45°C.
  • Seamless Integration: Connects to the UniFi Access Hub via Power over Ethernet (PoE) for streamlined installation.
  • Apple Touch Pass: Includes 10 free 1-year Apple Touch Passes, facilitating modern and secure access control.

Specifications for the Ubiquiti UniFi G3 Reader (model UA-G3-W)

Mechanical:

  • Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
  • Weight: 82 g (2.9 oz)
  • Enclosure Material: Polycarbonate, glass
  • Mounting Material: Aluminum alloy
  • Mounting: In wall, gang box
  • Weatherproofing: IP55

Hardware:

  • Networking Interface: (1) 10/100 MbE RJ45 port
  • Connectivity: BLE 4.1, NFC
  • Power Method: PoE,UL 294 Power-limited Class 2 PSU,UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 5W
  • ESD/EMP Protection: Air: ±15kV, Contact: ±8kV
  • Sensors: Proximity sensor
  • Speaker: (1) 8 ohm, 0.7W
  • LEDs: R/G/B/W
  • Button: (1) Factory-reset
  • NFC Frequency: 13.56 MHz
  • NFC Read Range: < 30 mm
  • NFC Technology:
    • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    • Supported Cards: MIFARE Classic, MIFARE DESFIRE, Sony FeliCa™ (ID only)
    • NFC Forum Tags: T1T, T2T, T3T, T4T, T5T
    • ECP 2.0
  • Operating Environment : Outdoor Use
  • Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
  • Ambient Operating Humidity: 5 to 90% noncondensing

Software Information:

UL 294 Level:

  • Destructive Attack: Level I
  • Line Security: Level I
  • Endurance: Level I
  • Standby Power: Level I

UL 294 Statement:

  • Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
  • The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE Cabling Requirements:

  • Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
  • The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grade:

  • Grade assignment: I

Certifications:

  • CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Software:

  • Management Application: UniFi Access: Version 3.0.15 and later
