Ubiquiti Gate Access Kit, Vehicle Control, 2Yr Warr

Ubiquiti Ubiquiti Gate Access Kit, Vehicle Control, 2Yr Warr

Ubiquiti Gate Access Kit, Vehicle Control, 2Yr Warr

Ubiquiti Gate Access Starter Kit, Control Vehicle Gate by Connect Intercom & Authorize Gate access License Plate Unlock, PoE++, 50V DC, 1A,2Yr Warr

Product Code: UA-SK-GATE

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

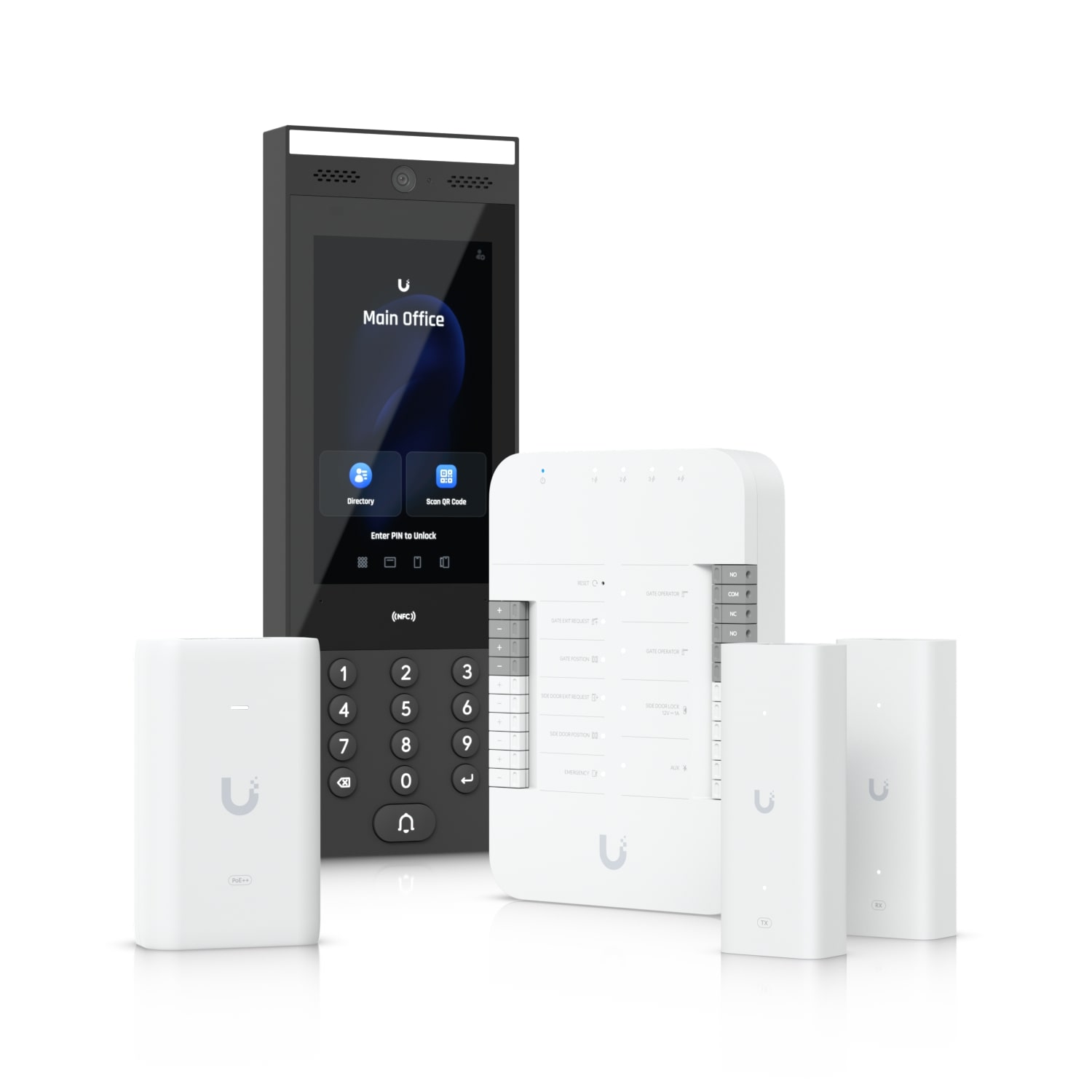

Overview of the UniFi Gate Starter Kit - UA-SK-Gate

The Gate Starter Kit (UA-SK-Gate) is a comprehensive solution for vehicle gate access control. Key features include

  • Vehicle Gate Control: Manage vehicle gate access using the integrated Intercom system.
  • License Plate Recognition: When paired with a compatible Protect AI camera, the system can automatically unlock gates upon recognizing authorized license plates.
  • Comprehensive Kit Components:
    • Gate Hub
    • Intercom
    • PoE++ Adapter
    • Two 2-wire PoE Extenders
  • Note: License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses.

Specifications for the UniFi Gate Starter Kit - UA-SK-Gate

UA-Hub-Gate
Mechanical

  • Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1")
  • Weight: 460 g (1 lb)
  • Enclosure Material: Polycarbonate
  • Mounting: Din-rail (Included)

Hardware:

  • Networking Interface: (5) 10/100/1000 Base-T
  • Power Method: PoE++
  • Certifications:
    • UL 294 Power-limited Class 2 PSU
    • UL 60950-1/62368-1 LPS/PS2 PSU
  • Max. Power Consumption:
    • Without PoE output: 22W
    • With PoE output: 50W
  • PoE Input: 50V DC, 1A
  • PoE Output: PoE passthrough, (4) PoE, 50V DC, Max. 28W
  • LEDs: White/blue (Learn more)
  • Button: (1) Factory-reset
  • Digital Input:
    • Gate exit request
    • Gate position
    • Side door exit request
    • Side door position
    • Emergency
  • Dry Output Relay:
    • (2) Operator: rated 30V DC, up to 1A
    • (1) Aux: rated 30V DC, up to 1A
  • Output Relay: Side door lock: 12V DC, up to 1A
  • Recommend max. cable length
    18 AWG
    UACC-Cable-DoorLockRelay length    		20
    AWG length    		22
    AWG length    		24
    AWG length
    UA-Lock-Electric
    (400mA)    		100 m
    (328 ft)    		66 m
    (217 ft)    		42 m
    (138 ft)    		25 m
    (82 ft)
    UA-Lock-Magnetic-270kg
    (800mA)    		46 m
    (151 ft)    		30 m
    (98 ft)    		20 m
    (66 ft)    		12 m
    (29 ft)
    UA-Lock-Magnetic-540kg
    (500mA)    		80 m
    (262 ft)    		51 m
    (167 ft)    		32 m
    (105 ft)    		20 m
    (66 ft)
    Other locks
    (1A)    		36 m
    (118 ft)    		24 m
    (79 ft)    		15 m
    (49 ft)    		9 m
    (30 ft)
  • Operating Environment:
    • Indoor use only with device itself
    • Outdoor use with waterproof junction box
  • Ambient Operating Temperature: -30 to 60° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 90% noncondensing
  • Software Information: The software version of a product can be checked at https://unifi.ui.com
  • UL 294 Level:
    • Destructive attack: Level I
    • Line security: Level I
    • Endurance: Level I
    • Standby power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements:Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade assignment: I
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  • Document Number and Issue Date / Revision Level: UA-Hub-Gate, V01

UA-Intercom
Mechanical

  • Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
  • Weight:
    • Device: 965 g (2.1 lb)
    • Bracket: 445 g (1 lb)
  • Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
  • Mount Material: Powder-coated stainless steel
  • Mounting Options:
    • Wall mount
    • Adapter to the gooseneck pedestal (Included)
    • Surface angle mount (Optional)
    • Flush mount (Optional)
    • Sunshield kit (Optional)
  • Weatherproofing: IP65

Hardware:

  • Networking Interface: (1) GbE RJ45 port
  • Connectivity:
    • Bluetooth 4.2
    • NFC
  • Power Method: PoE
  • Certifications:
    • UL 294 Power-limited Class 2 PSU
    • UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported Voltage Range: 48V DC
  • Max. Power Consumption: 13W
  • ESD/EMP Protection:
    • Air: ±15kV
    • Contact: ±8kV
  • Sensors:
    • Proximity sensor
    • ALS sensor
  • Camera:
    • Resolution: 3264 x 2448, 8 MP
    • Field of View:
      • Horizontal: 79.4°
      • Vertical: 97.5°
      • Diagonal: 118.2°
  • Display:
    • Size: 177 mm (7") diagonal
    • Resolution: 1024 x 600 (16:9)
    • Display Luminance: Max. 1000 nits (typical)
    • Touch Screen Technology: Capacitive multi-touch
  • Audio:
    • Microphone: Yes
    • Speaker: (1) 4 ohm, 2W
  • LEDs: Amber (Learn more)
  • Button: (1) Factory-reset
  • NFC:
    • Frequency: 13.56 MHz
    • Read Range: < 30 mm
    • Standards:
      • ISO 14443A, 14443B, 15693
    • Supported Technologies:
      • NFC Tag 1,2,3,4,5
      • MIFARE Classic
      • MIFARE Plus
      • MIFARE Ultralight
      • MIFARE DESFire
  • Operating Environment: Outdoor use
  • Ambient Operating Temperature:
    • Device: -30 to 60° C (-22 to 140° F)
    • Display: -25 to 60° C (-13 to 140° F)
    • *The display will turn off when the ambient temperature is outside the operational range, but other functions remain functional (Effective after firmware v1.0.66)
  • Ambient Operating Humidity: 5 to 90% noncondensing
  • Software Information: The software version can be checked at https://unifi.ui.com
  • UL 294 Level:
    • Destructive attack: Level I
    • Line security: Level I
    • Endurance: Level I
    • Standby power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements:Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade assignment: I
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  • Document Number & Revision Level: UA-Intercom, V01

UACC-Extender-2Wire-PoE-Tx/Rx
Mechanical

  • Dimensions: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
  • Weight:
    • PoE In: 77 g (2.7 oz)
    • PoE Out: 79 g (2.8 oz)
  • Enclosure Material: Polycarbonate
  • Mounting Material: Polycarbonate

Hardware:

  • Networking Interface:
    • (1) 10/100 MbE
    • (1) Homeplug AV
  • Power Method: PoE++
  • Max. Power Consumption: 3W (Without PoE output)
  • PoE Input: (1) PoE++, 50V DC, Max. 1.2A
  • PoE Output: (1) PoE+, 48V DC, 0.72A
  • ESD/EMP Protection:
    • Air: ±8kV
    • Contact: ±4kV
  • LED: White
  • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

    U-PoE++ Specifications:

    • Model: U-PoE++
    • Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
    • Weight: 210 g (7.4 oz)
    • Output Voltage: 48V DC @ 1.25A
    • LAN Activity Indicator: No
    • Gigabit LAN Port: Yes
    • Remote Reset Capability: No
    • Reset Button: No
    • Rated Voltage: 100—240V AC @ 50/60Hz
    • Input Current:
      • 1.3A @ 120V AC
      • 0.75A @ 230V AC
    • Inrush Current:
      • <100A peak @ 120V AC
      • <200A peak @ 230V AC
    • Efficiency: 85+%
    • Output Ripple: 1% max.
    • Switching Frequency: 65 kHz
    • Line Regulation: ≤ 1%
    • Load Regulation: ≤ 3%
    • Powering:
      • 2-pair powering: No
      • 4-pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
    • AC Connector: IEC-320 C6
    • Data In / PoE: RJ45 shielded socket
    • Surge Protection:
      • Difference and common mode
      • Clamping Protection: 11V data, 60V power
      • Max. Surge Discharge: 1500A (8/20 μs) power
      • Peak Pulse Current: 36A (10/1000 μs) data
      • Shunt Capacitance: <5 pF data
      • Response Time: <1 ns
    • Power Method: Universal AC input, 100—240V AC, 50/60 Hz
    • Power Supply: AC/DC
    • Supported Voltage Range: 100—240V AC
    • Max. PoE+ Wattage per Port by PSE: 60W
    • Operating Temperature:
      • Ambient: 0 to 40° C (32 to 104° F)
      • Storage: -30 to 70°C (-22 to 158° F)
    • Ambient Operating Humidity: 10 to 95% noncondensing
    • Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

    Software:

    • Management Application:
      • UniFi Access: Version 2.1.5 and later
      • UniFi Protect: Version 4.0.33 and later
