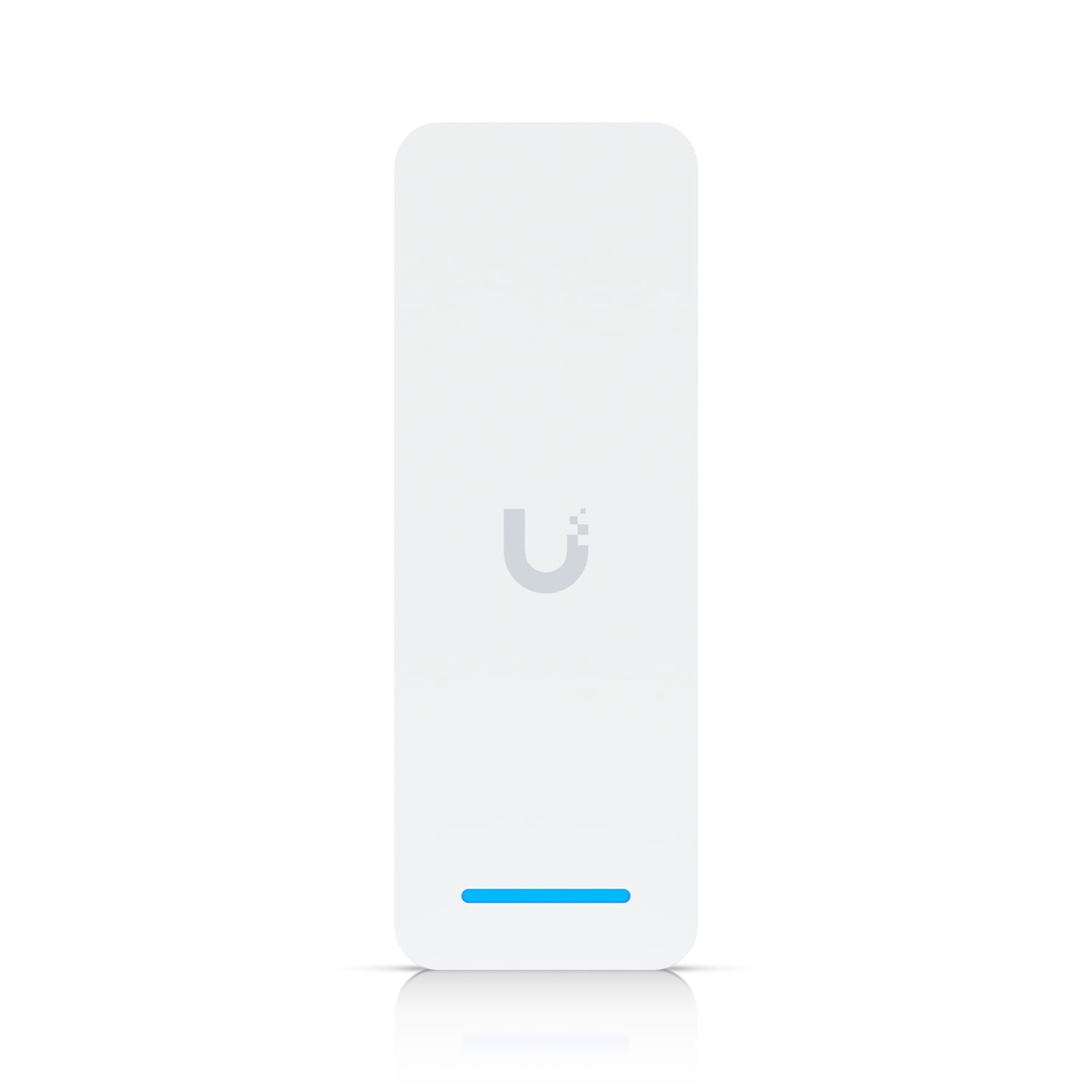

Ubiquiti Access Ultra, PoE+, Single-door Control, 2Yr Warr

Ubiquiti Ubiquiti Access Ultra, PoE+, Single-door Control, 2Yr Warr

Ubiquiti Access Ultra, PoE+, Single-door Control, 2Yr Warr

Ubiquiti Access Ultra,Tamper-resistant Access Reader, Built-in Hub,12V/1A,PoE+, Max Power 18W,Single-door Entry Control From One Device,IP55, 2Yr Warr

Product Code: UA-ULTRA

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 1 year

$222.44 Incl. GST

Overview of the UniFi Access Ultra - UA-Ultra

The Access Ultra (UA-Ultra) is an access reader with a built-in hub designed for complete, single-door entry control. Key features include:

  • Integrated Lock Terminal: Equipped with a 12V DC, 1A lock terminal for direct lock control.
  • Exit Request Input: Includes an input for exit request devices, facilitating seamless egress.
  • Multiple Unlock Methods: Supports unlocking via NFC cards or the UniFi Identity mobile app for flexible access options.
  • PoE+ Connectivity: Connects and powers through Power over Ethernet Plus (PoE+), simplifying installation.
  • Weather Resistance: Built with an IP55-rated enclosure, ensuring reliable operation in temperatures ranging from -30 to 40° C.
  • Compatibility Note: The Access Ultra is not compatible with standalone Access Hubs.

Specifications for the UniFi Access Ultra - UA-Ultra

Mechanical

  • Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5")
  • Weight: 140 g (4.9 oz)
  • Enclosure Material: Polycarbonate, aluminum alloy
  • Mounting: Wall mount, gang box mount
  • Weatherproofing: IP55

Hardware

  • Networking Interface: 10/100 MbE RJ45 port
  • Connectivity: Ethernet, BLE 4.2
  • Digital Input: (1) Exit request
  • Lock Terminals: (1) 12V DC, 1A
  • Power Method: PoE+
  • Power Standards:
    • UL 294 Power-limited Class 2 PSU
    • UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported Voltage Range: 44–57V DC
  • Max. Power Consumption: 18W
  • ESD/EMP Protection: Air: ±8kV, Contact: ±4kV
  • LEDs: R/G/B/W
  • Button: (1) Factory reset
  • Tamper Switch: Yes
  • Speaker: Buzzer
  • NFC Specifications
    • NFC Frequency: 13.56 MHz
    • NFC Read Range: < 50 mm
    • NFC Standards: ISO 14443A, 14443B, 15693
    • NFC Technology:
      • NFC Tag 1, 2, 3, 4, 5
      • MIFARE Classic
      • MIFARE Plus
      • MIFARE Ultralight
      • MIFARE DESFire
  • Operating Environment
    • Usage: Outdoor
    • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
    • Ambient Operating Humidity: 5 to 90% non-condensing
  • Software Information
  • UL 294 Level
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade I
  • CertificationsCE,FCC,IC,UL 294,CAN/ULC-60839-11-1
