Ubiquiti Cloud Gateway Max, 2.5G, 512GB SSD, 2Yr Warr

Ubiquiti Ubiquiti Cloud Gateway Max, 2.5G, 512GB SSD, 2Yr Warr

Ubiquiti Cloud Gateway Max, 2.5G, 512GB SSD, 2Yr Warr

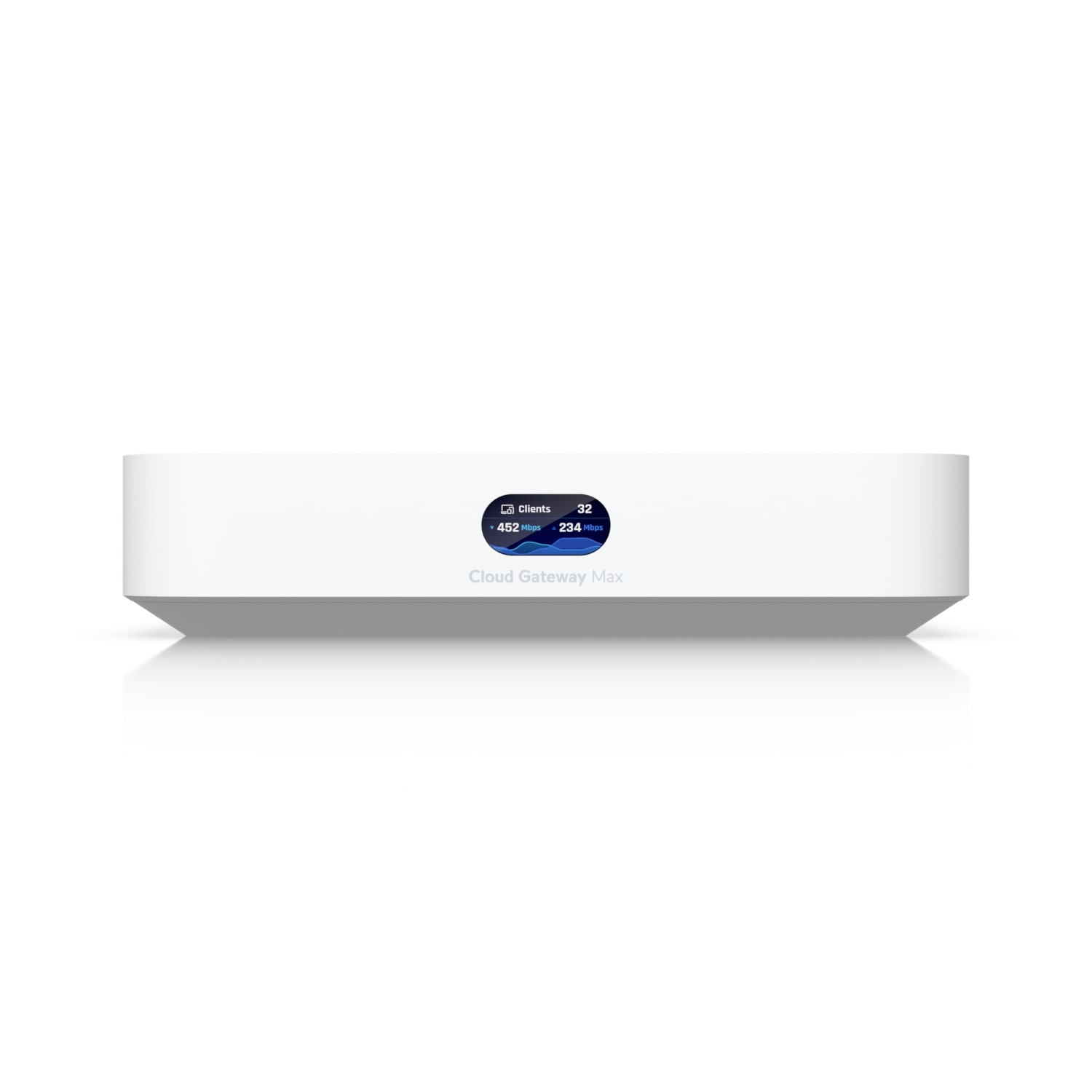

Ubiquiti Cloud Gateway Max, Compact 2.5G With 30+ UniFi device/300+ Client Support, 1.5 Gbps IPS Routing, 512GB NVMe SSD Included, 2 Yr Warr

Product Code: UCG-MAX

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$550.00 Incl. GST

Overview of the UniFi Cloud Gateway Max - UCG-Max

The UCG-Max is a compact 2.5G Cloud Gateway designed to manage over 30 UniFi devices and support more than 300 clients. Key features include:

  • High-Performance Routing: Delivers up to 2.3 Gbps routing with Intrusion Prevention System (IPS) enabled.
  • Selectable NVR Storage: Offers storage options of 512 GB, 1 TB, or 2 TB for Network Video Recorder (NVR) capabilities.
  • Multi-WAN Load Balancing: Supports multiple WAN connections for enhanced network reliability and performance.
  • Full UniFi Application Suite: Includes the complete UniFi application suite for comprehensive device management.
  • Compact Design: Features a space-saving form factor suitable for various deployment environments.
  • Optional Accessories: Compatible with accessories like the Floating Mount for flexible installation options.

Specifications for the UniFi Cloud Gateway Max - UCG-Max

Overview

  • Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
  • UniFi Application Suite
    • Network: Yes
    • Protect: Yes
    • Access: Yes
    • Talk: Yes
    • Connect: Yes
  • Managed UniFi Devices: 30+
  • Managed Cameras
    • (15) HD
    • (8) 2K
    • (5) 4K
  • Simultaneous Users Connected: 300+
  • Ports
    • Default WAN Ports: (1) 2.5 GbE RJ45
    • LAN Ports: (4) 2.5 GbE RJ45
  • IDS/IPS Throughput: 2.3 Gbps
  • Form Factor: Compact desktop

Security

  • Stateful Firewall: Yes
  • Application-Aware Layer 7 Firewall: Yes
  • DPI & Traffic Identification: Yes
  • Zone-Based Firewall Advanced Filtering: Yes
  • Content Filtering: Yes
  • Intrusion Prevention (IPS/IDS): Yes
  • Ad Blocking: Yes
  • IDS/IPS Signatures: 55,000+ with CyberSecure
  • VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN

  • License-Free SD-WAN: Yes
  • Site-to-Site VPN: Site Magic (Yes)
  • IPsec: Yes
  • OpenVPN: Yes
  • VPN Server:
    • Identity Endpoint One-Click VPN: Yes
    • Teleport Zero-Configuration VPN: Yes
    • WireGuard: Yes
    • OpenVPN: Yes
    • L2TP: Yes
  • VPN Client:
    • OpenVPN: Yes
    • WireGuard: Yes

Networking

  • Multi-WAN Load Balancing: Yes
  • Dynamic Routing (OSPF): Yes
  • Advanced QoS: Yes
  • Multicast DNS (mDNS): Yes
  • Advanced NAT: Yes
  • Integrated RADIUS Server: Yes
  • RADIUS over TLS (RadSec): Yes
  • Additional Internet Failover with UniFi LTE Backup: Yes
  • Internet Quality and Outage Reporting: Yes
  • MAC Address Table Size: 2,000
  • Policy-based WAN and VPN Routing: Yes
  • Customizable DHCP Server: Yes
  • IPv6 ISP Support: Yes
  • IGMP Proxy: Yes

Hardware

  • NVR Storage: Selectable NVMe SSD up to 2 TB
  • Max. Power Consumption: 16.1W
  • Power Method: USB Type-C (5V DC/5A)
  • Power Supply: USB Type-C (5V DC/5A) (Adapter included)
  • Supported Voltage Range: 100—240V AC
  • System Memory: 3 GB
  • Weight:
    • Without SSD: 460 g (1 lb)
    • With SSD: 519 g (1.1 lb)
  • Enclosure Material: Polycarbonate
  • LCM Display: 0.96" status display

Management

  • Ethernet: Yes
  • Bluetooth: Yes
  • LEDs
    • Ethernet: Yes
  • ESD/EMP Protection
    • Air: ± 8kV
    • Contact: ± 4kV
  • Operating Conditions
    • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
    • Ambient Operating Humidity: 5 to 95% non-condensing
  • Certifications
    • CE, FCC, IC
  • Button
    • (1) Factory-reset

    • Software

    • Application Requirements: Mobile App -UniFi iOS™ and Android™:Version 10.17.2 and later
