Ubiquiti Device Bridge, Wireless PoE Adapter, 2Yr Warr

Ubiquiti Ubiquiti Device Bridge, Wireless PoE Adapter, 2Yr Warr

Ubiquiti Device Bridge, Wireless PoE Adapter, 2Yr Warr

Ubiquiti Device Bridge,Plug-and-play, Wireless Bridging PoE Adapter with Integrated UniFi WiFi Auto-Link, Incl 2Yr Warr

Product Code: UDB

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

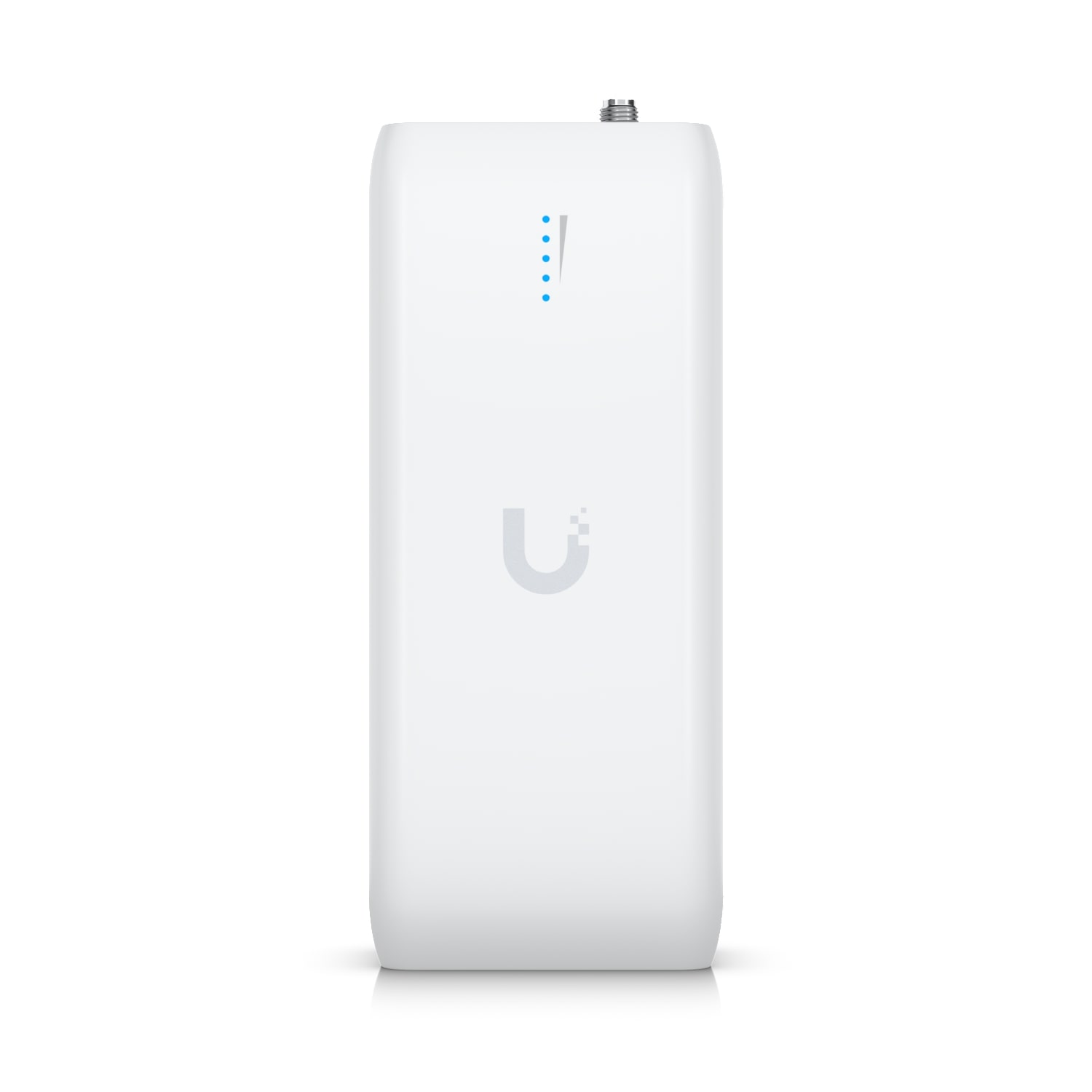

Overview of the UniFi Device Bridge - UDB

The UniFi Device Bridge (UDB) is a plug-and-play, wireless bridging Power over Ethernet (PoE) adapter designed to seamlessly integrate with UniFi networks. Key features include:

  • Integrated UniFi WiFi Auto-Link: Simplifies the bridging process by automatically linking to existing UniFi WiFi networks.
  • PoE Adapter: Facilitates easy installation and power management.
  • Compatibility: Requires UniFi Consoles and Access Points (APs) to have the latest software updates installed.

Specifications for the UniFi Device Bridge - UDB

Overview

  • Dimensions: 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
  • WiFi Standard: WiFi 5
  • Spatial Streams: 2
  • Mounting Locations: Wall, table
  • Power Method: 100—240V AC, 0.45A Max., 50/60 Hz

Performance

  • MIMO (5 GHz): 2 x 2
  • Max. Data Rate (5 GHz): 866.7 Mbps (BW80)
  • Antenna Gain (5 GHz):
    • Internal antenna: 5 dBi
    • External omni antenna: 4 dB
  • Max. TX Power (5 GHz): 21 dBm
  • Supported Data Rates:
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    • 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
  • Wireless Security: WPA2 AES (Always On)

Hardware

  • Max. Power Consumption: 25W (AC input), 10W (Excluding PoE output)
  • Supported Voltage Range: 100—240V AC
  • Networking Interface: (1) GbE RJ45 port
  • Antennas:
    • (1) Internal antenna
    • (1) RP-SMA connector for external omni-antenna
  • Management: WiFi
  • Weight: 200 g (7.1 oz)
  • Mount Material: Polycarbonate
  • Enclosure Material: Polycarbonate
  • Button: (1) Factory-reset
  • LEDs
    • System:
      • (4) Blue: signal
      • (1) White/blue: indicator
  • Channel Bandwidth: 20/40/80 (MHz)
  • Certifications: CE, FCC, IC
  • Operating Frequency
    • US/CA:
      • U-NII-1: 5150 - 5250 MHz
      • U-NII-2A: 5250 - 5350 MHz
      • U-NII-2C: 5470 - 5725 MHz
      • U-NII-3: 5725 - 5850 MHz
    • Worldwide: 5150 - 5875 MHz
  • Operating Conditions
    • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
    • Ambient Operating Humidity: 5 to 95% non-condensing
