Ubiquiti Mobile Router, GPS, Plug-and-Play, 2Yr Warr

Ubiquiti Ubiquiti Mobile Router, GPS, Plug-and-Play, 2Yr Warr

Ubiquiti Mobile Router, GPS, Plug-and-Play, 2Yr Warr

Ubiquiti Mobile Router, Managed Mobile WiFi Router Brings Plug-and-play Connectivity To Any Environment, Integrated GPS, 2Yr Warr

Product Code: UMR

For price and availability, click request quote


Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]

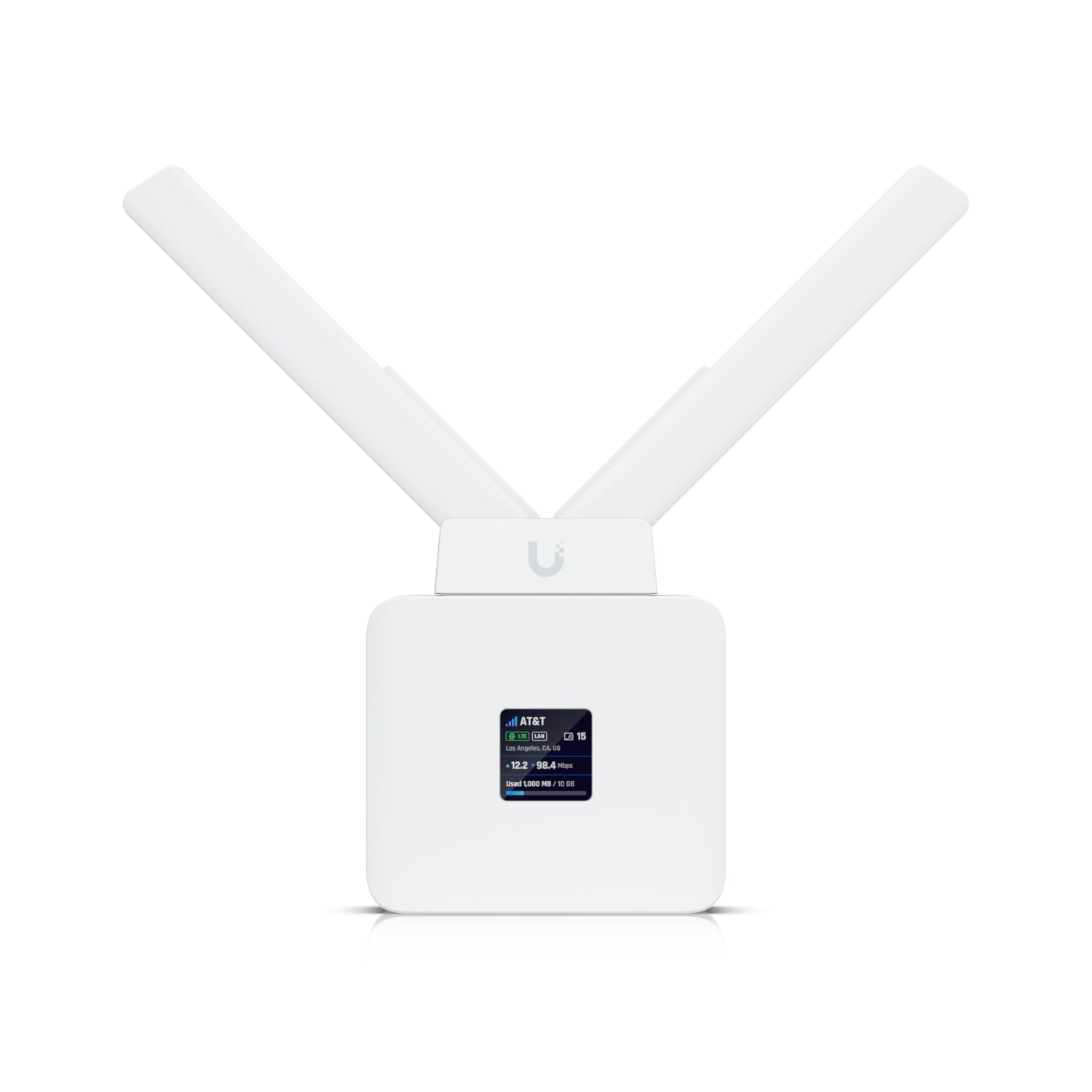

Overview of the UniFi Mobile Router - UMR

The UniFi Mobile Router (UMR) is a managed mobile WiFi router designed to provide seamless connectivity in various environments. It comes with a pre-installed AT&T nano-SIM offering multiple data plan options, or users can opt to use their own AT&T nano-SIM.

  • LTE Connectivity: Equipped with an LTE Category 4 radio, supporting download speeds up to 150 Mbps and upload speeds up to 50 Mbps, depending on network coverage and performance.
  • Networking Interfaces: Includes two Gigabit Ethernet RJ45 ports, with one supporting PoE output (requires PoE+ input for PoE passthrough).
  • Power Options: Can be powered via:
    • UniFi PoE switch (48–54V DC, 0.625A)
    • USB Type-C (5V DC, 3A)
    • 4-pin ATX DC power socket (9V DC, 1A)
  • WiFi Standards: Supports 802.11 b/g/n (WiFi 4) on the 2.4 GHz band with data rates up to 150 Mbps.
  • Management and Monitoring: Offers secure remote access and full management through the UniFi Mobility Portal with an optional Mobility Cloud subscription ($2/month per router). Basic management, such as WiFi configuration, is available locally via the UniFi mobile app when connected to the router's WiFi.
  • Additional Features: Includes integrated GPS for location tracking and supports automatic failover between LTE and wired WAN connections to ensure uninterrupted connectivity.

Specifications for the UniFi Mobile Router - UMR

Mechanical:

  • Dimensions: 220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")
  • Weight:
    • Without mount: 257 g (9.1 oz)
    • With mount: 303 g (10.7 oz)
  • Enclosure Material: Polycarbonate
  • Mount Material:
    • Wall mount: Polycarbonate
    • DIN rail mount: Steel

Hardware

  • Processor: 74 Kc MIPS processor at 775 MHz
  • Memory: 128 MB DDR2
  • Networking Interface: (2) GbE RJ45 ports,LTE Category 4 radio, WiFi 4
  • Management Interface: Ethernet, WiFi
  • PoE Interface:
    • (1) PoE input
    • (1) PoE output* (Max. 10W) (*Requires a PoE+ switch.)
  • SIM: Pre-installed AT&T data-only nano SIM
  • LTE Bands: B2, B4, B5, B12, B14, B66
  • Operator: AT&T network
  • LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
  • WiFi Standards: 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
  • GPS: Yes
  • Antennas:
    • (1) External LTE antenna (main + aux) with TS9 male connectors
    • (1) Internal WiFi 2.4 GHz antenna
    • (1) Internal GPS antenna
  • Power Supply
    • UniFi PoE switch (48—54V DC, 0.625A)
    • USB Type-C (5V DC, 3A)
    • 4-pin* ATX DC power socket (9V DC, 1A) (*Refer to Installation Guide for power socket pinout.)
  • Power Consumption
    • Max. Power Consumption: 9W
  • Display & Controls
    • LCM Display: 1.3" screen
    • Button: Factory reset
  • Mounting
    • DIN rail/wall mount (Included)
  • Operating Conditions
    • Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
    • Ambient Operating Humidity: 5 to 95% non-condensing
  • CertificationsFCC,IC,PTCRB,AT&T
  • Supported WiFi Data Rates
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n (WiFi 4): 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
