Ubiquiti UMR-Ultra, Compact LTE Router, IoT, 2Yr Warr

Ubiquiti UMR-Ultra, Ultra-compact Managed LTE Mobile Router, IoT Applications Integrated WiFi, WAN Failover,DC Power Input Supportï¼Œ2Yr Warr

Product Code: UMR-ULTRA

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$182.12 Incl. GST

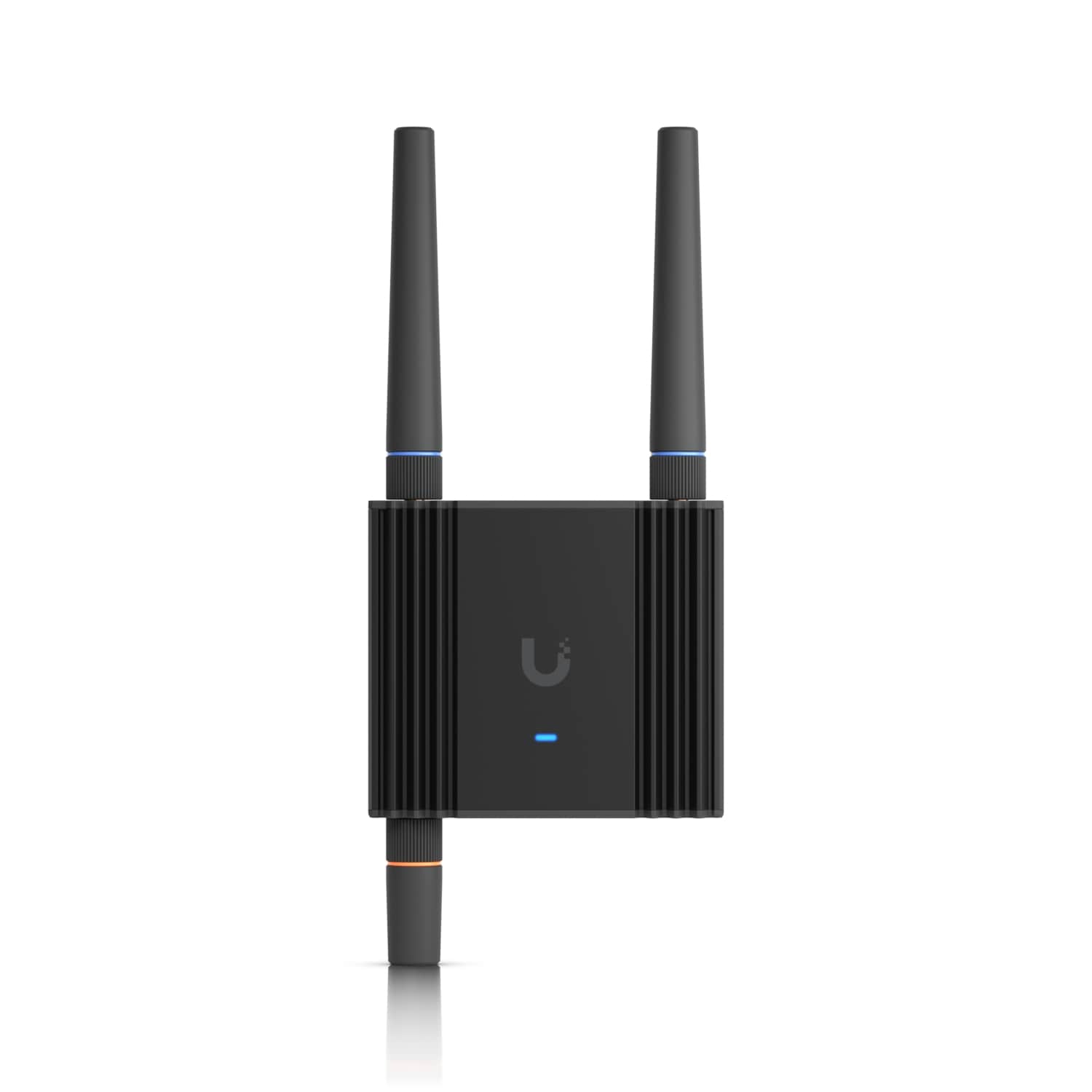

Overview of the UniFi Mobile Router Ultra - UMR-Ultra

The Mobile Router Ultra (UMR-Ultra) is an ultra-compact, managed LTE mobile router designed for IoT applications. Key features include:

Integrated LTE Connectivity: Provides reliable internet access for IoT devices.
Wired WAN and WiFi Support: Offers flexible connectivity options.
Automatic Failover: Ensures continuous operation by switching to backup connections when needed.
DC Power Input Support: Supports power input via USB Type-C or a 4-pin DC power socket.

Mechanical

Dimensions:
- Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1")
- With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1")
Weight:
- Device: 200 g (7.1 oz)
- DIN rail/wall mounts: 20 g (0.7 oz)
Enclosure Material: Polycarbonate, aluminum alloy
Mount Material: Polycarbonate

Hardware

Management Interface: Ethernet, WiFi
Networking Interface: (2) FE RJ45 ports
LTE Category: 4 radio
WiFi Standard: WiFi 4
Power Supply:
- USB Type-C (5V DC/2A)
- 4-pin ATX DC power socket (9—30V DC)
Max. Power Consumption: 5.7W
SIM: nano SIM
LTE Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
WiFi Standards: WiFi 4, 2.4 GHz, 20/40 MHz
Max. WiFi TX Power: 17 dBm
Antenna SMA Ports:
- (1) Mobile 1: SMA female connector, supports 1Rx only
- (1) Mobile 2: SMA female connector, supports 1Tx and 1Rx
- (1) WiFi: RP-SMA female connector
External Antennas:
- (2) Mobile/LTE antennas with SMA male connectors
- (1) WiFi antenna with RP-SMA male connector
LED: Status: blue/white
Button: Factory reset
Mounting: DIN rail/wall mount (Included)
Operating Conditions
- Ambient Operating Temperature: -30 to 70° C (-22 to 158° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

Supported WiFi Data Rates:
