Ubiquiti Pro HD 24, Layer 3 Switch, 10G SFP+, 2Yr Warr

Ubiquiti Ubiquiti Pro HD 24, Layer 3 Switch, 10G SFP+, 2Yr Warr

Ubiquiti Pro HD 24, Layer 3 Switch, 10G SFP+, 2Yr Warr

Ubiquiti Pro HD 24, Professional-grade, Layer 3 Etherlighting Switch,(2) 10 GbE, (22) 2.5 GbE, (4) 10G SFP+ Ports, 2 Yr Warr

Product Code: USW-PRO-HD-24

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$1,069.44 Incl. GST

Overview of the UniFi Pro HD 24 - USW-Pro-HD-24

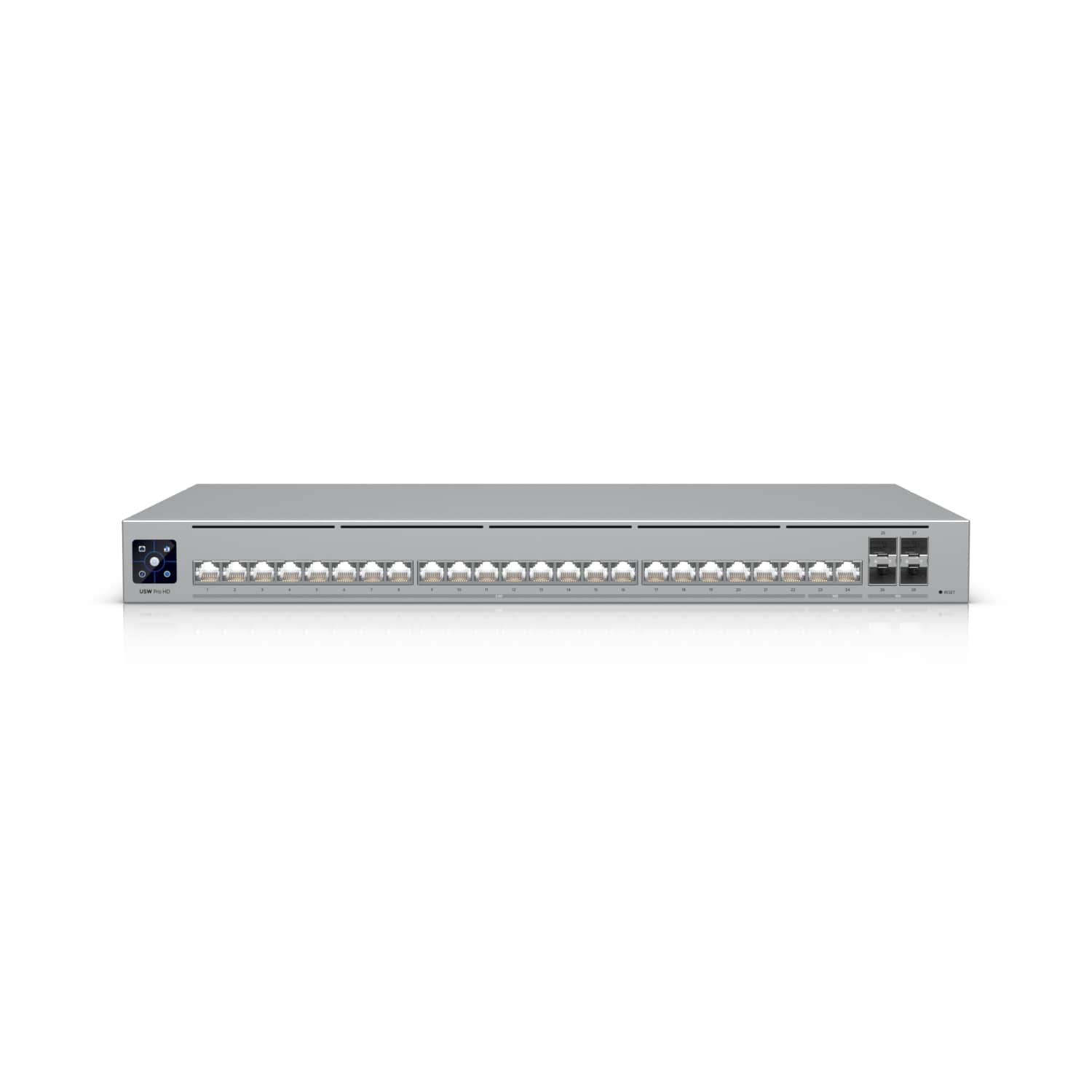

The UniFi Switch Pro HD 24 is a professional-grade, Layer 3 Etherlighting™ switch designed to deliver high-performance networking solutions. It features a comprehensive array of ports and robust hardware specifications to meet the demands of modern network infrastructures.

Specifications for the UniFi Pro HD 24 - USW-Pro-HD-24

Overview

  • Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
  • Port Layout:
    • 2.5 GbE RJ45: 22
    • 10 GbE RJ45: 2
    • 10G SFP+: 4
  • Redundancy: DC Power Backup
  • Layer 3 Support: Yes
  • Form Factor: Rack mount (1U)
  • Etherlighting™: Yes

Performance:

  • Switching Capacity: 230 Gbps
  • Total Non-Blocking Throughput: 115 Gbps
  • Forwarding Rate: 171.12 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000
  • L3 Table Size:
    • ARP Entries: 12,000
    • IPv4 Routes: 12,000
  • Packet Buffer Size: 2 MB

Layer 3 Features:

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features:

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes

Hardware:

  • Max. Power Consumption: 60W
  • Power Method:
    • (1) Universal input, 100—240V AC, 50/60 Hz
    • (1) USP RPS DC input
  • Power Input Method: AC input
  • Power Supply: AC/DC, internal, 60W
  • Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR
  • Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr
  • Weight:
    • Without mounting brackets: 4.2 kg (9.2 lb)
    • With mounting brackets: 4.3 kg (9.4 lb)
  • Enclosure Material: SGCC steel
  • Supported Rack Depth: 400~1200 mm (15.7-47.2")
  • LCM Display: 1.3" touchscreen
  • Operating Conditions:
    • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
    • Ambient Operating Humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • Etherlighting™:
    • Ethernet: Yes
    • SFP+: Yes
