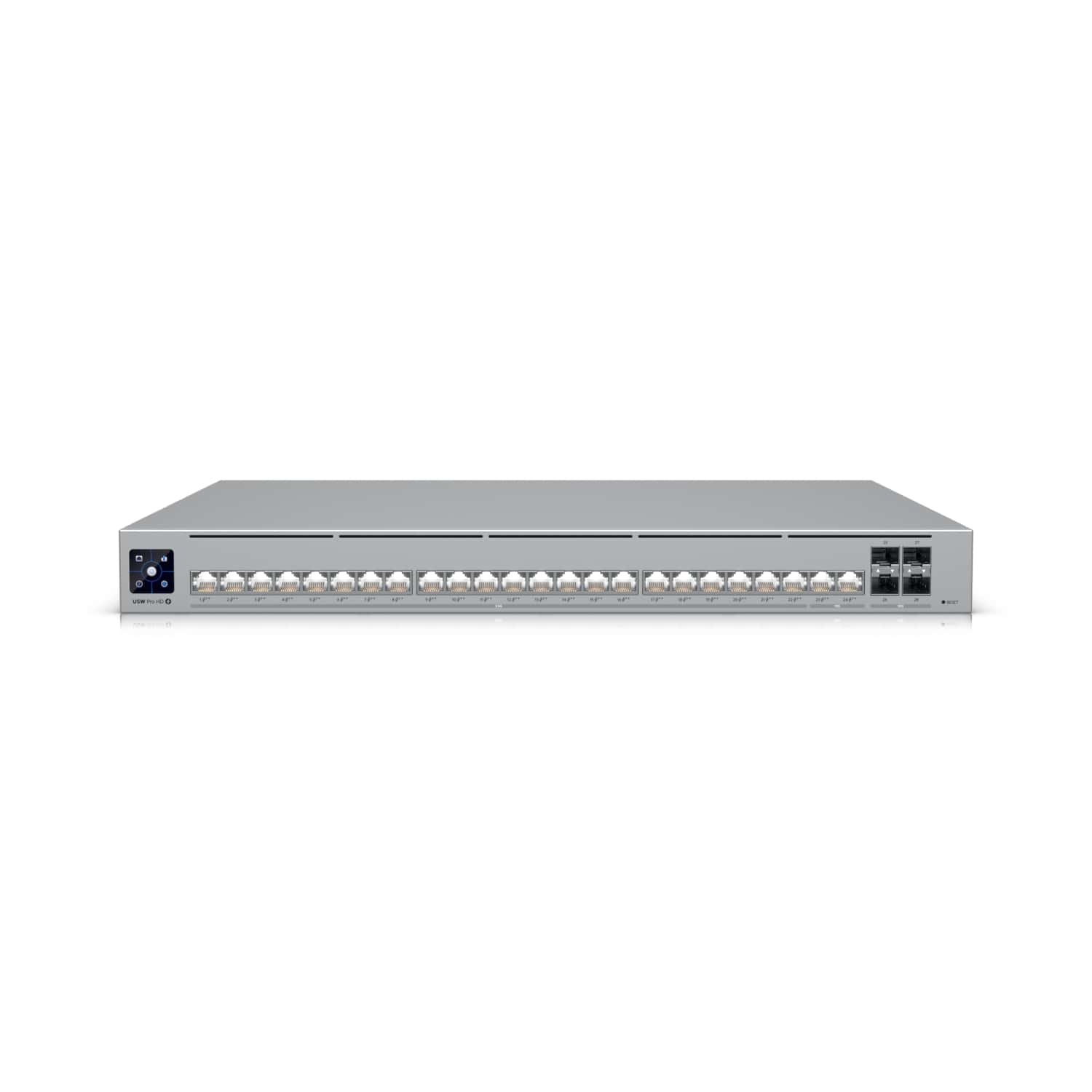

Ubiquiti Pro HD 24 PoE Switch, 10G SFP+, 2Yr Warr

Ubiquiti Ubiquiti Pro HD 24 PoE Switch, 10G SFP+, 2Yr Warr

Ubiquiti Pro HD 24 PoE Switch, 10G SFP+, 2Yr Warr

Ubiquiti Pro HD 24 PoE,Professional-grade, Layer 3 Etherlighting Switch, (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, (4) 10G SFP+ Ports. 2 Yr Warr

Product Code: USW-PRO-HD-24-POE

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$1,709.88 Incl. GST

Overview of the UniFi Pro HD 24 PoE - USW-Pro-HD-24-PoE

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

  • 24× 2.5 GbE PoE++ ports: Provides up to 60W per port for high-power devices.
  • 2× 10GbE SFP+ ports: Supports high-speed uplinks for improved network efficiency.
  • Total PoE budget of 600W: Powers multiple devices like APs, cameras, and VoIP phones.
  • Layer 3 capabilities: Supports static routing, DHCP server, and inter-VLAN routing.
  • 1U rack-mountable design: Fits into standard IT racks for easy deployment.
  • Redundant power support: Compatible with UniFi SmartPower RPS for backup power.
  • Silent cooling system: Advanced thermal management for low-noise operation.
  • UniFi Controller integration: Centralized configuration, monitoring, and automation.

Specifications for the UniFi Pro HD 24 PoE - USW-Pro-HD-24-PoE

Overview

  • Dimensions: 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
  • Port Layout:
    • 2.5 GbE RJ45: 22 (All PoE++)
    • 10 GbE RJ45: 2 (All PoE++)
    • 10G SFP+: 4
  • Max. PoE Output: Up to PoE++
  • Total PoE Availability: 600W
  • Redundancy: DC Power Backup
  • Layer 3: Yes
  • Form Factor: Rack mount (1U)
  • Etherlighting™: Yes

Performance:

  • Switching Capacity: 230 Gbps
  • Total Non-Blocking Throughput: 115 Gbps
  • Forwarding Rate: 171 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000

L3 Table Size:

  • ARP Entries: 12,000
  • IPv4 Routes: 12,000
  • Packet Buffer Size: 2 MB

Layer 3 Features:

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features:

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles: Yes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration: Yes (Querier, Fast Leave, Router Port)
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes

Hardware:

  • PoE Ports: PoE++ (24)
  • Max. PoE Wattage per Port by PSE:
    • PoE: 15.4W
    • PoE+: 32W
    • PoE++: 64W
  • Max. Power Consumption:
    • 60W (Excluding PoE Output)
    • 660W (Including PoE Output)
  • Power Method:
    • (1) Universal input, 100—240V AC, 50/60 Hz
    • (1) USP RPS DC input
  • Power Input Method: AC input
  • Power Supply: AC/DC, internal, 660W
  • Supported Voltage Range: 100—240V AC
  • Management: Ethernet AR
  • Weight:
    • Without mounting brackets: 6.2 kg (13.7 lb)
    • With mounting brackets: 6.3 kg (13.9 lb)
  • Enclosure Material: SGCC steel
  • Supported Rack Depth: 600 - 1,200 mm (23.6- 47.2")
  • LCM Display: 1.3" touchscreen
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • Etherlighting™:
    • Ethernet: Yes
    • SFP+: Yes
