Ubiquiti Pro Max 16 Switch, Layer 3, 2Yr Warr

Ubiquiti Ubiquiti Pro Max 16 Switch, Layer 3, 2Yr Warr

Ubiquiti Pro Max 16 Switch, Layer 3, 2Yr Warr

Ubiquiti UniFi Network,Pro Max 16 Switch,16-port, Layer 3 Etherlighting, 2.5 GbE, Power Supply 5V, 25W, Versatile Mounting Options.2Yr Warr Promo

Product Code: USW-PRO-MAX-16

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$606.22 Incl. GST

Overview of the UniFi Pro Max 16 - USW-Pro-Max-16

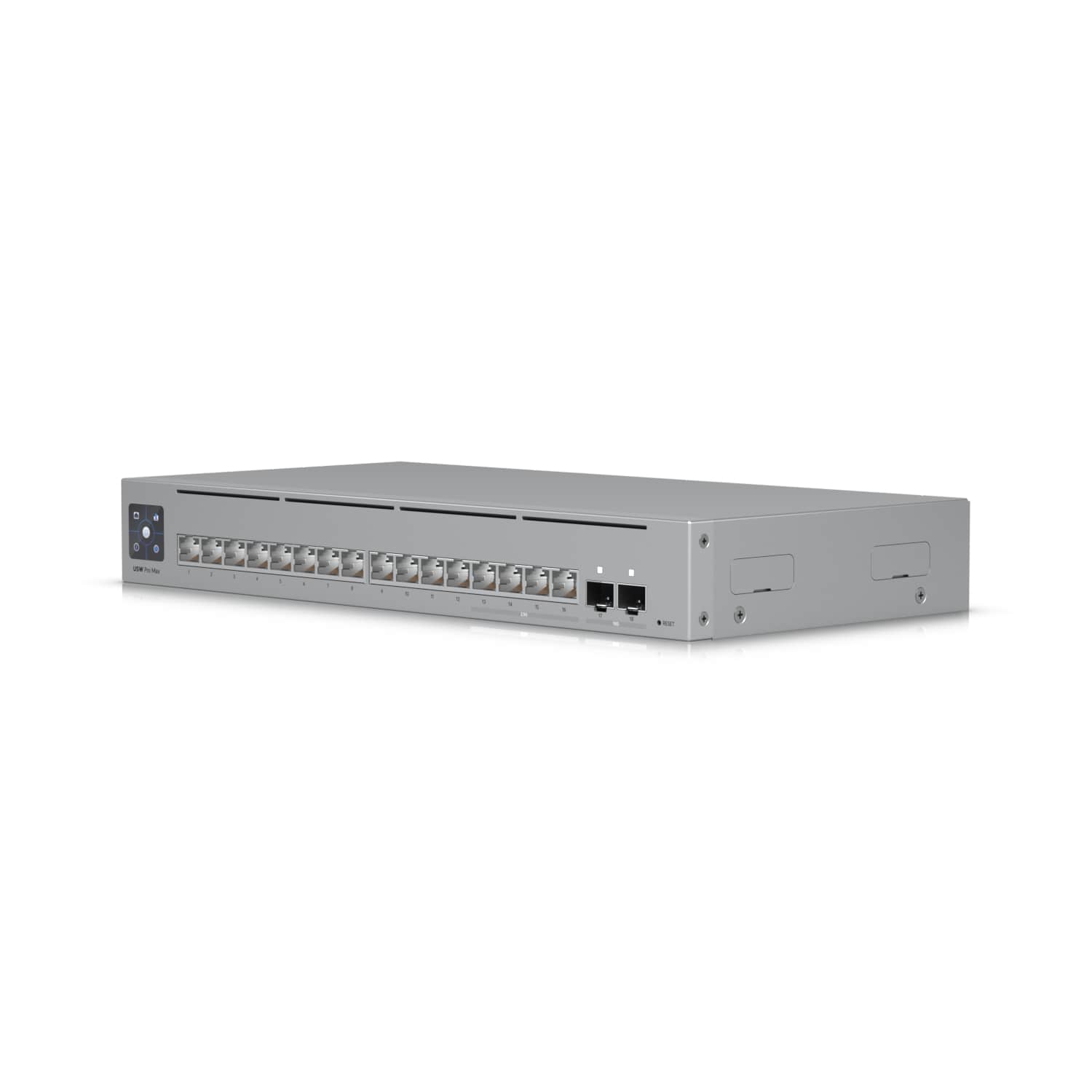

The UniFi Switch Pro Max 16 (USW-Pro-Max-16) is a 16-port, Layer 3 Etherlighting™ switch designed for high-performance networking

Specifications for the UniFi Pro Max 16 - USW-Pro-Max-16

Overview

  • Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
  • Port Layout:
    • 1 GbE RJ45: 12
    • 2.5 GbE RJ45: 4
    • 10G SFP+: 2
  • Layer 3: Yes
  • Form Factor: Rack mount (1U), desktop, wall
  • Etherlighting™: Yes

Performance:

  • Switching Capacity: 84 Gbps
  • Total Non-Blocking Throughput: 42 Gbps
  • Forwarding Rate: 62 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000
  • L3 Table Size:
    • ARP Entries: 6,000
    • IPv4 Routes: 512
  • Packet Buffer Size: 1.5 MB

Layer 3 Features:

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features:

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles: Yes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration: Yes (Querier, Fast Leave, Router Port)
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes

Hardware:

  • Max. Power Consumption: 25W
  • Power Method: AC/DC Adapter (included)
  • Power Input Method: USB Type-C, 5V DC, 5A
  • Power Supply: AC/DC, external, 25W
  • Supported Voltage Range: 4.8—5.2V DC/USB
  • Management: Ethernet, AR
  • Heat Dissipation (Excluding PoE Output): 85.3 BTU/hr
  • Weight: 1.95 kg (4.3 lb)
  • Enclosure Material: SGCC steel
  • Supported Rack Depth: 400~1200 mm (15.7-47.2")
  • LCM Display: 1.3" touchscreen
  • Ambient Operating Conditions:
    • Temperature: -5 to 40° C (23 to 104° F)
    • Humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • Etherlighting™:
    • Ethernet: Yes
    • SFP+: Yes
