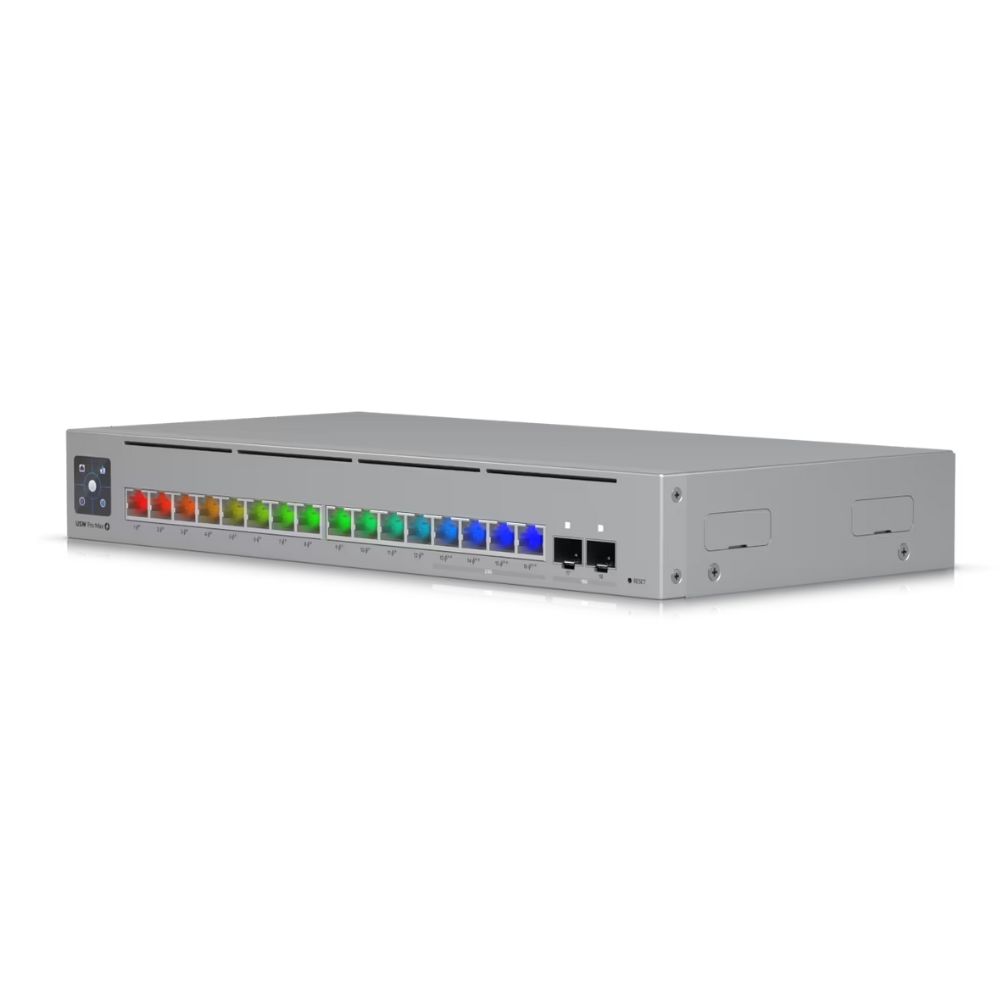

Ubiquiti UniFi Network,Pro Max 16 PoE Switch,16-port, Layer 3 Etherlighting, 2.5 GbE, PoE++ Output, Versatile Mounting Option,180W PoE, 2Yr Warr
Product Code: USW-PRO-MAX-16-POE
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Overview of the UniFi Switch Pro Max 16 PoE (USW-Pro-Max-16-PoE)
A Layer 3 managed switch designed for small to medium-sized networks, offering high-speed connectivity, PoE power, and silent operation.
Key Features:
- Port Configuration: 12× 1G PoE+, 4× 2.5G PoE++, 2× 10G SFP+
- Power over Ethernet: 180W total PoE budget (PoE+ up to 32W, PoE++ up to 64W)
- Performance: 84 Gbps switching capacity, 42 Gbps throughput, 62 Mpps forwarding rate
- Management: UniFi Network Controller & mobile app
- Layer 3 & 2 Features: DHCP, VLAN routing, LACP, STP, QoS, IGMP snooping
- Design: Fanless for silent operation, compact (325.1 × 160 × 43.7 mm), desktop/wall/rack mountable
- Etherlighting™ Technology: Color-coded port status indicators
- Power Supply: External 210W AC/DC adapter, 50–54V DC
Ideal for businesses needing efficient, high-performance networking.
Specifications for the UniFi Switch Pro Max 16 PoE (USW-Pro-Max-16-PoE)
Overview
- Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
- Form Factor: Rack mount (1U), desktop, wall
- Etherlighting™: Yes
Port Layout
- 1 GbE RJ45: 12 (All PoE+)
- 2.5 GbE RJ45: 4 (All PoE++)
- 10G SFP+: 2
Power Over Ethernet (PoE)
- Max. PoE Output: Up to PoE++
- Total PoE Availability: 180W
Performance
- Switching Capacity: 84 Gbps
- Total Non-Blocking Throughput: 42 Gbps
- Forwarding Rate: 62 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size
- ARP Entries: 6,000
- IPv4 Routes: 512
- Packet Buffer Size: 1.5 MB
Layer 3 Features
- DHCP Server (Local Networks): Yes
- DHCP Relay: Yes
- Inter-VLAN Routing (Local Networks): Yes
- Static Routing (Local Networks): Yes
Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
- IGMP Snooping & Advanced IGMP Configuration: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Port Isolation & Mirroring: Yes
- Jumbo Frames & LLDP-MED: Yes
- Voice VLAN & Loop Protection: Yes
Hardware
- PoE Ports: 12× PoE+, 4× PoE++
- Max. PoE Wattage per Port: PoE (15.4W), PoE+ (32W), PoE++ (64W)
- Max. Power Consumption: 25W (Excluding PoE), 210W (Including PoE)
- Power Supply: External AC/DC, 210W
- Supported Voltage Range: 50—54V DC
Physical & Environmental
- Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr
- Weight: 2.1 kg (4.6 lb)
- Enclosure Material: SGCC steel
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 to 90% non-condensing
- Certifications: CE, FCC, IC
