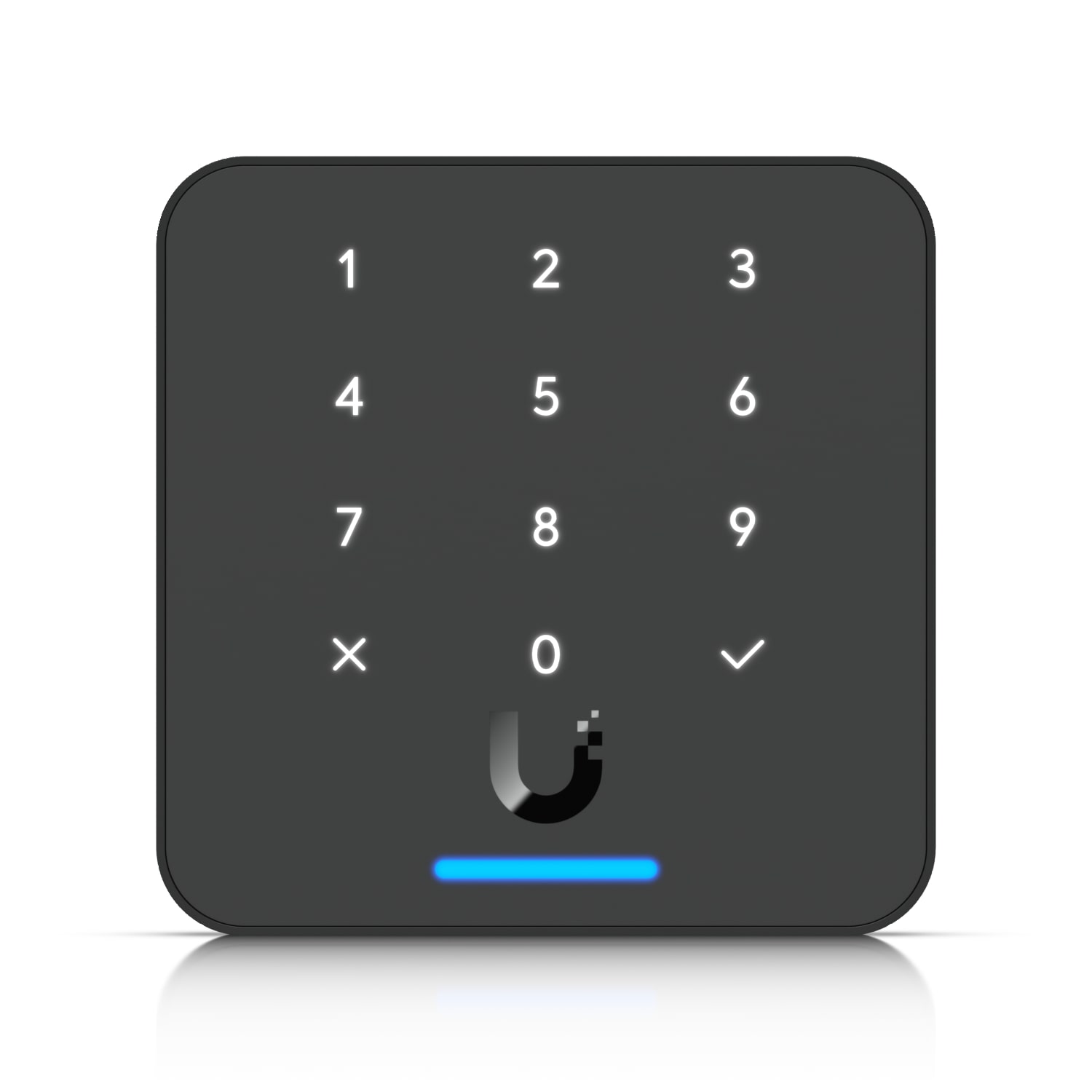

Ubiquiti Reader Flex, Black, NFC Keypad, 2Yr Warr

Ubiquiti Ubiquiti Reader Flex, Black, NFC Keypad, 2Yr Warr

Ubiquiti Reader Flex, Black, NFC Keypad, 2Yr Warr

Ubiquit Reader Flex, Black,Third-generation NFC Card Reader With A Keypad and Apple Touch Pass Support, Outdoor IP55, Power via POE, 2Yr Warr

Product Code: UA-G3-FLEX-B

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$336.12 Incl. GST

Overview of the UniFi Reader Flex - UA-G3-Flex-W

The Ubiquiti UniFi Access G3 Reader Flex Black (UA-G3-Flex-B) is a third-generation NFC card reader designed to enhance secure access control systems. Key features include:

  • Multiple Unlock Methods: Supports unlocking via keypad, NFC card, UniFi Identity mobile app, or Apple Touch Pass, providing versatile access options.
  • Integrated Keypad: Features a built-in keypad with push-button performance, usable even with moisture or most gloves, ensuring reliable operation in various conditions.
  • Apple Touch Pass Support: Allowing users to unlock doors using their Apple devices for seamless integration.
  • Weather-Resistant Design: IP55-rated enclosure ensures reliable performance in various environmental conditions, with an operating temperature range of -30 to 60°C.
  • Power over Ethernet (PoE) Connectivity: Simplifies installation by delivering both power and data through a single cable connection to the UniFi Access Hub.

Specifications for the UniFi Reader Flex - UA-G3-Flex-W

Mechanical

  • Dimensions: 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6")
  • Weight: 165 g (5.8 oz)
  • Enclosure Material: Polycarbonate, glass, aluminum alloy
  • Mounting Material: Polycarbonate, aluminum alloy
  • Mounting Options: Wall, gang box, junction box
  • Weatherproofing: IP55

Hardware:

  • Networking Interface: (1) 10/100 MbE RJ45 port
  • Connectivity:
    • BLE 4.1
    • NFC
  • Power Method: PoE,UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
  • Power Specifications:
    • Supported Voltage Range: 44–57V DC
    • Max. Power Consumption: 5W
  • Sensor: (12) Capacitive buttons
  • Speaker: (1) 8 ohm, 1W
  • LEDs: R/G/B/W
  • Button: (1) Factory-reset
  • NFC Specifications:
    • Frequency: 13.56 MHz
    • Read Range: < 30 mm
    • Supported Technologies:
      • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
      • MIFARE Classic / MIFARE DESFIRE
      • Sony FeliCa™ (ID only)
      • NFC Forum tags T1T, T2T, T3T, T4T, and T5T
      • ECP 2.0
  • Operating Environment: Outdoor use
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 90% noncondensing
  • Software Information:
  • UL 294 Level:
    • Destructive Attack: Level I
    • Line Security: Level I
    • Endurance: Level I
    • Standby Power: Level I
  • UL 294 Statement:
    • Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    • The equipment complies with the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade I
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  • Document Number and Revision: UA-G3-Flex V01

Software:

  • Management Application: UniFi Access (Version 3.0.15 and later)
