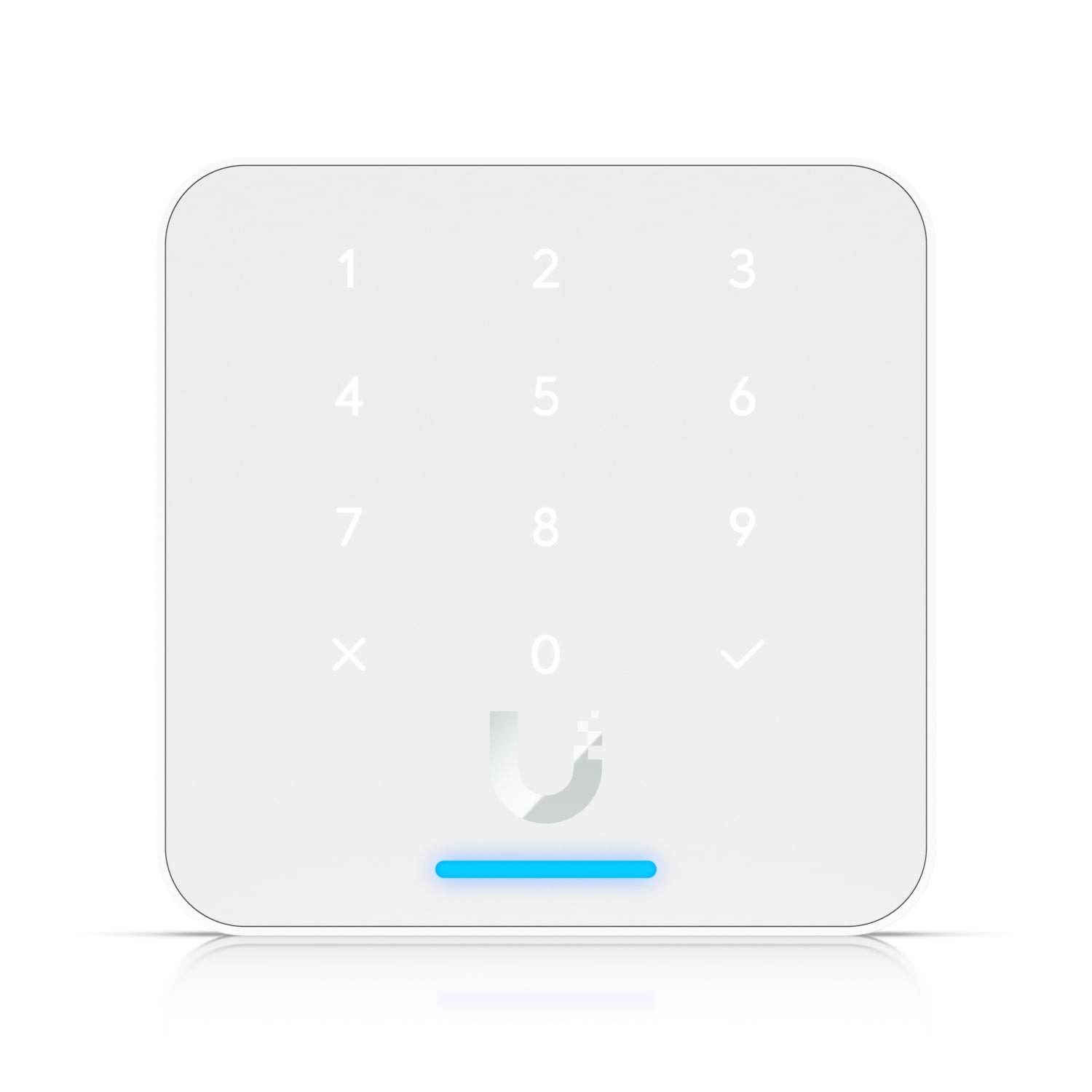

Ubiquiti Reader Flex, White, NFC Keypad, 2Yr Warr

Ubiquiti Ubiquiti Reader Flex, White, NFC Keypad, 2Yr Warr

Ubiquiti Reader Flex, White, NFC Keypad, 2Yr Warr

Ubiquit Reader Flex, White ,Third-generation NFC Card Reader With A Keypad and Apple Touch Pass Support, Outdoor IP55, Power via POE, 2Yr Warr

Product Code: UA-G3-FLEX-W

Availability: In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)

Warranty: 1 year

$308.00 Incl. GST

Overview of the Reader Flex - UA-G3-Flex-W

The UA-G3-Flex-W, also known as the Reader Flex, is a third-generation NFC card reader with a keypad and Apple Touch Pass support. Key features include:

  • NFC Card Reader: Supports secure access control using NFC cards.
  • Integrated Keypad: Allows for PIN-based entry, enhancing security.
  • Apple Touch Pass Support: Enables users to access secured areas using Apple devices.

Specifications for the Reader Flex - UA-G3-Flex-W

Mechanical

  • Dimensions: 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6")
  • Weight: 165 g (5.8 oz)
  • Enclosure Material: Polycarbonate, glass, aluminium alloy
  • Mounting Material: Polycarbonate, aluminum alloy
  • Mounting: Wall, gang box, junction box
  • Weatherproofing: IP55

Hardware

  • Networking Interface: (1) 10/100 MbE RJ45 port
  • Connectivity: BLE 4.1, NFC
  • Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
  • Supported Voltage Range: 44–57V DC
  • Max. Power Consumption: 5W
  • Sensor: (12) Capacitive buttons
  • Speaker: (1) 8 ohm, 1W
  • LEDs: R/G/B/W
  • Button: (1) Factory-reset
  • NFC Frequency: 13.56 MHz
  • NFC Read Range: < 30 mm
  • NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only), NFC Forum tags T1T, T2T, T3T, T4T, and T5T, ECP 2.0
  • Operating Environment : Outdoor use
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 90% non-condensing
  • Software Information:Software Version can be checked at UniFi Access
  • UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
  • UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • PoE Cabling Requirements Recommended Cabling: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  • CAN/ULC-60839-11-1 Grade: Grade assignment: I
  • CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  • Document Information: UA-G3-Flex V01
  • Software Management Application: UniFi Access: Version 3.0.15 and later
