ASUS FA506II Replacement Parts

Available Model Variants

For the most accurate fit, select your exact model variant below.

ASUS FA506II-AL015T
ASUS FA506II-HN138T

Replacement Parts for ASUS FA506II

Showing parts associated with the FA506II base model. Some parts may vary between model variants.

Keywords
ALL (70)
ABSORBER (2)
AC ADAPTERS (4)
ADHESIVE (2)
BATTERY (1)
BOTTOM CASE (1)
BRACKET (1)
CABLE (10)
CAMERA (1)
FAN (2)
FOIL (3)
HINGE (4)
KEYBOARD MODULE (1)
LCD BEZEL (1)
LCD COVER (2)
LCD PANEL (1)
MAIN BOARD (2)
MEMORY (2)
MYLAR (3)
POWER CORD (3)
SCREW (10)
SMALL BOARD (1)
SPEAKER (3)
SSD (4)
TAPE (2)
THERMAL (2)
USB BOARD (1)
WLAN (1)

13NR03L0T06011

 ABSORBER
Original ASUS FA506IV MB RAM ABSORBER LONGYANG

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0T16011

 ABSORBER
Original ASUS FA506IV SSD ABSORBER LONGYANG

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

0A001-00081400

 AC ADAPTERS
Original ASUS 150W AC Adapter, 20V, 3-Pin, 6mm Round Connector, Delta ADP-150CH BA (A02)



This part is replaced by 0A001-00083400

0A001-00081800

 AC ADAPTERS
Original ASUS 150W AC Adapter, 20V, 3-Pin, 6mm Round Connector, Chicony A18-150P1A (CL:B) A02



This part is replaced by 0A001-00083400

0A001-00083200

 AC ADAPTERS
Original ASUS 150W AC Adapter, 20V, 3-Pin, 6mm Round Connector, Delta ADP-150CH BA (A05)



This part is replaced by 0A001-00083400

0A001-00083400

 AC ADAPTERS
Original ASUS 150W AC Adapter, 20V, 3-Pin, 6mm Round Connector, Chicony A18-150P1A (CL:B) A07

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$121.00 Incl. GST

13NR03L0T14011

 ADHESIVE
Original ASUS FA506IV LCD BEZEL ADHESIVE

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0T14031

 ADHESIVE
Original ASUS FA506IV LCD BEZEL ADHESIVE TECH SUN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

0B200-02910200

 BATTERY
Original ASUS 3 Cell Battery, 48Wh, 11.4V, Li-Polymer, Type B31N1726-1, ICP596080C, 3S1P, FX504GD

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$99.00 Incl. GST

90NR03M1-R7D010

 BOTTOM CASE
Original ASUS FA506II-1A BASE CASE 48W ASSY

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$55.00 Incl. GST

13NR03L0M03011

 BRACKET
Original ASUS FA506IV HDD BRACKET WAN CHENG

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14005-03400000

 CABLE
Original ASUS FA506IV EDP CABLE FHD 40P ASAP/LA05EM634-1H

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14005-03400200

 CABLE
Original ASUS FA506IV EDP CABLE FHD 40P FIT/WDLCFX5-1J002-DH

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14008-03930000

 CABLE
Original ASUS FX506LI WIFI ANTENNA INPAQ/WA-P-LBLB-04-073

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14008-03930100

 CABLE
Original ASUS FX506LI WIFI ANTENNA AWAN/AUP6Y-200005

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14010-00760000

 CABLE
Original ASUS FA506IV TP-MB FFC (142.5MM,8P,60V,3A) QCI/DEFC1429040

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14010-00760100

 CABLE
Original ASUS FA506IV LED-MB FFC (65MM,10P,60V,3A) QCI/DEFC0659077

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14016-00700200

 CABLE
Original ASUS FA506IV CABLE MB TO USB DB W/TAPE ASAP/LA05WH849-1H

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14020-00260000

 CABLE
Original ASUS FA506IV HDD CONN FFC (10/15P,60V,3A) QCI/DD0BKXHD011 72.5MM

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14026-00160000

 CABLE
Original ASUS FX505GE DC JACK CABLE FOXCONN/WDMDF55-AJ001-DH

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14026-00180100

 CABLE
Original ASUS FA506IV DC JACK CABLE 6PIN FIT/WDMD506-AJ002-DH

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

04081-00324500

 CAMERA
Original ASUS CAMERA HD FIX 3.3V ARRAYMIC CL SUPREME/AHDFN050

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$11.00 Incl. GST

13NR00S0M09011

 FAN
Original ASUS FX505GE THERMAL CPU FAN FORCECON

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR00S0M10011

 FAN
Original ASUS FX505GE THERMAL GPU FAN FORCECON

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0T17011

 FOIL
Original ASUS FA506IV BATTERY AL FOIL SUNYIEH

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0T17031

 FOIL
Original ASUS FA506IV BATTERY AL FOIL TECH SUN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0T18011

 FOIL
Original ASUS FA506IV SSD AL FOIL EASYRUN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0M04011

 HINGE
Original ASUS FA506IV HINGE L IMR

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0M04021

 HINGE
Original ASUS FA506IV HINGE L IMR

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0M05011

 HINGE
Original ASUS FA506IV HINGE R IMR

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0M05021

 HINGE
Original ASUS FA506IV HINGE R IMR

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

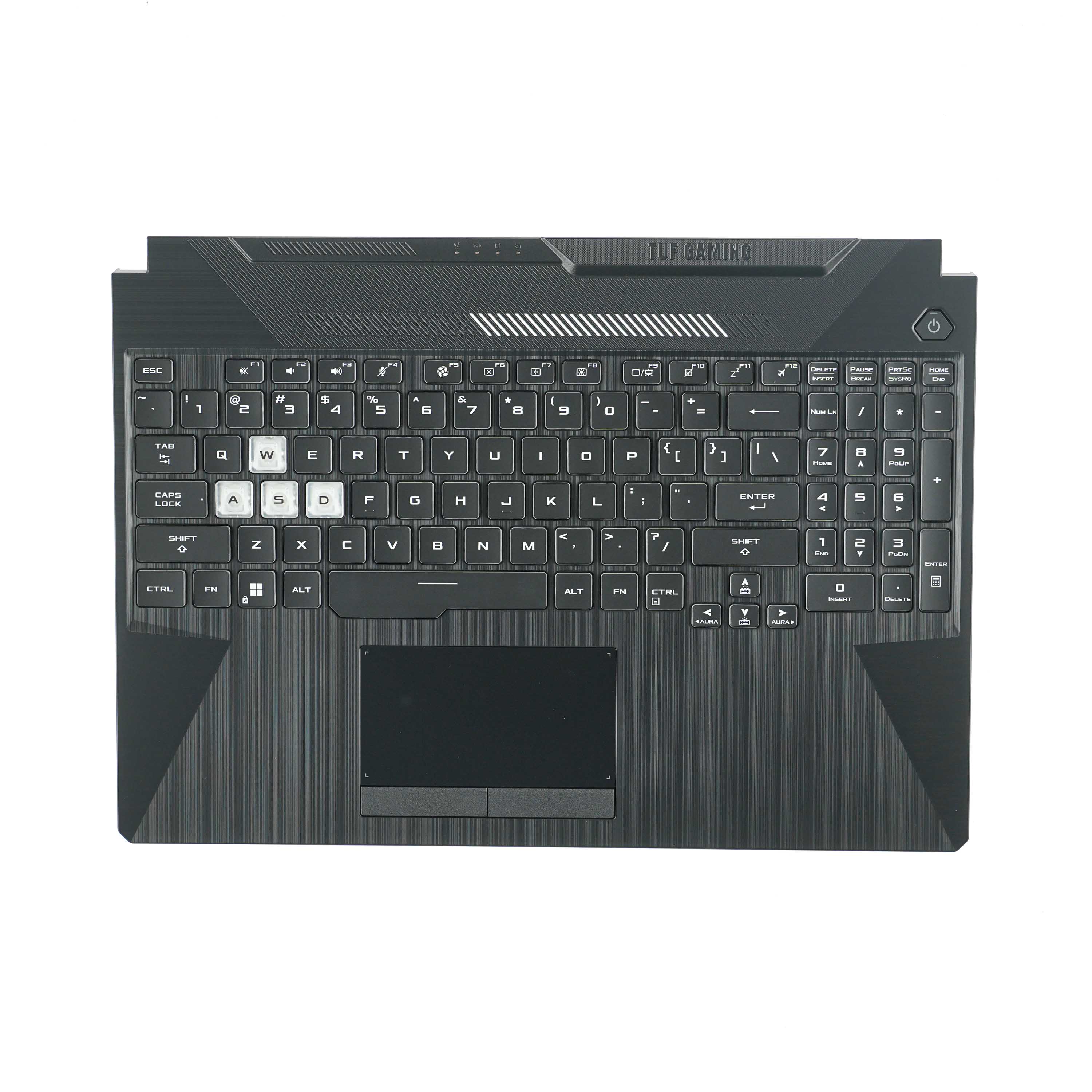

90NR03M1-R31US0

 KEYBOARD MODULE
Original ASUS English (US Layout) RGB Backlit Keyboard Module for FA506II-1A

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$113.15 Incl. GST

90NR03L0-R7B011

 LCD BEZEL
Original ASUS FA506IV LCD BEZEL ASSY CHANGTEN/TASUN NEW

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

90NR03L2-R7A010

 LCD COVER
Original ASUS FA506IV-1B LCD COVER ASSY CHANGTENG

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$55.00 Incl. GST

90NR03L2-R7A020

 LCD COVER
Original ASUS FA506IV-1B LCD COVER ASSY INX PANEL CHANGTENG/TASUN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$55.00 Incl. GST

18010-15671200

 LCD PANEL
Original ASUS 15.6-inch Full HD LCD Screen Panel, eDP, Panda LM156LF2F01

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$198.00 Incl. GST

90NR03M0-R00010

 MAIN BOARD
Original ASUS FA506II MB. 0M/R5-4600H (V4G)

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$1,024.57 Incl. GST

90NR03M0-R00020

 MAIN BOARD
Original ASUS FA506II MB. 0M/R7-4800H (V4G)

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$1,115.72 Incl. GST

03A08-00052400

 MEMORY
Original ASUS DDR4 3200 SO-D 8G 260P SAMSUNG/M471A1K43DB1-CWE

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$138.28 Incl. GST

03A08-00062100

 MEMORY
Original ASUS DDR4 3200 SO-D 16GB 260P MICRON/MTA16ATF2G64HZ-3G2J1

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$213.72 Incl. GST

13NR00I0L13011

 MYLAR
Original ASUS FX504GE BEZEL COSMETIC MYLAR SUNYIEH

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR00I0L13021

 MYLAR
Original ASUS FX504GE BEZEL COSMETIC MYLAR TIANLIDA

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0L55011

 MYLAR
Original ASUS FA506IV INS MYLAR MB EC/IC QCI/FCBKX021010

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14009-00025800

 POWER CORD
Original ASUS AC POWER CORD SAA/3C L:0.9M WELLSHIN/WS-015+083(5222-0098)

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14009-00080900

 POWER CORD
Original ASUS AC POWER CORD SAA/3C L:0.9M I-SHENG/V5I6B304W1209002

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

14009-00154300

 POWER CORD
Original ASUS AC POWER CORD SAA/3C L:0.9M HONGLIN/200-18179

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-40802070

 SCREW
Original ASUS SCREW M1.6*2.5L(3.5,0.4)(K) #0 KL MACHINE NY B-ZN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-72504010

 SCREW
Original ASUS SCREW M2*4L (4.3,0.5) (K) W-NI KUAOLENG,MACHINE NY #1

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-728030B0

 SCREW
Original ASUS SCREW M2*3L (5.6,0.8) (K) #1 KL MACHINE NY B-ZN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-B2503000

 SCREW
Original ASUS SCREW M2.5*3.5L(4.5,0.5) (K)#1 KUAOLENG,MACHINE NY W-NI

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-B280510A

 SCREW
Original ASUS SCREW M2.5*5.5L(4.5,0.8) (K)#1 SCREWTECK MACHINE NY B-ZN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-B2811000

 SCREW
Original ASUS SCREW M2.5*11L(4.5,0.8) (K) #1 KL MACHINE NY B-ZN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-B281100A

 SCREW
Original ASUS SCREW M2.5*11L(4.5,0.8) (K) #1 SCREWTECK MACHINE NY B-ZN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-B281400A

 SCREW
Original ASUS SCREW M2.5*14L(4.5,0.8) (K) #1 SCREWTECK NY B-ZN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13050-B2B06200

 SCREW
Original ASUS SCREW M2.5*2.5L+3.5 (4.5,0.8) KL NY B-(ZN-NI) (K) #1

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13GMBK3D140Z-1

 SCREW
Original ASUS SCREW M2.5*14L (K) B-ZN NY #1 KUAOLENG;MACHINE

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

90NR03M0-R10010

 SMALL BOARD
Original ASUS FA506II LED BD.

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

04072-03610000

 SPEAKER
Original ASUS FA506IV SPEAKER HONGLIN/320-10244

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

04072-03610300

 SPEAKER
Original ASUS FA506IV SPEAKER ASAP/NB02-000022-021H

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

04072-03610400

 SPEAKER
Original ASUS FA506IV SPEAKER JIANGSU YUCHENG/QT8023-C-1

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

03B03-00067200

 SSD
Original ASUS SSD P3X4(VAL) 512GB M2 2280 NVME INT/SSDPEKNW512G8/002C/976802

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$216.85 Incl. GST

03B03-00067300

 SSD
Original ASUS SSD P3X4(VAL) 512GB M2 2280 NVME INT/SSDPEKNW512G8/002C/981634

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$216.85 Incl. GST

03B03-00067900

 SSD
Original ASUS SSD P3X4 512GB M2 2280 NVME INT/SSDPEKNW512G8/002C/999CG3

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$216.85 Incl. GST

03B03-00069100

 SSD
Original ASUS SSD P3X4 512GB M2 2280 NVME(F) KST/OM8PCP3512F-AB

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$201.15 Incl. GST

13NR03L0T09011

 TAPE
Original ASUS FA506IV LCD COVER TAPE

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03L0T09031

 TAPE
Original ASUS FA506IV LCD COVER TAPE TECH SUN

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

13NR03M0AM0101

 THERMAL
Original ASUS FA506II THERMAL MODULE ASSY

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$33.00 Incl. GST

13NR03M0AM0102

 THERMAL
Original ASUS FA506II THERMAL MODULE ASSY COOLERMASTER

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$33.00 Incl. GST

90NR03M0-R10020

 USB BOARD
Original ASUS FA506II USB BD.

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$7.85 Incl. GST

0C011-00211000

 WLAN
Original ASUS WIFI5 AC+BT5.0(2*2)M.2 2230 AZWAVE/AW-CB375NF M.2

Availability: Special Order (Estimated Dispatch 1-2 Weeks Once Order Placed)

Warranty: 12 months

$14.15 Incl. GST
