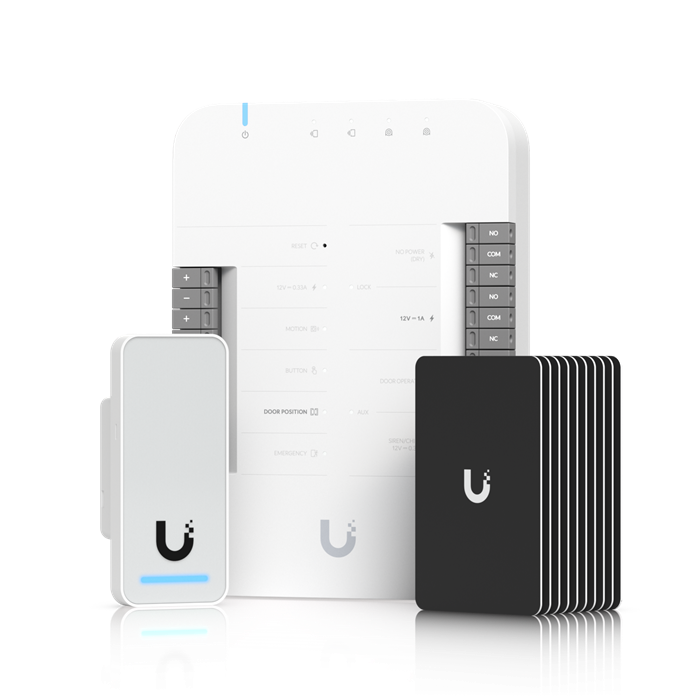

Ubiquiti UniFi Access Gen 2 Starter Kit, UA-G2-Sk
Ubiquiti UniFi Access Gen 2 Starter Kit, UA-G2-Sk
The Ubiquiti UniFi Access Gen 2 Starter Kit (UA-G2-SK) is the perfect entry point for setting up secure and efficient access control systems. This kit requires the UniFi Dream Machine Pro and is supported by a 2-year warranty, making it an essential choice for modern security needs.
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Description:
The UA-G2-SK is a second-generation UniFi Access starter kit that includes everything needed to set up a secure access control system. It features improved hardware and enhanced security features for managing entry points.
Specifications:
Mechanical
- Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Weight: 363 g (12.8 oz)
- Enclosure material: Polycarbonate
- Mounting material: Polycarbonate
Hardware
- Networking interface: (5) 10/100/1000 Base-T
- Power method: PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950/62368 LPS/PS2 PSU
- Max. power consumption: Without PoE output: 30W; With PoE output: 50W
- PoE input: 50V DC, 1A
- PoE output: PoE passthrough, (4) PoE, 50V DC, total 20W
- Button: (1) Factory-reset
- Digital input: Request to exit/request to enter/remote release/door position sensor
- Dry output relay: Lock: 30V DC, 1A; Aux: 30V DC, 1A
- Powered output relay: Lock: 12V DC, 1A; Aux: 12V DC, 0.33A; 12V DC, 0.33A
- Operating environment: Indoor use only
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
UL 294 level
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
UL 294 statement
- Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
- The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number and issue date and/or revision level
Wiring Information
Wiring Gauge Requirements (AWG)
| Total Length to Device |
Output load current at 12V DC |
|
100mA |
250mA |
500mA |
1A |
| 6.1 m (20 ft) |
22 |
22 |
22 |
18 |
| 15.2 m (50 ft) |
22 |
22 |
22 |
18 |
| 30.5 m (100 ft) |
22 |
22 |
18 |
18 |
PoE cabling requirements
- The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
LEDs
- PoE in
- Steady white: Pending adoption
- Steady blue: Adopted
- Alternating white/blue: Firmware updating
- PoE out
- Blinking white: Active signal
- Input terminals
- Blinking white: Active signal
- Output relays
- Blinking white: Relay triggered
UA-G2
Mechanical
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight: 82 g (2.9 oz)
- Enclosure material: Polycarbonate, glass
- Mounting: In wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- Power method: PoE
- Supported voltage range: 48V DC
- Max. power consumption: 5W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs
- Steady white: Pending adoption
- Steady blue: Adopted
- Alternating white/blue: Firmware updating
- Strobing red: Emergency lockdown
- Steady green: Emergency evacuation
- (2) Rapid flashing blue: NFC credential authenticated
- (2) Rapid flashing red: NFC credential authentication failed
- Breathing blue: Ready to register NFC cards
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating Environment
- Outdoor use
- Ambient operating temperature: -30 to 45° C (-22 to 113° F)
- Ambient operating humidity: 5 to 90% noncondensing
Software Information
Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Information
- Document number: UA-G2/UA-G2-Black
- Version: V02
UA-Card
Mechanical
- Dimensions: 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
- Weight: 5 g (0.18 oz)
- Format: ISO 7810 ID-1
NFC Information
- NFC frequency: 13.56 MHz
- NFC technology: ISO/IEC 14443 Type A, MIFARE DESFire
- UniFi Access Proprietary Security Protocol
