Ubiquiti UniFi Access Gen 2 Pro Starter Kit, UA-G2-Sk-Pro
Ubiquiti UniFi Access Gen 2 Pro Starter Kit, UA-G2-Sk-Pro

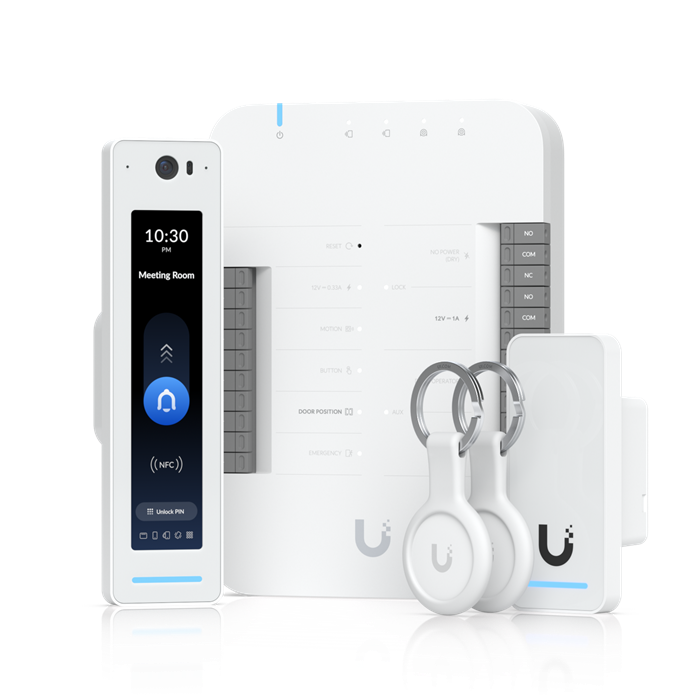

The Ubiquiti UniFi Access Gen 2 Pro Starter Kit (UA-G2-SK-PRO) is a comprehensive solution for setting up advanced access control systems. This kit requires the UniFi Dream Machine Pro and provides a reliable and secure entry point for enterprise-level access control. Backed by a 2-year warranty.
Product Code: UA-G2-SK-PRO
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Description:
The UA-G2-SK-Pro is a professional-grade access control starter kit that includes enhanced hardware for managing secure entry points. It offers advanced features such as biometric authentication and integrates seamlessly with UniFi Access systems.
Specifications:
UA-Hub-Door
Mechanical
- Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Weight: 363 g (12.8 oz)
- Enclosure material: Polycarbonate
- Mounting material: Polycarbonate
Hardware
- Networking interface: (5) 10/100/1000 Base-T
- Power method: PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950/62368 LPS/PS2 PSU
- Max. power consumption:
- Without PoE output: 30W
- With PoE output: 50W
- PoE input: 50V DC, 1A
- PoE output: PoE passthrough, (4) PoE, 50V DC, total 20W
- Button: (1) Factory-reset
- LEDs:
- System: white/blue
- Output relays: white
- Digital input: Request to exit/request to enter/remote release/door position sensor
- Dry output relay:
- Lock: 30V DC, 1A
- Aux: 30V DC, 1A
- Powered output relay:
- Lock: 12V DC, 1A
- Aux: 12V DC, 0.33A
- Operating environment: Indoor use only
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- UL 294 level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 statement: Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
- CAN/ULC-60839-11-1 Grade: Grade assignment: 1
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Document number, and issue date and/or revision level: UA-Hub-Door002, V01
Wiring Information
- Wiring gauge requirements (AWG)
- Total length to device Output load current at 12V DC
- 100mA 250mA 500mA 1A
- 6.1 m (20 ft): 22 AWG
- 15.2 m (50 ft): 22 AWG
- 30.5 m (100 ft): 22 AWG
- UACC-Cable-DoorLockRelay (18 AWG) is recommended.
PoE cabling requirements
- The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm²) for horizontal or riser cable.
LEDs
- PoE in:
- Steady blue: Adopted/device is ready
- Steady white: Pending adoption
- Blinking white/blue: Upgrading firmware
- PoE out:
- Off: Not connected or no data link
- Steady blue: Connected and data link on
UA-G2-Pro
Mechanical
- Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- Weight: 136 g (4.8 oz)
- Enclosure material: Polycarbonate, glass
- Mount material: Aluminum alloy
- Mounting: Wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) GbE RJ45 port
- Connectivity: BLE 4.2, NFC
- Power method: PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 6W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensor: Proximity sensor
- Camera: 4000 x 3000, 12 MP, 30 FPS
- View angle: H: 96.67°, V: 123.15°, D: 153.11°
- Microphone: Yes
- Speaker: (1) 4 ohm, 1.5W
- LEDs: R/G/B/W
- Flash
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating environment
- Outdoor use
- Ambient operating temperature:
- Device: -30 to 45° C (-22 to 113° F)
- Display: -10 to 45° C (14 to 113° F)
- *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
- Ambient operating humidity: 5 to 90% noncondensing
- Software information: The software version of a product can be checked at https://unifi.ui.com
- UL 294 level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
- UL 294 statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
- PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
- CAN/ULC-60839-11-1 Grade: Grade assignment: I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Document number, and issue date and/or revision level: UA-G2-Pro/UA-G2-Pro-Black, V02
LED
- System:
- Steady blue: Adopted/device is ready
- Steady white: Pending adoption
- Blinking white/blue: Upgrading firmware
- Strobing red: Emergency lockdown
UA-G2
Mechanical
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight: 82 g (2.9 oz)
- Enclosure material: Polycarbonate, glass
- Mounting: In wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- Power method: PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 5W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs: R/G/B/W
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating environment: Outdoor use
Ambient operating temperature: -30 to 45° C (-22 to 113° F)
Ambient operating humidity: 5 to 90% noncondensing
Software information: The software version of a product can be checked at https://unifi.ui.com
UL 294 level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
UL 294 statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: UA-G2/UA-G2-Black, V02
LED
- System:
- Steady blue: Adopted/device is ready
- Steady white: Pending adoption
- Blinking white/blue: Upgrading firmware
- Strobing red: Emergency lockdown
UA-Pocket
Mechanical
- Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
- Weight: 16 g (0.56 oz)
- Enclosure material: Polycarbonate, stainless steel
- Weatherproofing: IP54
Hardware
- NFC frequency: 13.56 MHz
- NFC technology: ISO/IEC 14443 Type A, MIFARE DESFire EV3 4K, UniFi Access Proprietary Security Protocol
- Ambient operating temperature: -10 to 45° C (14 to 113° F)
- Ambient operating humidity: 10 to 90% noncondensing
- Certification: CE
