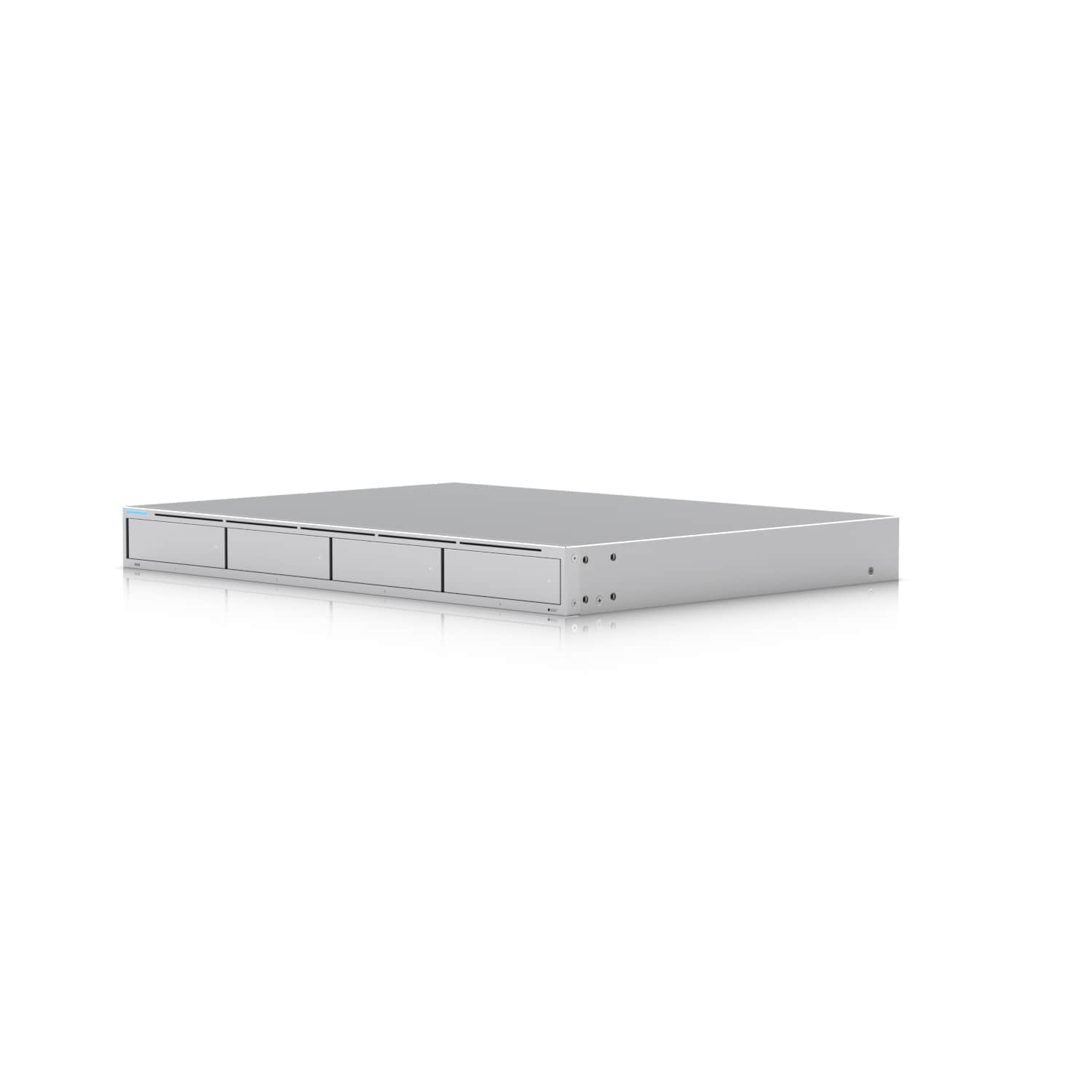

Ubiquiti UniFi Protect Network Video Recorder, UNVR
Ubiquiti UniFi Protect Network Video Recorder, UNVR
The Ubiquiti UniFi Protect Network Video Recorder (UNVR) features 4x 3.5" hard drive bays, providing up to 30 days of storage for surveillance footage. Pre-installed with UniFi Protect, this recorder is RPS compatible and offers robust security management. Comes with a 2-year warranty.
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Description:
The UniFi Network Video Recorder (UNVR) is a powerful and scalable enterprise network video recorder. It integrates with UniFi Protect to provide a centralized video surveillance solution, supporting up to 50 cameras. With built-in storage and advanced data management, the UNVR is ideal for large-scale surveillance deployments.
Specifications:
Mechanical:
- Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- Weight: Without mounting brackets: 5.1 kg (11.3 lb); With mounting brackets: 5.2 kg (11.5 lb)
- Enclosure material: SGCC steel
- Mount material: SGCC steel
Hardware:
- Management interface: Ethernet In-Band
- Networking interface: (1) GbE RJ45 port, (1) 1/10 GbE SFP+ port
- Power method: (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC, 10.43A
- Power supply: AC/DC, internal, 120W
- Supported voltage range: 100—240V AC
- Max. power consumption: 100W
- Max. power budget for Drives: 75W
- ESD/EMP protection: Air: ± 12kV, contact: ± 8kV
- Ambient operating temperature: -5 to 40° C (23 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: FCC, CE, IC
LEDs:
- System: (1) Power: blue/white
- Flashing white: bootup in progress
- Flashing blue: firmware upgrading
- Steady white: factory defaults, awaiting adoption
- Steady blue: device is adopted
- Ethernet: Green: 1 Gbps; Amber: 10/100 Mbps
- SFP+: White: 10 Gbps; Green: 1 Gbps
- HDD: White: disk detected; Amber: disk error
- RPS: Blue: ready
