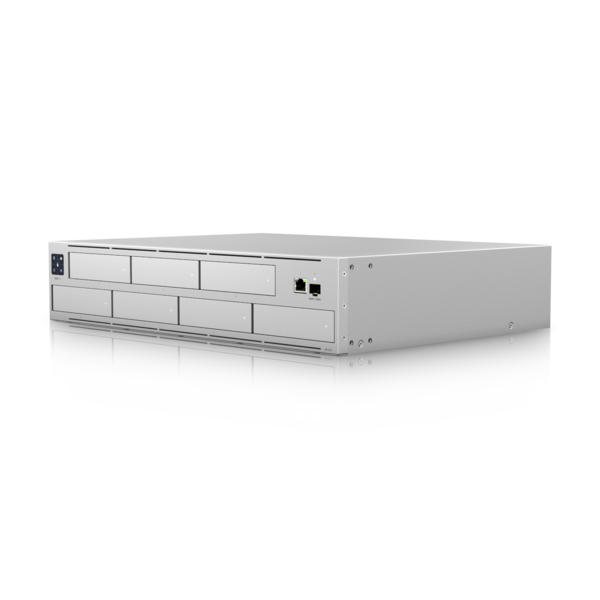

Ubiquiti UniFi Protect Network Video Recorder PRO, UNVR-Pro
Ubiquiti UniFi Protect Network Video Recorder PRO, UNVR-Pro
The Ubiquiti UniFi Protect Network Video Recorder PRO (UNVR-PRO) features seven 3.5" hard drive bays for extensive storage capabilities, supporting long-term surveillance. Pre-installed with UniFi Protect, this recorder is compatible with NHU-RPS and includes a 2-year warranty.
Availability:
In Stock with Supplier (Estimated Dispatch 1-2 Days Once Order Placed)
Description:
The UNVR-Pro is an advanced network video recorder designed for large-scale surveillance deployments. It supports up to 60 cameras and features hot-swappable drive bays, redundant power supplies, and advanced RAID configurations for enhanced reliability and data protection.
Specifications:
Mechanical
- Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
- Weight: Without mounting brackets: 9.2 kg (20.3 lb); With mounting brackets: 9.5 kg (20.8 lb)
- Enclosure material: SGCC steel
- Mount material: SGCC steel
Hardware
- Management interface: Ethernet In-Band
- Networking interface: (1) GbE RJ45 port, (1) 1/10 GbE SFP+ port
- RF interface: Bluetooth 4.1
- Power method: (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC, 13.91A
- Power supply: AC/DC, internal, 200W
- Supported voltage range: 100—240V AC
- Max. power consumption: 160W
- Max. power budget for Drives: 135W
- ESD/EMP protection: Air: ± 12kV, contact: ± 8kV
- LCM display: (1) 1.3" touchscreen
- Ambient operating temperature: -5 to 40° C (23 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: FCC, CE, IC
LEDs
- System: (1) Power: blue/white
- Flashing white: bootup in progress
- Flashing blue: firmware upgrading
- Steady white: factory defaults, awaiting adoption
- Steady blue: device is adopted
- Ethernet: Green: 1 Gbps; Amber: 10/100 Mbps
- SFP+: White: 10 Gbps; Green: 1 Gbps
- HDD: White: disk detected; Amber: disk error
- RPS: Blue: ready
