Ubiquiti UniFi Access Lock Electric, UA-Lock-Electric
Ubiquiti UniFi Access Lock Electric, UA-Lock-Electric

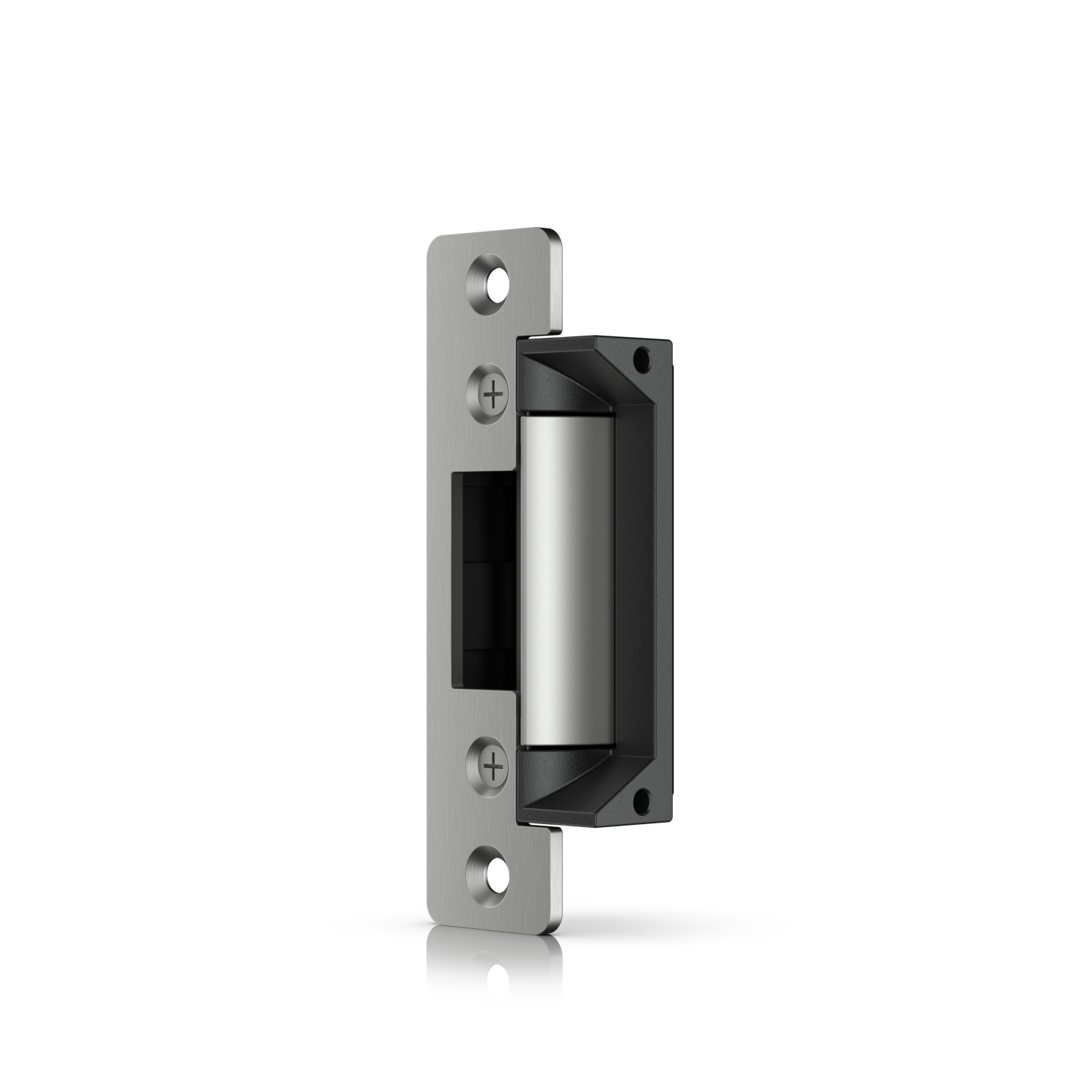

The Ubiquiti UniFi Access Lock Electric (UA-LOCK-ELECTRIC) is an integrated fail-secure electric lock that connects seamlessly to the UniFi Access Hub. It supports holding up to 1200 kg, making it ideal for secure access control in various environments. Backed by a 2-year warranty for reliable performance.
Product Code: UA-LOCK-ELECTRIC
For price and availability, click request quote
Contact our Enterprise Sales Team with your request on 1300 134 324 or email us at [email protected]
Description:
The UA-Lock-Electric is an electrically powered lock designed for use with UniFi Access systems. It offers secure and reliable door locking mechanisms, compatible with a variety of access control methods.
Specifications:
Mechanical
- Dimensions:
- Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4")
- Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1")
- Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")
- Weight:
- Lock body: 185 g (6.5 oz)
- Short front plate: 50 g (1.8 oz)
- Long front plate: 130 g (4.6 oz)
- Enclosure material:
- Lock body: zinc alloy
- Front plate/latches: stainless steel
Hardware
- Voltage: 12V DC
- Current power: 400mA ±10%
- Wiring connection: Connect the two screw terminals separately to powered lock relay on UA-Hub: NO, COM
- Lock type: Fail secure lock, Single door
- Lock holding force: 1,200 kg (2,645 lb)
- Suitability: Wooden, steel, aluminum door
- Screw terminal: + and -
- Ambient operating temperature: -10 to 45° C (14 to 113° F)
- Ambient operating humidity: 5 to 90% noncondensing
- Certifications: FCC, IC, CE
